Used 2006 TOYODA FA-800 4-AXIS | Horizontal Machining Centers
Have one to sell?
ConditionUsed
1 available

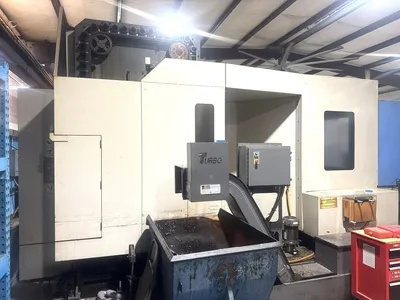

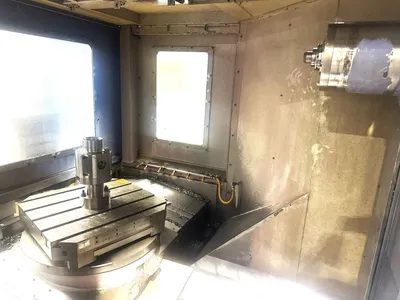

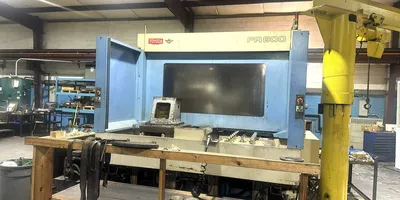

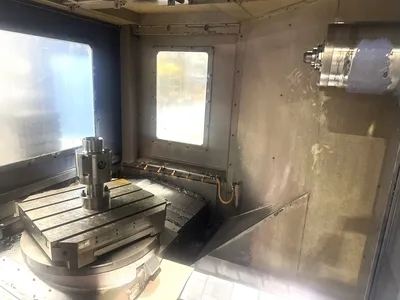

2006 Toyoda FA-800 CNC Horizontal Machining Center
with Fanuc 18i-MB Control and all Options.
* Special Pricing as Need Floorspace New Project!
Main Specifications:
(2) 31.5" Pallets

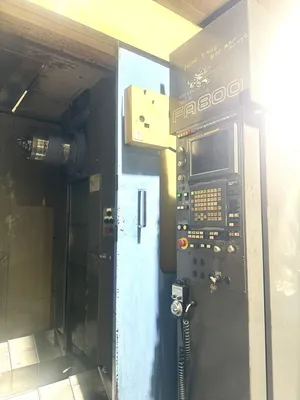

Fanuc 18i-MB Control
High Pressure Coolant through the spindle
Coolant Tank system
Lift Up Heavy-Duty Chip conveyor
Pallet Size: 31.5” X 31.5”
Max. Pallet Weight: 5511 Lbs.
Axis Travels X/Y/Z: 53.1” x 45.2” x 45.2”
Rapid Feedrate (X/Y/Z): 944 I.P.M.
Pallet rotation in loading station: 1°
Spindle Motor (HP): 40 H.P.
Spindle RPM: 35-6000
Spindle Taper: Cat 50
Number of Tools in ATC: 60
Max Part Size Swing Diameter: 51.18”
* Full Photo Set & Operational Videos in Process
* Please Email More Photos on Interest * New Listing!
2006 Toyoda FA-800 CNC Horizontal Machining Center
with Fanuc 18i-MB Control and all Options.
Main Specifications:
(2) 31.5" Pallets
Fanuc 18i-MB Control
High Pressure Coolant through the spindle
Coolant Tank system
Lift Up Heavy-Duty Chip conveyor
Pallet Size: 31.5” X 31.5”
Max. Pallet Weight: 5511 Lbs.
Axis Travels X/Y/Z: 53.1” x 45.2” x 45.2”
Rapid Feedrate (X/Y/Z): 944 I.P.M.
Pallet rotation in loading station: 1°
Spindle Motor (HP): 40 H.P.
Spindle RPM: 35-6000
Spindle Taper: Cat 50
Number of Tools in ATC: 60
Max Part Size Swing Diameter: 51.18”
* Full Photo Set & Operational Videos in Process
* Please Email More Photos on Interest * New Listing!
2006 Toyoda FA-800 CNC Horizontal Machining Center
with Fanuc 18i-MB Control and all Options.
* Special Pricing as Need Floorspace New Project!
Main Specifications:
(2) 31.5" Pallets
Fanuc 18i-MB Control
High Pressure Coolant through the spindle
Coolant Tank system
Lift Up Heavy-Duty Chip conveyor
Pallet Size: 31.5” X 31.5”
Max. Pallet Weight: 5511 Lbs.
Axis Travels X/Y/Z: 53.1” x 45.2” x 45.2”
Rapid Feedrate (X/Y/Z): 944 I.P.M.
Pallet rotation in loading station: 1°
Spindle Motor (HP): 40 H.P.
Spindle RPM: 35-6000
Spindle Taper: Cat 50
Number of Tools in ATC: 60
Max Part Size Swing Diameter: 51.18”
* Full Photo Set & Operational Videos in Process
* Please Email More Photos on Interest * New Listing!
Imperial
| X | 51.1" |
| Y | 45.2" |
| Z | 45.2" |
| Power | 40 hp |
| RPM | 6,000 RPM |
| # ATC | 60 |
| Taper | Cat 50 Taper |
| Pallet-W | 31.5" |
| Pallet-L | 31.5" |
| # Axis | 4 |
2006 Toyoda FA-800 CNC Horizontal Machining Center
with Fanuc 18i-MB Control and all Options.
Main Specifications:
(2) 31.5" Pallets
Fanuc 18i-MB Control
High Pressure Coolant through the spindle
Coolant Tank system
Lift Up Heavy-Duty Chip conveyor
Pallet Size: 31.5” X 31.5”
Max. Pallet Weight: 5511 Lbs.
Axis Travels X/Y/Z: 53.1” x 45.2” x 45.2”
Rapid Feedrate (X/Y/Z): 944 I.P.M.
Pallet rotation in loading station: 1°
Spindle Motor (HP): 40 H.P.
Spindle RPM: 35-6000
Spindle Taper: Cat 50
Number of Tools in ATC: 60
Max Part Size Swing Diameter: 51.18”
* Full Photo Set & Operational Videos in Process
* Please Email More Photos on Interest * New Listing!
