Used 2009 TOYODA FV1680/50 | CNC Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

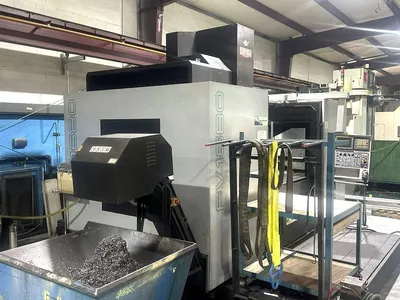

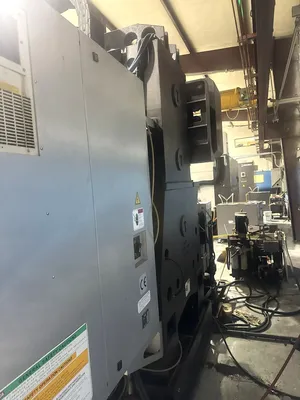

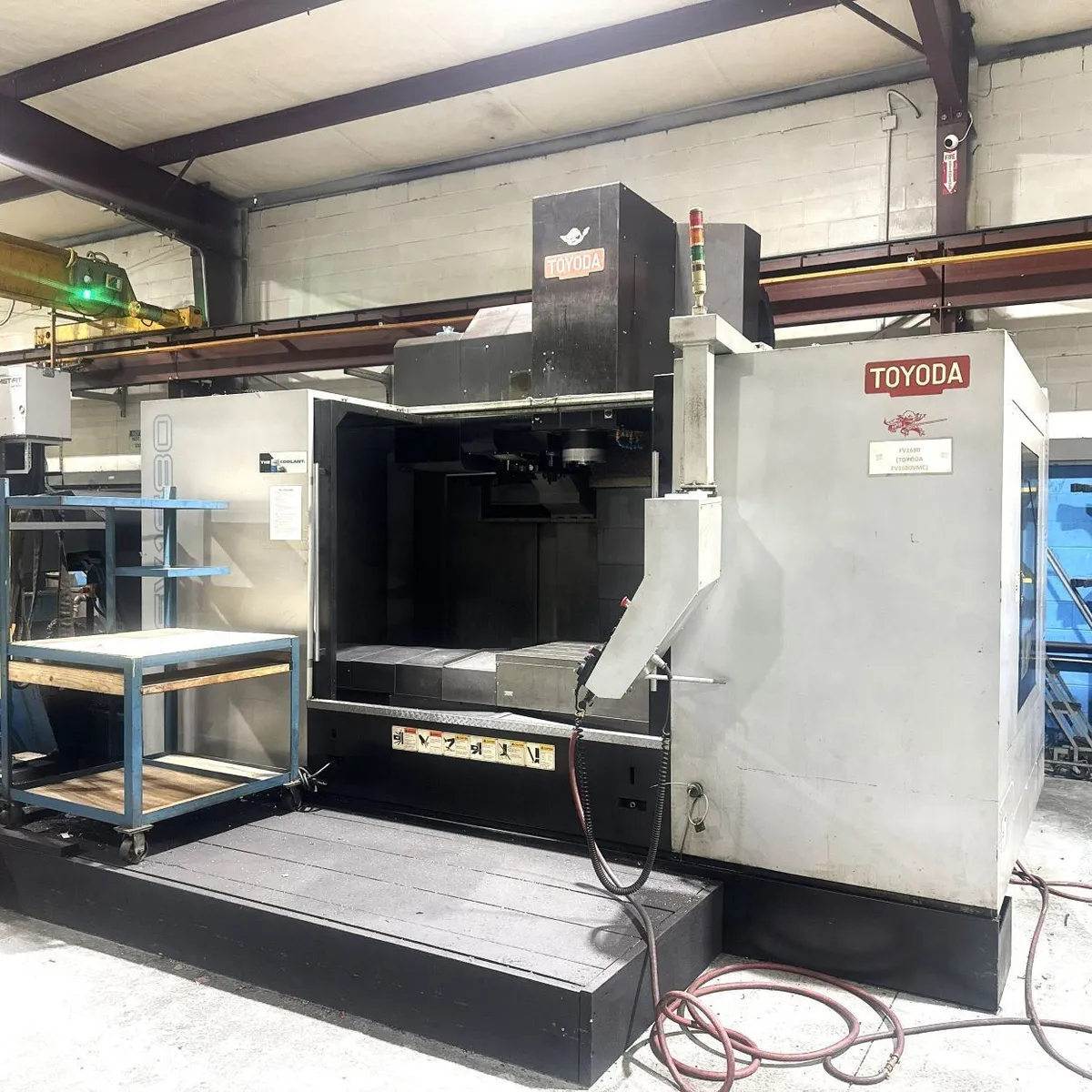

2009 TOYODA FV-1680 CNC Vertical Machining Center w/Full Forth Axis

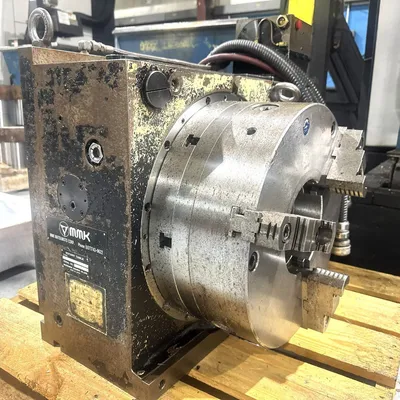

MMK Rotary Table, Fanuc 18iMB
* This is a Good Murphy Machinery Customer Selling from Shop.!
* Full Photo Set & Videos in Process!
2009 TOYODA FV-1680 CNC Vertical Machining Center w/Full Forth Axis
MMK Rotary Table, Fanuc 18iMB
* This is a Good Murphy Machinery Customer Selling from Shop.!
* Full Photo Set & Videos in Process!
Specifications:
Table Size 68" x 31.5"
Max. Table Load Capacity 4,400 Lbs.
X- Axis Travel 63"
Y-Axis Travel 31.5"
Z-Axis Travel 31.5"
Spindle Speed (2 Speed Geared Head) 6,000 RPM
Spindle Motor 35 HP
Spindle Taper CT#50
Auto Tool Change Capacity 30 ATC
Approx. Machine Weight 35,273 Lbs.
Equipped With:
Fanuc 18i-MB, Box Guide ways, Spindle Chiller, Chip Augers, Chip Conveyor,
CTS, High Pressure Coolant
Special Offered Pricing: Please Email Request for Quotations.
Sincerely,
Mark Murphy
markmurphy@murphymachinery.com
2009 TOYODA FV-1680 CNC Vertical Machining Center w/Full Forth Axis
MMK Rotary Table, Fanuc 18iMB
* This is a Good Murphy Machinery Customer Selling from Shop.!
* Full Photo Set & Videos in Process!
Imperial
| X | 63" |
| Y | 31.5" |
| Z | 31.5" |
| Power | 35 hp |
| RPM | 6,000 RPM |
| # ATC | 30 |
| Taper | Cat 50 Taper |
| Table-W | 31.5" |
| Table-L | 68.9" |
| # Axis | 4 |
| Control | CNC (FANUC 18iMB) |
| Weight | Machine 35,273 Lbs. |
2009 TOYODA FV-1680 CNC Vertical Machining Center w/Full Forth Axis
MMK Rotary Table, Fanuc 18iMB
* This is a Good Murphy Machinery Customer Selling from Shop.!
* Full Photo Set & Videos in Process!
Specifications:
Table Size 68" x 31.5"
Max. Table Load Capacity 4,400 Lbs.
X- Axis Travel 63"
Y-Axis Travel 31.5"
Z-Axis Travel 31.5"
Spindle Speed (2 Speed Geared Head) 6,000 RPM
Spindle Motor 35 HP
Spindle Taper CT#50
Auto Tool Change Capacity 30 ATC
Approx. Machine Weight 35,273 Lbs.
Equipped With:
Fanuc 18i-MB, Box Guide ways, Spindle Chiller, Chip Augers, Chip Conveyor,
CTS, High Pressure Coolant
Special Offered Pricing: Please Email Request for Quotations.
Sincerely,
Mark Murphy
markmurphy@murphymachinery.com
