Used 2007 TAKUMI V15 | CNC Vertical Machining Centers
Have one to sell?
ConditionUsed
1 available

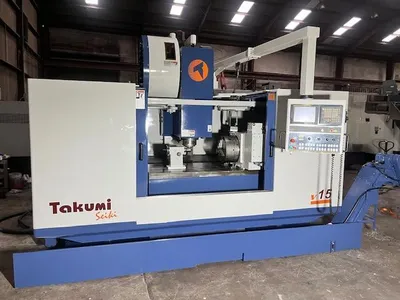

2007 TAKUMI-SEIKI V-15 HEAVY DUTY 4-BOX WAYS VERTICAL MACHINING CENTER
KEY DESIGN FEATURES & QUOTATION AND FULLY CLEANED TESTED IN STOCK
FULLY INSTALLED UNDER POWER FOR INSPECTION.
A division of Hurco Companies, Inc. Indianapolis, Indiana
Full Parts & Service Supported Excellent Support.

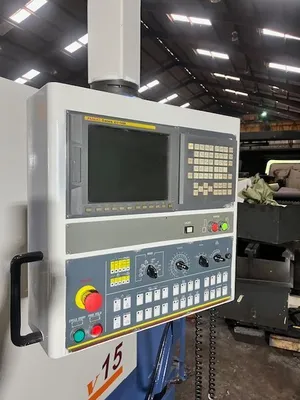

2007 Takumi V15 CNC machining center Fanuc 21i-MB CNC Control
V15 4-Axis Box-Way Machining Center, Built for heavy material removal,
production, and excellent surface finish and in Top Condition.

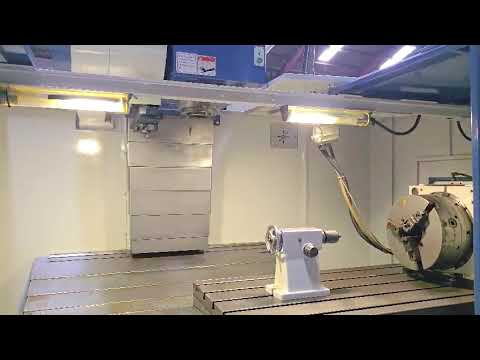

** More Photos & Operational Video's on Rotary Table Indexing!
2007 TAKUMI-SEIKI V-15 HEAVY DUTY 4-BOX WAYS VERTICAL MACHINING CENTER
KEY DESIGN FEATURES & QUOTATION AND FULLY CLEANED TESTED IN STOCK
FULLY INSTALLED UNDER POWER FOR INSPECTION.
A division of Hurco Companies, Inc.
2007 Takumi V15 CNC machining center Fanuc 21i-MB CNC Control
V15 4-Axis Box-Way Machining Center, Built for heavy material removal,
production, and excellent surface finish.
Belt or geared spindles to provide maximum torque.
Large box ways for rigid and heavy cutting.
Pre-tensioned ball screws minimize thermal growth and improve accuracy.
Direct-coupled motors increase accuracy and speed.
Spindle chiller maximizes heat dissipation.
Extra-wide door openings facilitate easy loading and unloading.
Hand-scraped contact areas.
Robust, precision-machined castings.
Box-shape bed made of one-piece casting.
Integrated washdown and chip management system.
Absolute encoders ensure fast start-up.
Main Specifications
X-Axis 60" (1524 mm)
Y-Axis 30" (762 mm)
Z-Axis 28.3 in (720 mm)
Distance from Spindle Nose to Table
5.91 ~ 34.3 in (150 ~ 870 mm) Spindle Speed 6000 rpm
Spindle Power 25 HP (18.5 KW)
Spindle Taper CAT 50
Peak Spindle Torque
437.2 ft lb (592.76 Nm)
Through-Spindle Coolant 30 bar / 435 psi
Feed Rates
Rapid Traverse (X/Y/Z) 708 x 708 x 630 ipm (18 x 18 x 16 m/min)
Cutting Feed Rate 0.04 ~ 196.85 ipm (1 ~ 5, 000 mm/min)

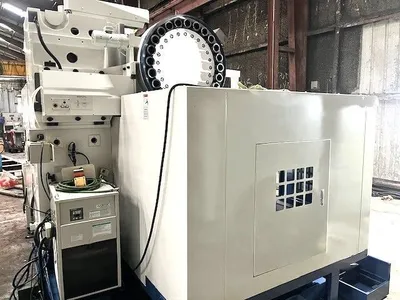

Automatic Tool Changer
ATC Type Swing Arm
Magazine Capacity 24 Tools
Max. Tool Diameter Next pocket empty 4.33 / 8.66 in (110 / 220 mm)
Max. Tool Length 11.81 in (300 mm)
Max. Tool Weight 33 Lbs (15 kg)
Tool Shank CAT 50 Taper
Space & System Requirements
Machine Net Weight 30865 lbs (14000 kg)
Electrical Power Consumption 35 KVA
Pneumatic Pressure 5 CFM @ 85-115 psi (0.14m3 /min) @ 6-8 bar
Operating Dimensions
275.59 x 220.47 x 128.19 in (7000 mm x 5600 mm x 3256 mm)
Options Installed & Included:

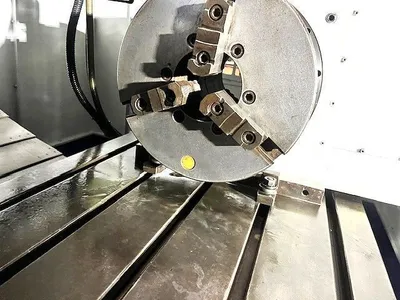

MMK 6.5" Thru Hole Full-Forth Axis 15" Rotary Table with
Adjustable Tru-Set Scroll Chuck on Faceplate.
www.takumiusa.com
I thank you for your review and consideration and machine is top condition
ready for inspection and offer machine prep & rigging reasonable trucking
delivery to your shop arrangements.
Sincerely,
Mark Murphy
Murphy Machinery
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Website: www.murphymachinery.com
Email: markmurphy@murphymachinery.com
2007 TAKUMI-SEIKI V-15 HEAVY DUTY 4-BOX WAYS VERTICAL MACHINING CENTER
KEY DESIGN FEATURES & QUOTATION AND FULLY CLEANED TESTED IN STOCK
FULLY INSTALLED UNDER POWER FOR INSPECTION.
A division of Hurco Companies, Inc. Indianapolis, Indiana
Full Parts & Service Supported Excellent Support.
2007 Takumi V15 CNC machining center Fanuc 21i-MB CNC Control
V15 4-Axis Box-Way Machining Center, Built for heavy material removal,
production, and excellent surface finish and in Top Condition.
** More Photos & Operational Video's on Rotary Table Indexing!
Imperial
| X | 60" |
| Y | 30" |
| Z | 28.35" |
| Power | 24.8 hp |
| RPM | 6,000 RPM |
| # ATC | 24 |
| Taper | CAT/BT 50 |
| Table-W | 29.92" |
| Table-L | 62.99" |
| # Axis | 3 |
| Control | CNC (Fanuc 21i-MB) |
| Dimensions | Operating Dimensions 275.59 x 220.47 x 128.19 |
| Weight | 30,865 Lbs. |
2007 TAKUMI-SEIKI V-15 HEAVY DUTY 4-BOX WAYS VERTICAL MACHINING CENTER
KEY DESIGN FEATURES & QUOTATION AND FULLY CLEANED TESTED IN STOCK
FULLY INSTALLED UNDER POWER FOR INSPECTION.
A division of Hurco Companies, Inc.
2007 Takumi V15 CNC machining center Fanuc 21i-MB CNC Control
V15 4-Axis Box-Way Machining Center, Built for heavy material removal,
production, and excellent surface finish.
Belt or geared spindles to provide maximum torque.
Large box ways for rigid and heavy cutting.
Pre-tensioned ball screws minimize thermal growth and improve accuracy.
Direct-coupled motors increase accuracy and speed.
Spindle chiller maximizes heat dissipation.
Extra-wide door openings facilitate easy loading and unloading.
Hand-scraped contact areas.
Robust, precision-machined castings.
Box-shape bed made of one-piece casting.
Integrated washdown and chip management system.
Absolute encoders ensure fast start-up.
Main Specifications
X-Axis 60" (1524 mm)
Y-Axis 30" (762 mm)
Z-Axis 28.3 in (720 mm)
Distance from Spindle Nose to Table
5.91 ~ 34.3 in (150 ~ 870 mm) Spindle Speed 6000 rpm
Spindle Power 25 HP (18.5 KW)
Spindle Taper CAT 50
Peak Spindle Torque
437.2 ft lb (592.76 Nm)
Through-Spindle Coolant 30 bar / 435 psi
Feed Rates
Rapid Traverse (X/Y/Z) 708 x 708 x 630 ipm (18 x 18 x 16 m/min)
Cutting Feed Rate 0.04 ~ 196.85 ipm (1 ~ 5, 000 mm/min)
Automatic Tool Changer
ATC Type Swing Arm
Magazine Capacity 24 Tools
Max. Tool Diameter Next pocket empty 4.33 / 8.66 in (110 / 220 mm)
Max. Tool Length 11.81 in (300 mm)
Max. Tool Weight 33 Lbs (15 kg)
Tool Shank CAT 50 Taper
Space & System Requirements
Machine Net Weight 30865 lbs (14000 kg)
Electrical Power Consumption 35 KVA
Pneumatic Pressure 5 CFM @ 85-115 psi (0.14m3 /min) @ 6-8 bar
Operating Dimensions
275.59 x 220.47 x 128.19 in (7000 mm x 5600 mm x 3256 mm)
Options Installed & Included:
MMK 6.5" Thru Hole Full-Forth Axis 15" Rotary Table with
Adjustable Tru-Set Scroll Chuck on Faceplate.
www.takumiusa.com
I thank you for your review and consideration and machine is top condition
ready for inspection and offer machine prep & rigging reasonable trucking
delivery to your shop arrangements.
Sincerely,
Mark Murphy
Murphy Machinery
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Website: www.murphymachinery.com
Email: markmurphy@murphymachinery.com
