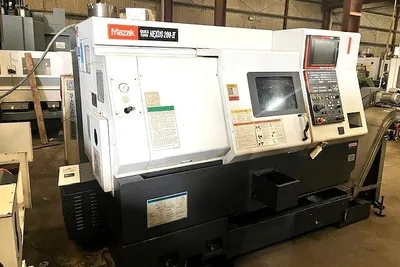

Used 2007 MAZAK Nexus Quick Turn 200-II | CNC 2 Axis Turning Centers
Have one to sell?
ConditionUsed
1 available
2008 Mazak Nexus Quick Turn 200-II with Mazatrol Matrix CNC Conversation Programing Control, G-Code EIA-ISO Installed, 8" 3-Jaw Chuck, 20 Hp Spindle Motor, CNC Parts Catcher, Automatic Quick Tool Setter, Side Discharge Chip Conveyor! Excellent Condition Under Power for Inspections Ready to Ship on Orders!

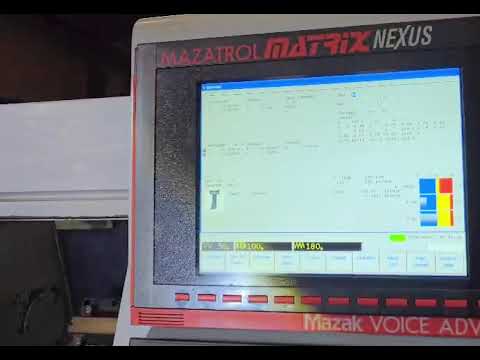

2008 Mazak Nexus Quick Turn 200 II with Mazatrol Matrix Nexus CNC Conversational or EIA-ISO G-Code Control Capabilities.
Main Specifications
Bar Capacity: 2.56"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 15/20 HP
X Axis Travel: 7.67"
Z Axis Travel: 22.04"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 21.3"
Max Swing: 20.67"
Tailstock Body Travel: 21.75"
Tailstock Center: MT#5
Spindle Nose: A2-6
Weight: 12,000 LBS
Options:
Mazak Matrix
Chip Conveyor
Auto Tool Pre-Setter
Programable Tailstock
CNC M-Code Large Capacity Parts Catcher
2008 Mazak Nexus Quick Turn 200-II with Mazatrol Matrix CNC Conversation Programing Control, G-Code EIA-ISO Installed, 8" 3-Jaw Chuck, 20 Hp Spindle Motor, CNC Parts Catcher, Automatic Quick Tool Setter, Side Discharge Chip Conveyor! Excellent Condition Under Power for Inspections Ready to Ship on Orders!
Imperial
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Weight | 12,000 Lbs. |
2008 Mazak Nexus Quick Turn 200 II with Mazatrol Matrix Nexus CNC Conversational or EIA-ISO G-Code Control Capabilities.
Main Specifications
Bar Capacity: 2.56"
Chuck Size: 8"
Spindle Speed: 5,000 RPM
Spindle Motor: 15/20 HP
X Axis Travel: 7.67"
Z Axis Travel: 22.04"
Rapid Rate Z Axis: 1,299 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 13.78"
Max Turning Length: 21.3"
Max Swing: 20.67"
Tailstock Body Travel: 21.75"
Tailstock Center: MT#5
Spindle Nose: A2-6
Weight: 12,000 LBS
Options:
Mazak Matrix
Chip Conveyor
Auto Tool Pre-Setter
Programable Tailstock
CNC M-Code Large Capacity Parts Catcher
