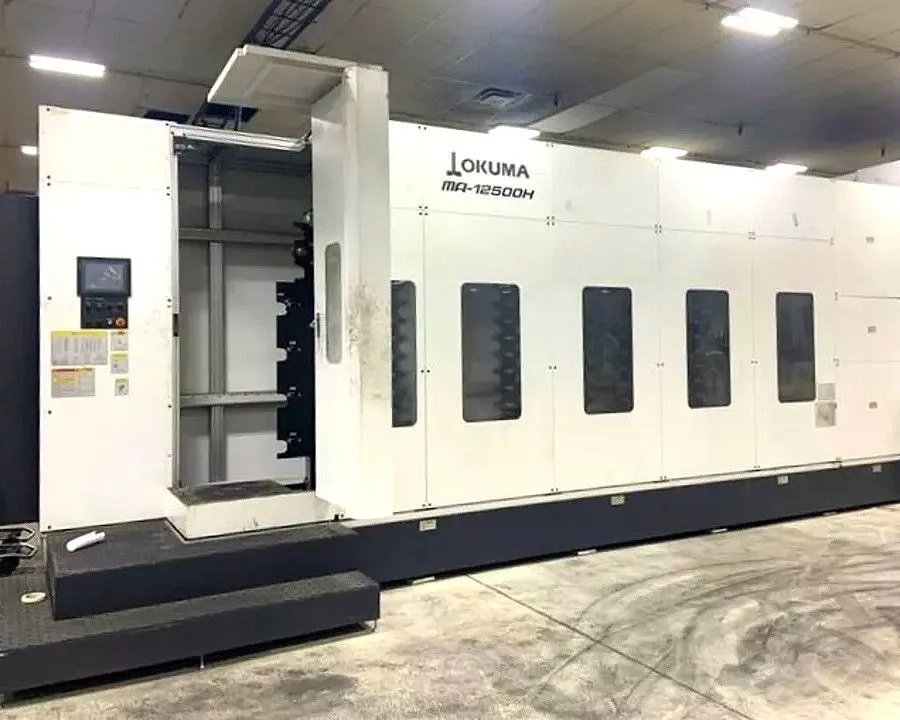

2014 OKUMA MA-12500H CNC HORIZONTAL MACHINING CENTER * EXTENDED X-AXIS TRAVELS MODELMC
Have one to sell?
ConditionUsed
1 available
2014 OKUMA MA-12500H CNC HORIZONTAL MACHINING CENTER * EXTENDED X-AXIS TRAVELS 118" MODEL OKUMA OSP-P300M CNC CONVERSATIONAL CONTROL Rare Opportunity!
Please Email Requests!
* Operational Videos in Process.!
TABLE: 49.21" X 49.21"
MAX MACHINING VOLUME: 118.1" X 78.7" X 78.7"
MAX WORKPIECE: 11,100 LBS
TRAVEL:
X-AXIS: 118.1"
Y-AXIS 78.7"
Z-AXIS: 78.7"
RAPID SPEED: 1,653 IPM

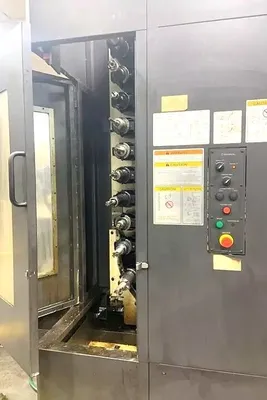

TOOL CAPACITY: 174
SPINDLE:
SPEED: 6000 RPM
TAPER: CAT 60
POWER: 60 HP
DIMENSIONS: 385" X 248" X 180" (APPROX)
WEIGHT: 100,000 LBS (APPROX)
ELECTRICAL REQUIREMENTS: 220/480 V; 3 PHASE; 60HZ
EQUIPPED WITH:
OSP-P300M CONTROL

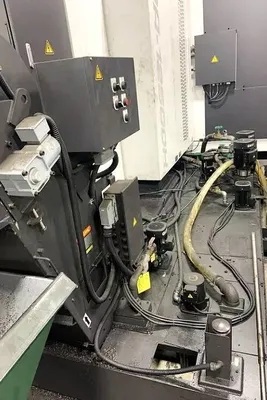

MP SYSTEMS COOLANT SYSTEM
DAIKIN OIL COOLANT SYSTEM
TRANSFORMER

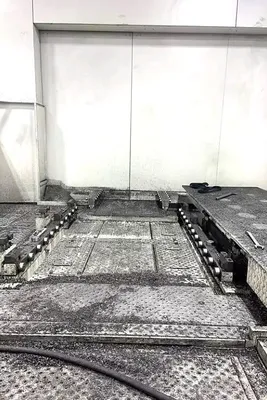

TWO-PALLET CHANGER
Okuma MA-12500H 4 Axis Horizontal Machining Center (2018) 4 Axis, 2 Pallet, 174 ATC, OKUMA OSP-P300M touch screen CNC control, 60HP (2) 49"×49" drilled and tapped pallets with 11,000 lb. capacity, travels: X - 118.61", Y - 62.99", Z - 64.96", Full 4th B Axis (pallet rotation) - 360,000 degrees, max. distance spindle center to pallet surface 64.96", max. distance spindle end to pallet center 73.82", spindle speeds to 8000 RPM, CAT 50 taper, 174 station ATC, 60 HP, through-spindle and shower coolant, chip conveyor, automatic pallet changer with hydraulic clamping, rapid traverse, RENISHAW RMP60 auto gauging, ABSO scales, collision avoidance system, super-NURBS, turn cut function, Okuma's MA-12500H horizontal machining center provides a good balance of speed and cutting power for machining of aluminum alloys, cast iron and difficult-to-machine materials. This makes it well suited for large part aerospace machining. The MA-12500H is the machine of choice for building lathes at the Okuma DS1 plant in Oguchi, Japan. Built on an integral bed and base, and designed with reinforcing ribs for increased stability and load carrying capacity, the MA-12500H incorporates Okuma's exclusive Thermo-Friendly concept to achieve maximum thermal stability and accuracy.
Factory Specifications
Pallet Size 49" x 49" Pallet
X 118.61"
Y 62.99"
Z 64.96"
Power 60 hp
RPM 8,000 RPM
# ATC 174
Taper CAT-50
Pallet-W 49.21"
Pallet-L 49.21"
# Axis Ful Forth Axis
Equipped With
4 Axis, 2 Pallet, 174 ATC, OKUMA OSP-P300M touch screen CNC control
(2) 49"×49" drilled and tapped pallets with 11,000 lb. capacity
Travels: X - 118.61", Y - 62.99", Z - 64.96"
RENISHAW RMP60 auto gauging
ABSO scales, collision avoidance system, super-NURBS, turn cut function
Built 2014/Installed new 2018
Hours: 19165 / 9066 /5899
Additional Features Main Specifications
Okuma MA-1250H 4 Axis Horizontal Machining Center (2014)
• Maximum load capacity of 11,000 pounds
• Rapid traverse (X, Y, Z) of 1,653 ipm
• Maximum part size: 118". diameter x 62.99" high, 10,141 pounds
• Axis travels: X-118", Y-62.99", Z-64.96" 0.001 degree

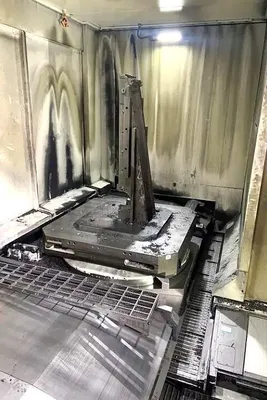

• B-axis rotary table 49.21" square pallet
• Parallel-type 2 pallet

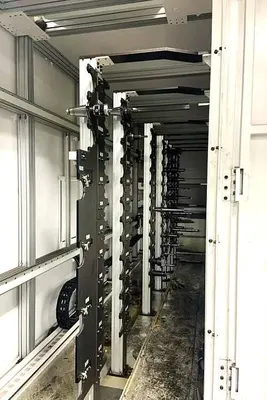

• APC 174 ATC tool matrix
Floor Space Footprint 50' Ft. x 24' Ft.
