Used 2001 KURAKI KBM-11X | Horizontal Table Type Boring Mills

Description

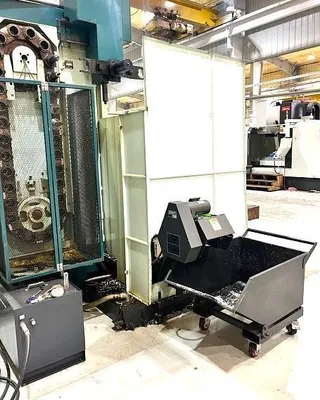

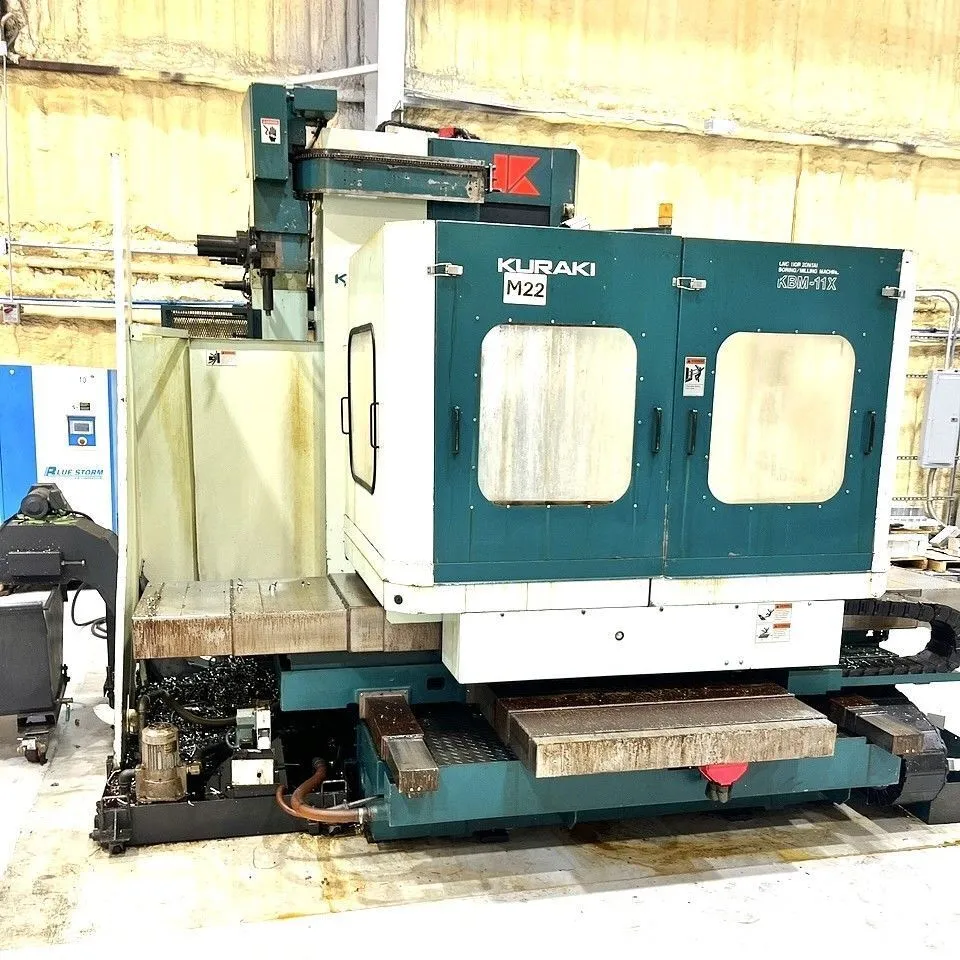

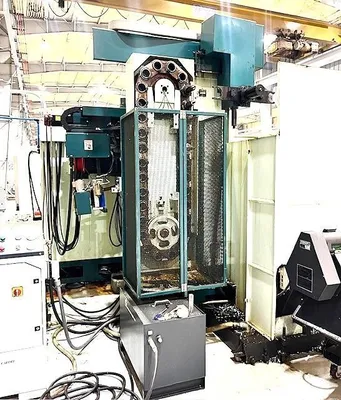

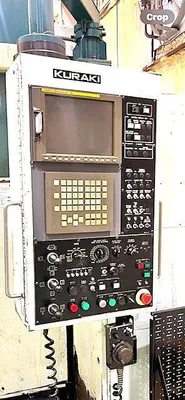

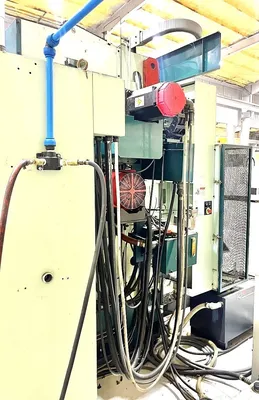

The Kuraki KBM-11X is a heavy-duty, high-precision CNC table-type horizontal boring and milling machine. It features a 4.33-inch (110 mm) spindle diameter, a 30-tool automatic tool changer, and a rigid two-step geared head designed for complex large-scale parts
and applications.

Machine Specifications:
X-Axis Travels (Table cross travel): 59.05 inches
Y-Axis Travels (Head vertical travel): 47.24 inches
Z-Axis Travels (Column travel / spindle out): 27.56 inches
W-Axis Travel (Spindle travel): 13.78 inches (350 mm)

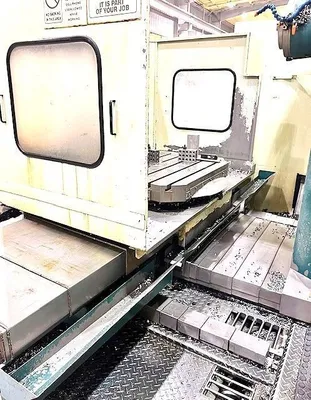

Worktable & Performance Table Size:
37.40" x 41.34" (950 x 1,050 mm)
Max Workpiece Load: 6,600 Lbs (approx. 3,000 kg)
Spindle Speed: 5 to 3,000 RPM (2-speed gear range)
Spindle Motor Power: 30 HP (22 kW) peak
25 HP (18.5 kW) continuous
Max Spindle Torque: 1,581 Nm (1,166 ft-Lbs.)

Special Pricing: Please Email Requests for Quotations.
