Used DMC DL-30 | CNC 2 Axis Turning Centers

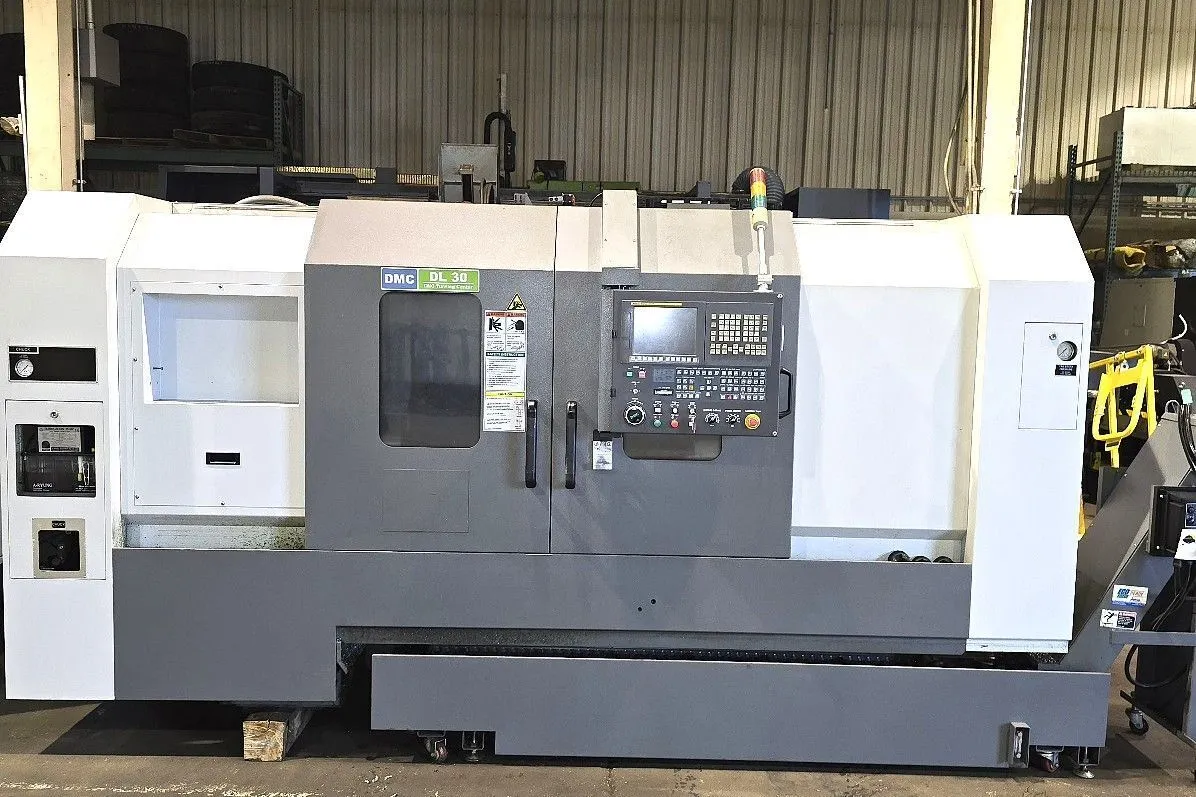

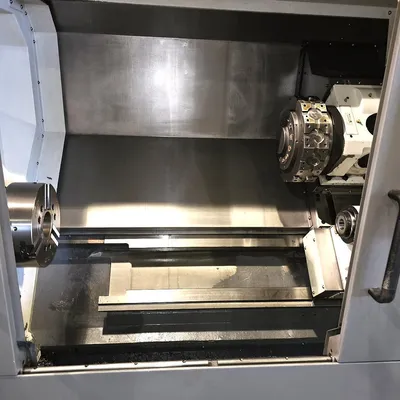

DMC Model DL-30 CNC Universal Turning Center with
Fanuc 0i-TF CNC Conversational Control 10.4" TFT
Monitor in 10-10 Condition featuring a 24.02" swing

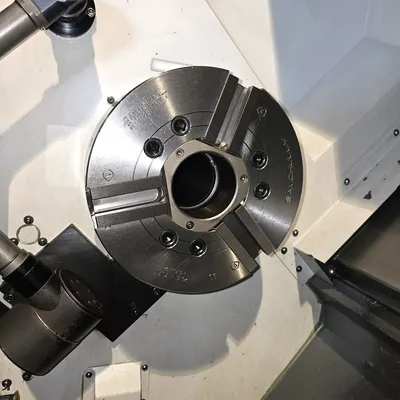

and max RPM of 3,000. 12" 3-Jaw Big Bore chuck,
30 hp motor with all Options.

Main Specification
Swing 24.02"
# Axis 2
Chuck Size 10"
Power 30 hp
Max RPM 3,000 RPM
Turning Dia 15.75"
Dimensions 161.42" x 74.21"
Weight 15,652 lbs

Spindle:
Spindle nose:A2-8
Bore Diameter:4.13"
Main Spindle motor:30/25 HP
Spindle Speed:3000 RPM with 12" chuck
Maximum Spindle Torque: 462.91 ft-lbs

Slide and Carriage:
X axis travel:9.06"
Z axis travel:44.49"
Rapid Traverse X:787 ipm
Rapid Traverse Z:945 ipm
Guide Ways:Box Ways
Bed Structure: 45 degree slant

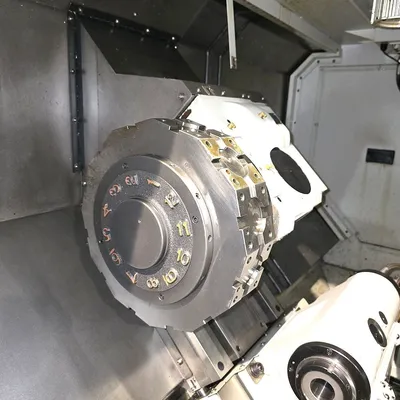

Turret:
Number of tool Stations:12 tools
Turret Indexing Speed:.2 seconds
Indexing Type:Non-Stop, Bi-Directional
Tool Size (turning/facing):1"-wedge clamp
Tool Size (boring bar max):1.75"

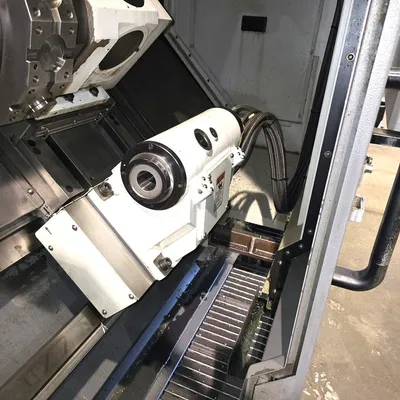

Tailstock:
Tailstock Center:MT#5
Quill Diameter:4.33"
Quill Travel (hydraulic):3.94"
Max thrust of Quill: 2,222lbs

Machine Size:
Floor Space Requirements:161.42" x 74.21"
Machine weight:15,652 lbs
Power Consumption:34 Kva
Voltage:220 Volt +/- 10%, 60 HX, 3 phase

Equipped With

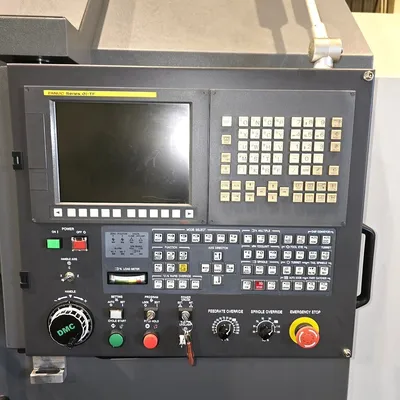

Fanuc Oi-TD Control
10.4" TFT LCD screen
Flash memory card interface
RS 232C interface
Program protection on machine control panel
640M parts programming storage
Tool Life management
Linear and circular interpolation
Variable lead thread cutting

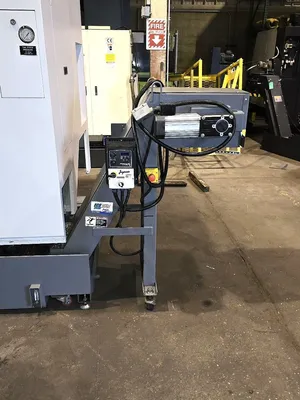

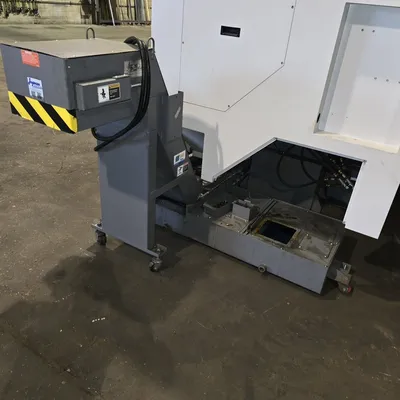

Jorgenson Side Discharge Chip Conveyor
