Used KALAMAZOO INDUSTRIES K20SW | Abrasive & Friction Saws

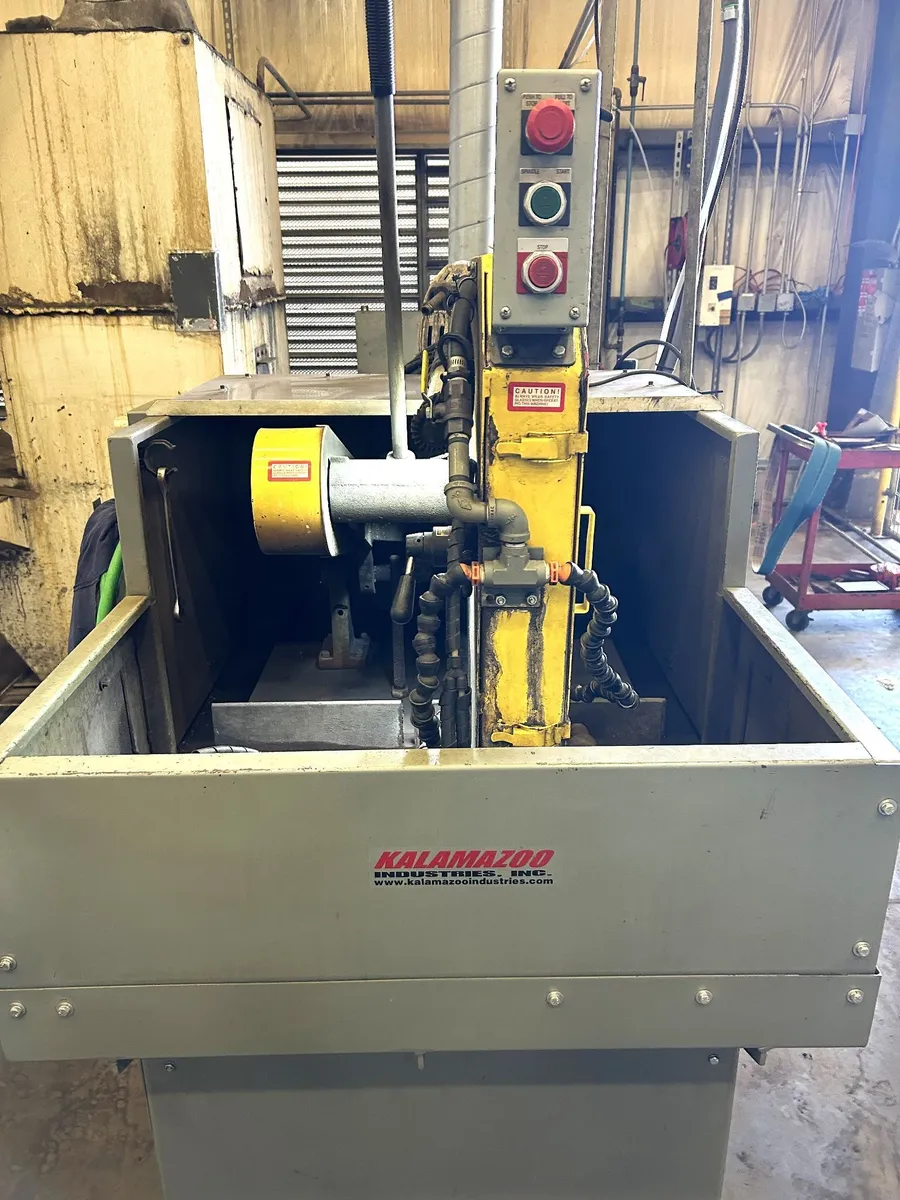

K20SW 20 INCH MANUAL WET ABRASIVE CUTOFF SAW

K20SW 20-inch wet abrasive saw is designed to cut metal metallographic samples fast and safely. Overall saw specifications: 15Hp 3PH motor, all steel construction, 1 “spindle arbor, industrial coolant system that will help to minimize material burning.

SAW SPECIFICATIONS

20 HP TEFC motor wired for 220V and or 440V
Magnetic controls
24V at the on/off push buttons.
Abrasive wheel size requirements: 20″
Material capacities: 4″ solid bar and 6″ shapes (mild steel)
Spindle arbor size: 1″
Spindle speed: 1,950 RPM
Cast iron arm
Cast iron trunnion
Steel base with a three-sided shroud
Steel coolant tank and industrial coolant pump,
Flexible coolant flair nozzles that you control with a ball valve
Air chain vise (shop air required).
V-belt driven
Saw operation type: manual operation
20HP machine shipping weight: 1475 lbs.
Shipping dimensions: L 53″ x W 73 x H 74″
