Used 2017 EMAG VL 2 | CNC 3-Axis Turning Centers
Have one to sell?
ConditionUsed
1 available

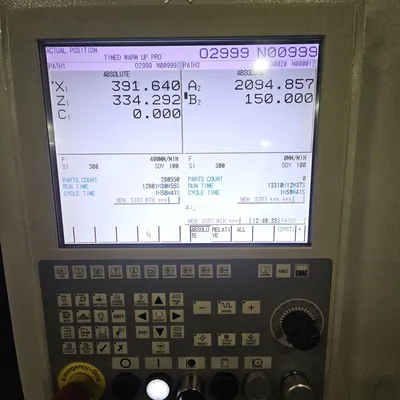

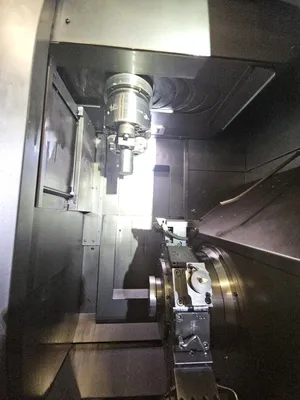

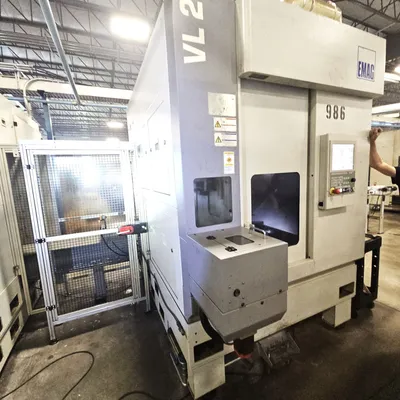

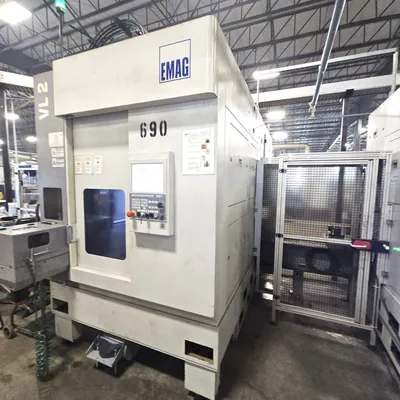

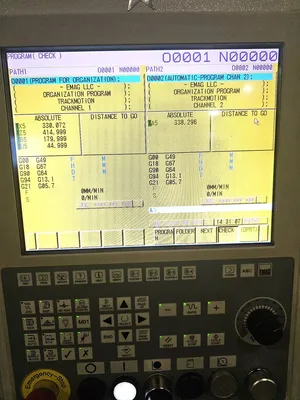

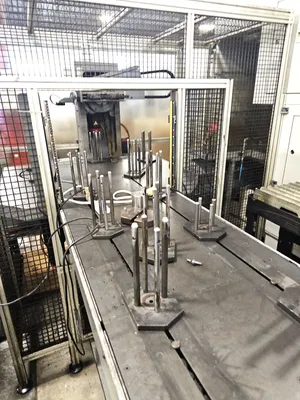

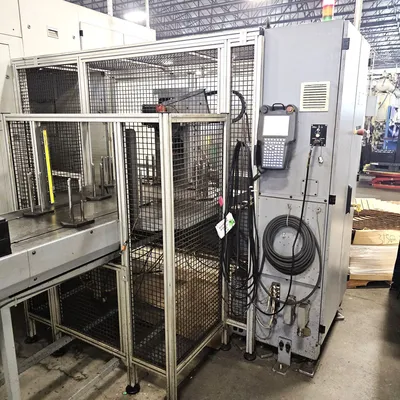

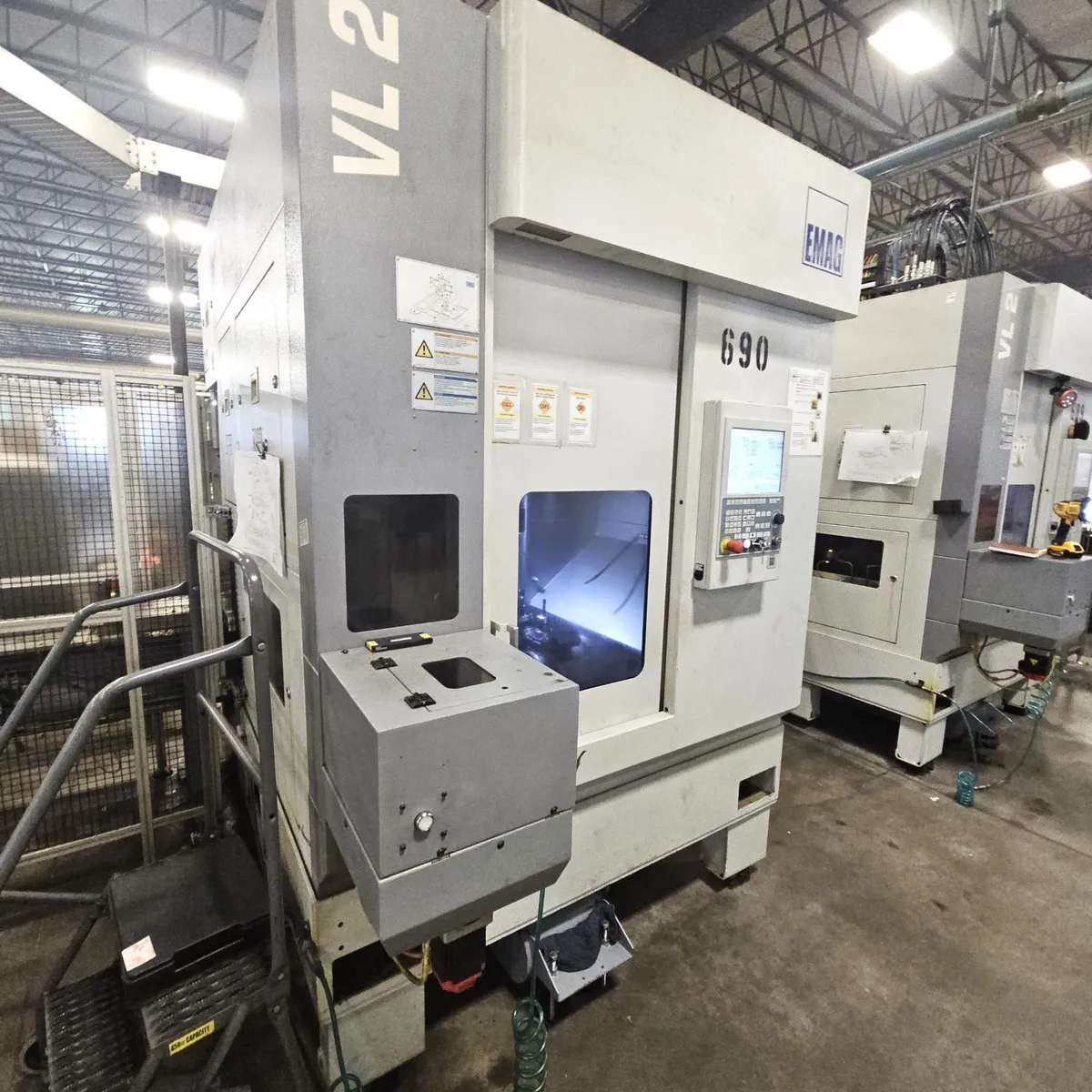

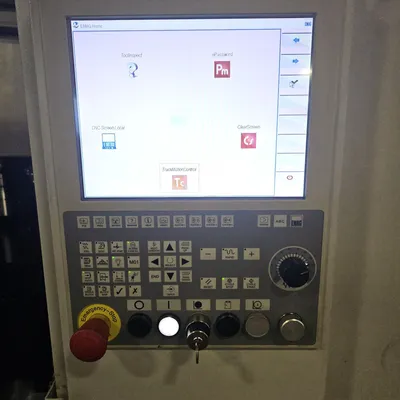

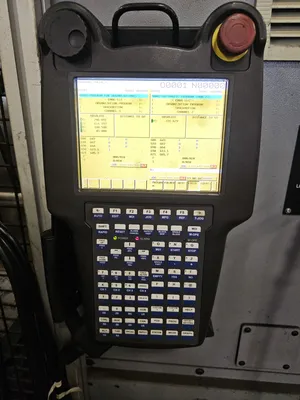

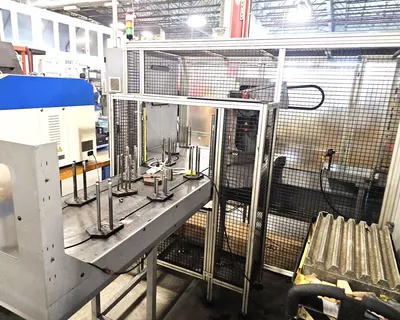

2017 EMAG VL-2 M C-Axis Inverted Vertical Spindle Full C-Axis Live Tool Turning Center with Tailstock for Shaft Parts & High Speed 6000 RPM's Chucking Turning Applications with Fanuc 31iB CNC Control Fanuc Controlled Design Factory Gantry Loader with 3-Pole Stocker Feeder Tables, Auto Touch Probes with Integrated Input Part Conveyor System, 6.5" Hydraulic Power Chucks, Rear Discharge High-Top Heavy-Duty Hennig Chip Conveyors, High Pressure Coolant Pumps & Tank, Loaded with All Emag BMT-55 Live Tooling and Static Tool Holders to be Divided on or All Included (4) Identical Machines Available.
Workpiece dia., max. 6"
Chuck dia., max.: 6.5"
Main Specifications
Swing:........................... 8.3"
Machining Length:........ 15.75"
Max Turning Diameter:. Standard Max 6.5"
Full C-Axis Contour Milling Capability
Op 10 Chuck Size 6.5" Chucks Installed & Included.
Op 20 Mandrels 2nd Operation Tailstock Capabilities
Main Power 27 hp High Torque Spindle Drive Motors
Max RPM 6,000 RPM
X-Axis Travel 14.96"
Z-Axis Travel 15.75"

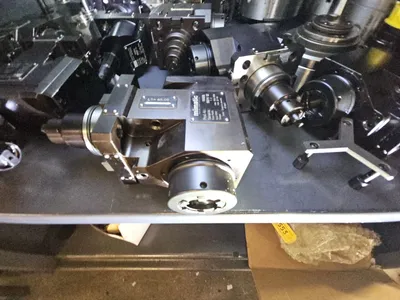

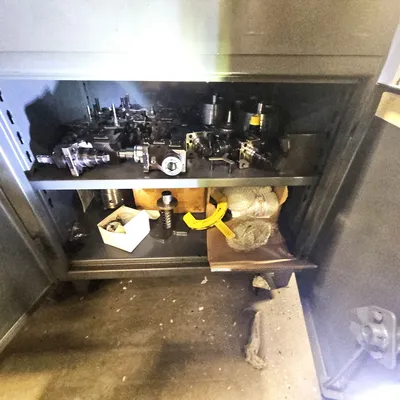

BMT-55 C-Axis Block Mounted Tooling
Full 360 - 0.01° Degree Milling Capabilities
Live Tooling Package Included List in Process.
Rapid Traverse (X/Z) 2,363 / 1,181 in/min.
Turret BMT-55 12 Stations Live Tool Capable
Dimensions 100" X 63" X 103" (Approx.)
Weight Machine Only 12,125 Lbs.
Equipped With
Auto Pick-up spindle automatic loading system
Auto Integrated part conveyor system
Hydraulic CNC Power Pull back CNC Collet Chuck
1000 PSI High Pressure Thru Spindle Coolant systems

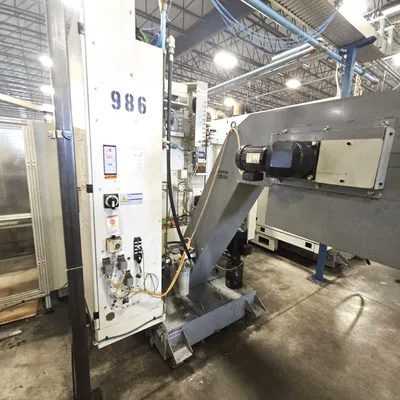

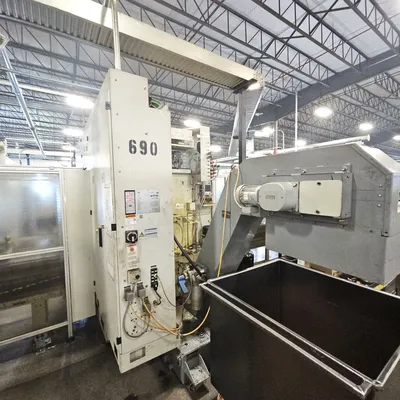

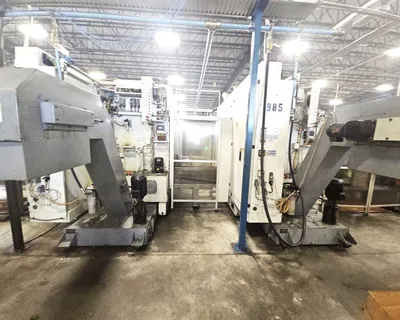

Rear High Top Henning Chip conveyors

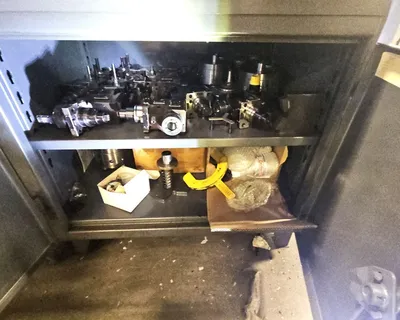

All Tooling to be Divided Between Machines.
All Original Ordered New Books & Manuals
I look forward to any questions and providing more
features and options on this Cell of 1-4 Machines.
I thank you for you review!
Sincerely,
Mark Murphy
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Website: www.murphymachinery.com
Email: markmurphy@murphymachinery.com
2017 EMAG VL2 (M) Live Tool Inverted Vertical Turning Centers for Shaft Parts & High Speed 6000 Rpm's Chucking Part Applications (2) Machine Cell with Integrated Turn Around Sation for A-B Part Production or (4) Machine Cell Available with Gantry Loader Automation. * Part Order Machine Ended Reason for Sale!
Main Specifications
Chuck Diameter Std. 6.29"
Swing Diameter 7.87"
Travel X- Axis ( Working Stroke ) 14.96"
Travel Z-Axis (Working Stroke ) 15.75"
Main Spindle
Spindle Nose DIN-55 026
Spindle Bearing Front 3.14"
Spindle Max RPMs 6000
Main Drive
AC-Synchronous Motor 19.5 Kw/ 27 Hp.
Torque 40% Duty Cycle / 100% Nm 75/48
Full Power 2,500 RPMs
Feed Drive
Rapid Traverse Speed X Axis 30m/min
Rapid Traverse Speed Z-Axis 30m/min
Feed Force X/Z kN 5-5
Ball screw X Axis 32mm (1.25) Z-Axis 40mm (1.57")

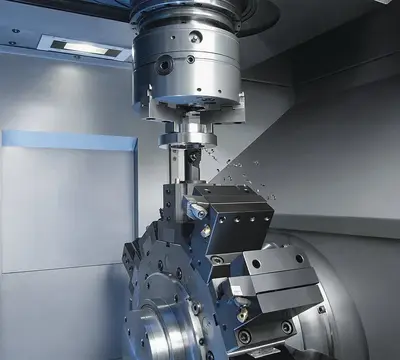

Disc-Type Turret
Tool Carrier Unit BMT (Block Mount Tooling)
Driven Tool Cap. 12 Stations
Driven Tools Max RPM's 6,000.
* Full Machine Factory PDF Features!
* Full Under Power Operational Videos!
Special Pricing on Request Please Email
Requests and any Questions
Note: Tooling Layout is Flexible on Offset Toolholders
Models if Required to Confirm Part Applications!
Thank You! on Review & Considerations!
Sincerely,
Mark Murphy
Murphy Machinery
