Used BULLARD BULLARD 64" CUTMASTER VTL | Turret Lathes (Ram & Saddle)

BULLARD CUTMASTER 64" RAM & TURRET MODEL
MODEL 64"-VTL WITH ALL OPTIONS.

MAIN SPECIFICATIONS
DIAMETER OF TABLE / CHUCK ......... 64"
CHUCK T-SLOTTED ............................. 4-JAW
MAXIMUM SWING DIAMETER ........... 72"
MAXIMUM TURNING DIAMETER ....... 67" TABLE SPEEDS ................... (20) 2.741 TO 100.1 RPM
FEEDS (16) .......................... (16) .0026 TO .500 IPR
RAPID TRAVERSE ............... VERTICAL RAIL TRAVEL ...... 60"
VERT DISTANCE TABLE TO RAIL 78" (HIGH COLUMN)
FLOOR TO TOP OF TABLE ........ 36"
DIGITAL READOUTS .................
PENDANT CONTROL ................ YES
MOTOR ...................................... 50 HP
NUMBER OF HEADS ........... (2) TURRET & RAM

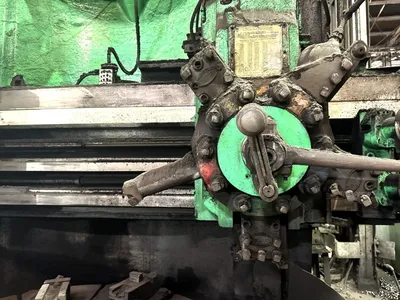

TURRET HEAD:

VERTICAL STROKE TRAVEL ....... 30-3/8"
HORIZONTAL TRAVEL ON RAIL .... 40-3/8"
TOOLING POSITIONS ........ 5 STATION TURRET

RAM HEAD:
VERTICAL STROKE TRAVEL .......... 54"
HORIZONTAL TRAVEL ON RAIL .... 40-3/8"

Fully Installed for Inspections!
Confirming Clearance Under Ram !

I thank you for review and look forward to your
interest and questions.

Sincerely,
Mark Murphy
