ConditionUsed
1 available

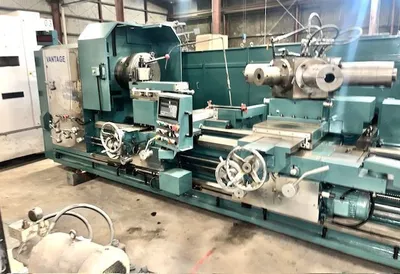

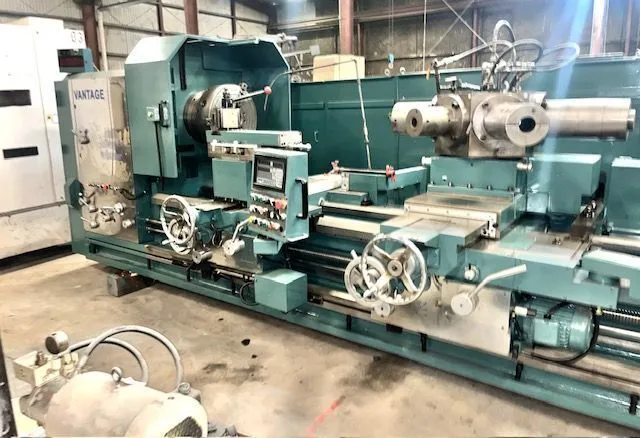

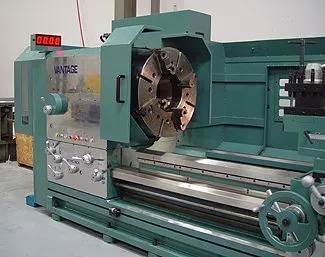

2013 Vantage Lathe, Model: PB50-5A Heavy Duty
Big Bore Manual Lathe Loaded with All Options
*Machine Sold New Installed 2013
Main Specifications:
Swing over bed:.................................50"
Swing over cross slide:.....................37"
Center distance from Spindle Nose to Hex Turret vertical surface:........ 152”
Weight capacity between centers:...9,600 Lbs
Headstock Spindle bore:..................9.05"
2013 Vantage Lathe, Model: PB50-5A Heavy Duty
Big Bore Manual Lathe Loaded with All Options
*Machine Sold New Installed 2013
Main Specifications:
Swing over bed:.................................50"
Swing over cross slide:.....................37"
Center distance from Spindle Nose to Hex Turret vertical surface:........ 152”
Weight capacity between centers:...9,600 Lbs
Headstock Spindle bore:..................9.05"
Spindle speed:...................................0-700 rpm
(4) speed frequency inverter variable
speed, with power air gear ranges.
Spindle nose----------------------------------A2-15
Main motor------------------------------------50 HP
• Headstock oil lubrication with electrical pump
Threads and Feeds (Both Carriages)

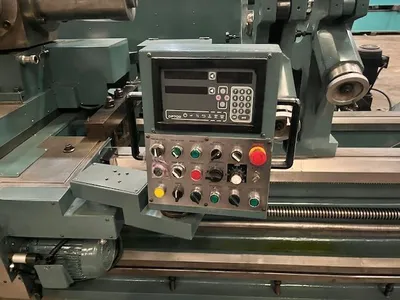

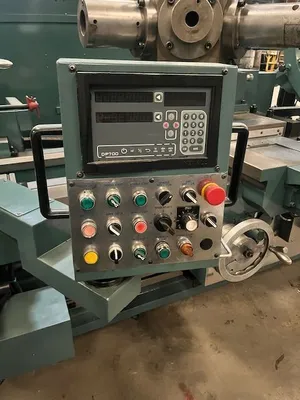

First Carriage
Standard with Tool Compound Type
6-way rapid traverse and feeds

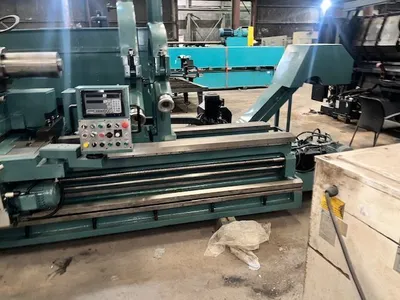

Second Carriage

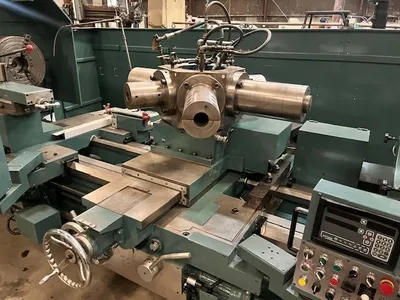

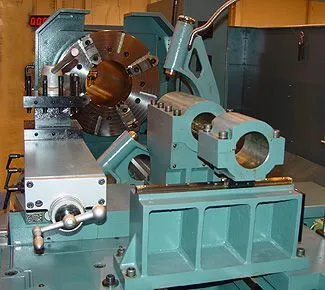

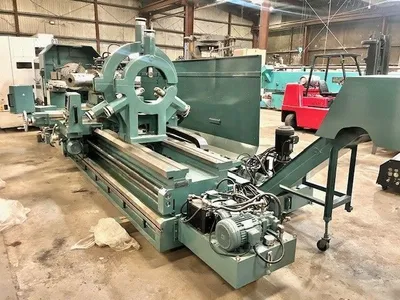

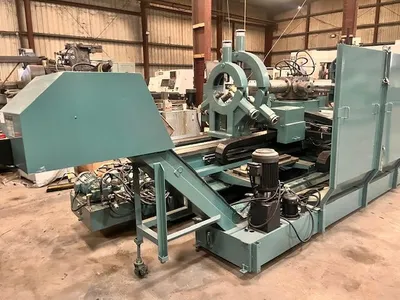

Horizontal Hex Turret with 6-station, Hydraulic, bi-directional
Indexing and clamp with manual selection of stations.
Heavy duty square ways on cross slide
Boring capacity: Maxima 6” boring diameter through Hex Turret
Hex Turret size: 20” side to side, 10” thickness (tall)
Boring bar holder:2 pieces of 6” diameter
2 pieces of 4” diameter
2 pieces of 2” diameter
Hydraulic cable track

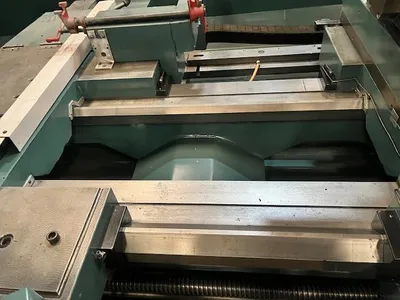

Machine Bed Specifications
Width:...............................28"
Height:..............................26”
Machine Weight:.............. 37,900 Lbs.
Standard Accessories:
Spindle variable speed, 4-range speeds, by inverter frequency control, each range gear changed by power air.
Hardened and ground bed and cross slide ways, ways lubrication with adjustable timer control pump
Tool compound post (8” X 8” Indexing every 45 degrees)
Rear spindle adapter plate
Automatic lubrication system with adjustable timer control
Chuck guard at front and rear of spindle
Cross slide constant surface feed on both carriages
Thread chasing dial
Low voltage control
Coolant system on both carriages
One halogen work light on front carriage (No halogen light on rear carriage)
Tool box
Optional Accessories:

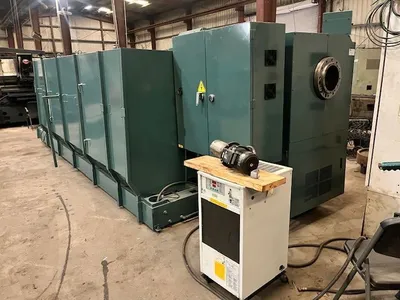

1. Full length splash guard (160”) and chip conveyor (160”)

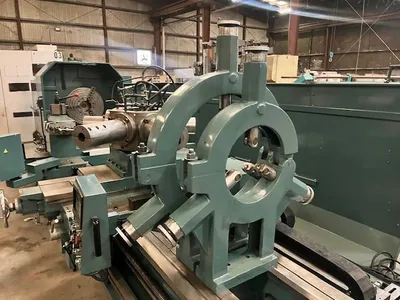

2. One steady rest, capacity from 1” to 14”
3. One steady rest, capacity from 14” to 32”
4. Hydraulic tracer attachment on both carriages
5. Heavy duty coolant pump 280 PSI X 8 Gallon/Min
6. Semi auto-threading in front carriage
Murphy Machinery Office: 262-534-4124 Mobile: 414-520-0843 Website: www.murphymachinery.com Email: markmurphy@murphymachinery.com
Heavy Duty PA series PA-50
mm inch mm inch
CAPACITY
Center height 22.5 25
Swing over bed 45 50
Swing over cross slide 34 40
Swing over gap 58 63 69
Gap width from headstock (24")
Distance between centers
1500,2000,2500,3000,3500,4000,5000,6000,7000,8000,
9000,10000,11000,12000
inch 140,160,200,240,280,320,360,400,440,480
Bed width 560 (w/o Auxiliary guide), 650 (w/ Auxiliary guide)
inch 22 (w/o Auxiliary guide), 25.5 (w/ Auxiliary guide)
HEADSTOCK
Spindle nose A2-11 A2-15 A2-11 A2-15 A2-20 A2-20 A2-20 A2-28 A2-28 A2-32
Spindle 153 230 255 318 360 410 535 610
inch 9.05
Spindle step 18 steps
manual Auto 4 steps (with inverter)
Spindle taper 1/20
Gear transmission 4 - Step
Spindle speed 1st range rpm 18-130,16-120,13-95,12-85,10-75,8-50,6-40,4-25
2nd range rpm 35-260,30-200,25-185,23-170,20-150,15-100,12-80,8-50
3rd range rpm 85-550,70-420,60-400,55-300,50-250,35-20,30-180,20-140,
4th range rpm 165-1000,150-700,120-600,110-400,95-350,65-300,50-250,40-220
MOTOR
Main spindle motor
KW (HP) 15(20)-STD. 22.5(30)/30(40)-OPT.
Coolant pump motor 0.1KW (0.125HP)
CARRIAGE
Cross slide travel mm (inch) 670 (26.4)
Compound rest travel (inch) 450 (17.7)
THREADS & FEEDS RANGE
Longitudinal feeds mm/rpm(inch/rpm) 0.045-2.55 (0.0018-0.1)
Cross feeds mm/rpm(inch/rpm) 0.023-1.28 (0.0009-0.05)
Longit.rapid feeds mm/rpm(inch/rpm) 2000 (80)
Cross rapid feeds mm/rpm(inch/rpm) 1000 (40)
Metric thread mm (kinds) 1-56 (60)
Inch thread TPI (kinds) 1/2-28 (60)
Module thread MOD (kinds) 0.25-14 (60)
Diametral pitch thread DP (kinds) 2-112 (60)
Pitch of lead screw mm(TPI) 12 (2)
TAILSTOCK
Tailstock quill traverse 200mm (7.87")
Tailstock quill inner taper MT # 6
Tailstock quill diameter 115mm, (4.5")
Bearing surface on bed ways 500mm, (19.75")
Machine weight kg (lb) 2000 mm (79") Center distance 10000(22000) 10350(22770) 10700(23540) 11050(24310)
2013 Vantage Lathe, Model: PB50-5A Heavy Duty
Big Bore Manual Lathe Loaded with All Options
*Machine Sold New Installed 2013
Main Specifications:
Swing over bed:.................................50"
Swing over cross slide:.....................37"
Center distance from Spindle Nose to Hex Turret vertical surface:........ 152”
Weight capacity between centers:...9,600 Lbs
Headstock Spindle bore:..................9.05"
Imperial
| Swing | 50" |
| Centers | 152" |
| Spindle Bore | 9.05" |
| Power | 50 hp |
| RPM | 700 RPM |
| Weight | 37,500 Lbs. |
2013 Vantage Lathe, Model: PB50-5A Heavy Duty
Big Bore Manual Lathe Loaded with All Options
*Machine Sold New Installed 2013
Main Specifications:
Swing over bed:.................................50"
Swing over cross slide:.....................37"
Center distance from Spindle Nose to Hex Turret vertical surface:........ 152”
Weight capacity between centers:...9,600 Lbs
Headstock Spindle bore:..................9.05"
Spindle speed:...................................0-700 rpm
(4) speed frequency inverter variable
speed, with power air gear ranges.
Spindle nose----------------------------------A2-15
Main motor------------------------------------50 HP
• Headstock oil lubrication with electrical pump
Threads and Feeds (Both Carriages)
First Carriage
Standard with Tool Compound Type
6-way rapid traverse and feeds
Second Carriage
Horizontal Hex Turret with 6-station, Hydraulic, bi-directional
Indexing and clamp with manual selection of stations.
Heavy duty square ways on cross slide
Boring capacity: Maxima 6” boring diameter through Hex Turret
Hex Turret size: 20” side to side, 10” thickness (tall)
Boring bar holder:2 pieces of 6” diameter
2 pieces of 4” diameter
2 pieces of 2” diameter
Hydraulic cable track
Machine Bed Specifications
Width:...............................28"
Height:..............................26”
Machine Weight:.............. 37,900 Lbs.
Standard Accessories:
Spindle variable speed, 4-range speeds, by inverter frequency control, each range gear changed by power air.
Hardened and ground bed and cross slide ways, ways lubrication with adjustable timer control pump
Tool compound post (8” X 8” Indexing every 45 degrees)
Rear spindle adapter plate
Automatic lubrication system with adjustable timer control
Chuck guard at front and rear of spindle
Cross slide constant surface feed on both carriages
Thread chasing dial
Low voltage control
Coolant system on both carriages
One halogen work light on front carriage (No halogen light on rear carriage)
Tool box
Optional Accessories:
1. Full length splash guard (160”) and chip conveyor (160”)
2. One steady rest, capacity from 1” to 14”
3. One steady rest, capacity from 14” to 32”
4. Hydraulic tracer attachment on both carriages
5. Heavy duty coolant pump 280 PSI X 8 Gallon/Min
6. Semi auto-threading in front carriage
Murphy Machinery Office: 262-534-4124 Mobile: 414-520-0843 Website: www.murphymachinery.com Email: markmurphy@murphymachinery.com
Heavy Duty PA series PA-50
mm inch mm inch
CAPACITY
Center height 22.5 25
Swing over bed 45 50
Swing over cross slide 34 40
Swing over gap 58 63 69
Gap width from headstock (24")
Distance between centers
1500,2000,2500,3000,3500,4000,5000,6000,7000,8000,
9000,10000,11000,12000
inch 140,160,200,240,280,320,360,400,440,480
Bed width 560 (w/o Auxiliary guide), 650 (w/ Auxiliary guide)
inch 22 (w/o Auxiliary guide), 25.5 (w/ Auxiliary guide)
HEADSTOCK
Spindle nose A2-11 A2-15 A2-11 A2-15 A2-20 A2-20 A2-20 A2-28 A2-28 A2-32
Spindle 153 230 255 318 360 410 535 610
inch 9.05
Spindle step 18 steps
manual Auto 4 steps (with inverter)
Spindle taper 1/20
Gear transmission 4 - Step
Spindle speed 1st range rpm 18-130,16-120,13-95,12-85,10-75,8-50,6-40,4-25
2nd range rpm 35-260,30-200,25-185,23-170,20-150,15-100,12-80,8-50
3rd range rpm 85-550,70-420,60-400,55-300,50-250,35-20,30-180,20-140,
4th range rpm 165-1000,150-700,120-600,110-400,95-350,65-300,50-250,40-220
MOTOR
Main spindle motor
KW (HP) 15(20)-STD. 22.5(30)/30(40)-OPT.
Coolant pump motor 0.1KW (0.125HP)
CARRIAGE
Cross slide travel mm (inch) 670 (26.4)
Compound rest travel (inch) 450 (17.7)
THREADS & FEEDS RANGE
Longitudinal feeds mm/rpm(inch/rpm) 0.045-2.55 (0.0018-0.1)
Cross feeds mm/rpm(inch/rpm) 0.023-1.28 (0.0009-0.05)
Longit.rapid feeds mm/rpm(inch/rpm) 2000 (80)
Cross rapid feeds mm/rpm(inch/rpm) 1000 (40)
Metric thread mm (kinds) 1-56 (60)
Inch thread TPI (kinds) 1/2-28 (60)
Module thread MOD (kinds) 0.25-14 (60)
Diametral pitch thread DP (kinds) 2-112 (60)
Pitch of lead screw mm(TPI) 12 (2)
TAILSTOCK
Tailstock quill traverse 200mm (7.87")
Tailstock quill inner taper MT # 6
Tailstock quill diameter 115mm, (4.5")
Bearing surface on bed ways 500mm, (19.75")
Machine weight kg (lb) 2000 mm (79") Center distance 10000(22000) 10350(22770) 10700(23540) 11050(24310)
