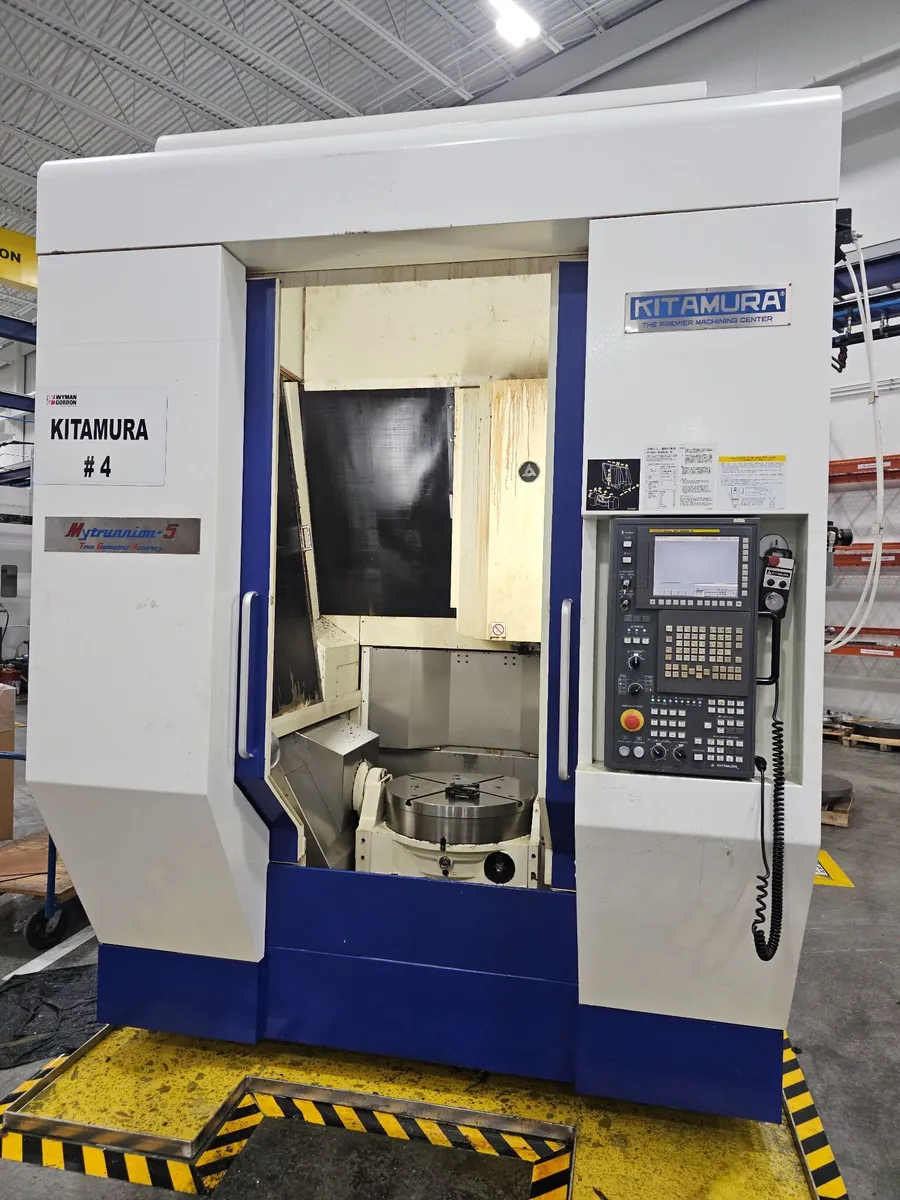

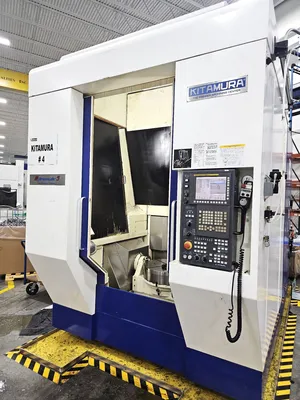

2017 Kitamura #4 My-Trunnion 5-Axis w/Fanuc Series 30i Model B-CNC Controls Machine #4

2017 Kitamura My-Trunnion 5-Axis w/Fanuc Series 30i Model B-CNC Controls Machine #4, 50 Position Automatic Tool Changer, 20,000 Rpm Spindle, 24" 4-Jaw Rotary Chuck, Heavy Duty Taper Milling, All Box Way Construction & Rigidity. This is a Japan Quality Constructed Machine with Great USA Factory & Large Dealer Network Supported Machine.

Main Specifications
Kitamura My-Trunnion 5-Axis
Table Length 24.8 "
Table Width 19.7 "
CNC 5-Axis Mach Center
FANUC Series 30i CNC Control
Cat 40 Spindle Taper
Spindle Speed Range 20 ~ 20,000 rpm
Spindle motor power 30 hp
Automatic High Speed 50 Station Tool Changer
Max longitudinal cutting feed (X-Axis) 1,968 "/min
Max transversal cutting feed (Y-Axis) 1,968 "/min
Max vertical ram cutting feed (Z-Axis) 984 "/min
X-Axis travel 32.3 "
Y-Axis travel 29.3 "
Z-Axis travel (Ram Stroke) 19.6 "
Machine Weight 30,000 Lbs.

Special Features Specifications:

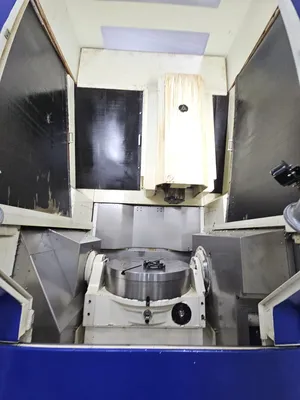

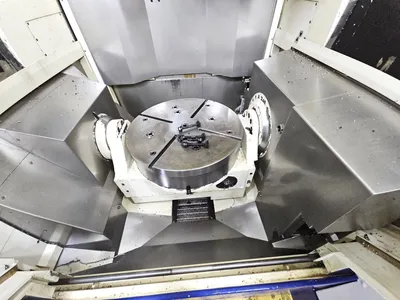

A Axis: 150° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Max Weight on Table: 880 lbs
T-Slot : 0.7″ X 3 Slots
Table to Spindle Nose: 3.9″ – 23.6″
Rapid A : 2000 Degree Per Minute
Rapid C : 6000 Degree Per Minute
Cutting Feedrate: 984 Inch Per Minute
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light

Fully Installed and under power for inspection
Additional Photos & Operation Videos in Process.

Special Offered Price..... $ Please Send Email Request

Thank you on review and look forward to any questions.
