Used OKUMA VTM-100 | CNC 3-Axis Turning Centers

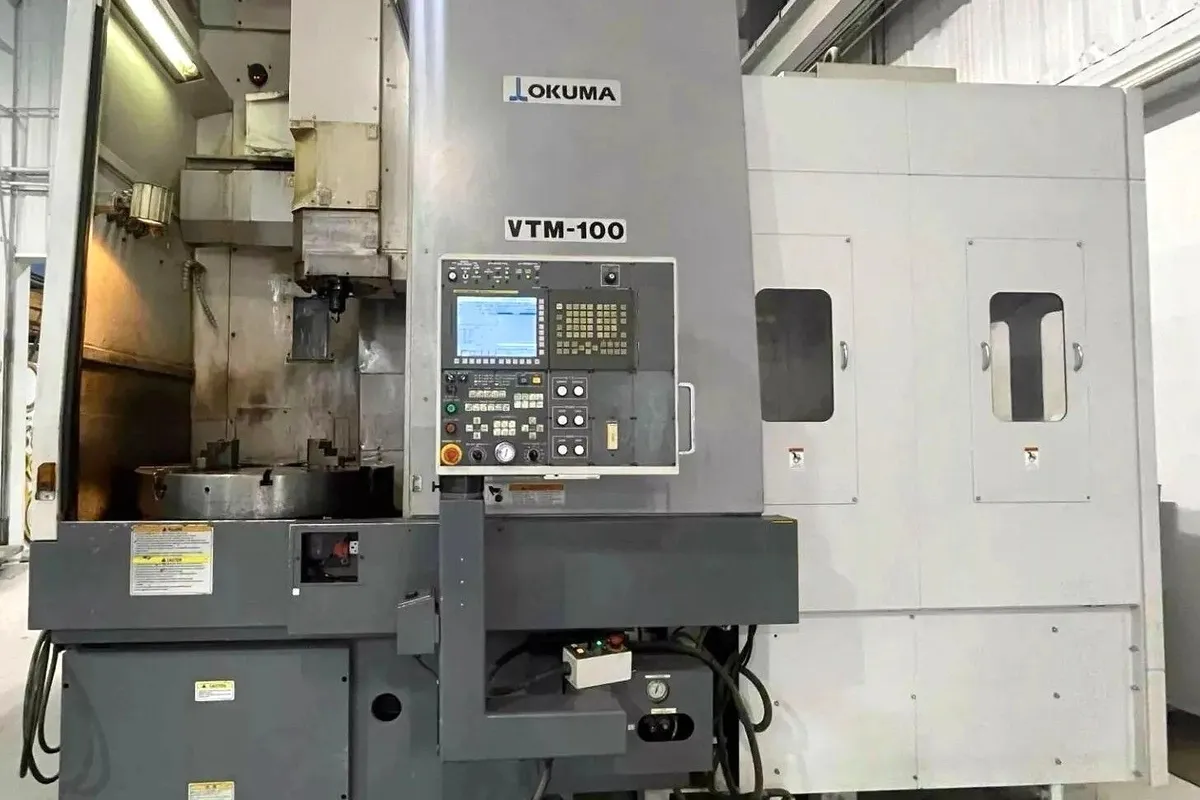

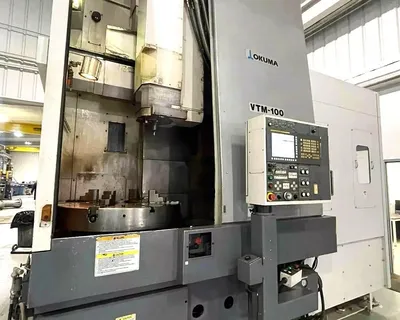

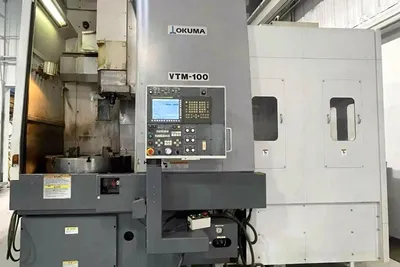

2011 OKUMA VTM-100 CNC VERTICAL TURNING CENTER - C AXIS LIVE TOOL FANUC 31i-MA SERIES CONTROL

* Loaded All Options Included.

Main Specifications:

Swing 39.37"
Machining Length 33.07"
Full 3# Axis
Chuck Size 39.37"
Power 40 hp
Max RPM 1,250 RPM
Turning Dia 39.37"
Live Tooling Yes
CNC Fanuc 31i-MA Series CNC Control
Dimensions 169″ x 126″ x 169″ High
Weight 29,700 lbs. Approx.

Main Control Features:

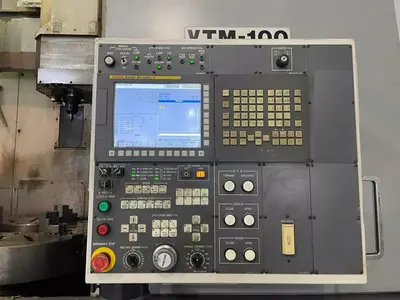

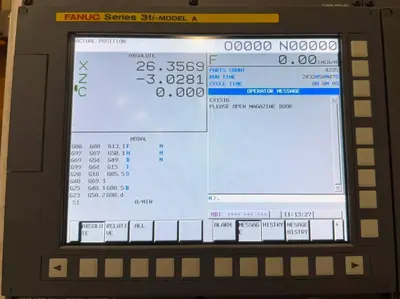

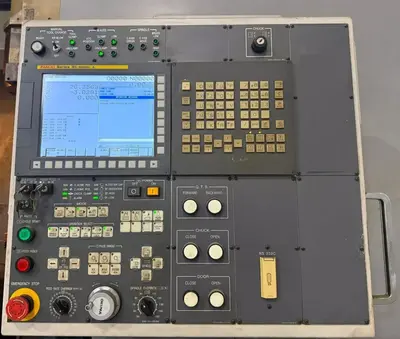

Fanuc 31i-MA Series CNC Control
PCMCIA Card Slot
RS232 Port

Main Capacity:
Max Machining Diameter: 39.37″
Max Machining Height: 33.07″
Max Swing Diameter: 39.37″
Max Work piece Load: 2,640 lbs

Main Travels:
X Axis Travel: 25.59″
Z Axis Travel: 30.07″
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM

Main Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 10 – 1,250 RPM
Spindle Motor: 40 HP

Main C-Axis Turret (Tool Spindle):
Turret Type: ATC Single Tool
Tool Size: 1.0″, 1.25″
Boring Bar Diameter: ø1.5″, ø2.0″

Milling Tool Spindle:
Max Spindle Speed: 10 – 4,500 RPM
Speed Ranges: 2 Auto Ranges
Taper: 50

Automatic Tool Changer:
Capacity: 60 Tools
Max Tool Diameter: 6.70″ – 9.84″
Max Tool Length: 19.69″
Max Tool Weight: 66 Lbs.

General:
Power Source: AC 220/480 V, Three Phase, 60 Hz
Overall Dimensions: 169″ x 126″ x 169″ High
Weight : 29,700 Lbs. Approx.

Equipped With:

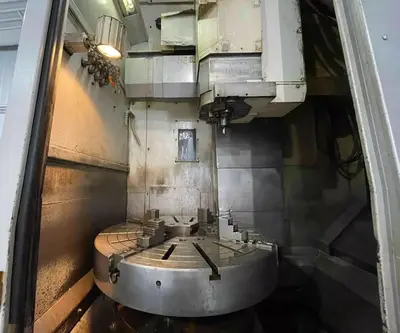

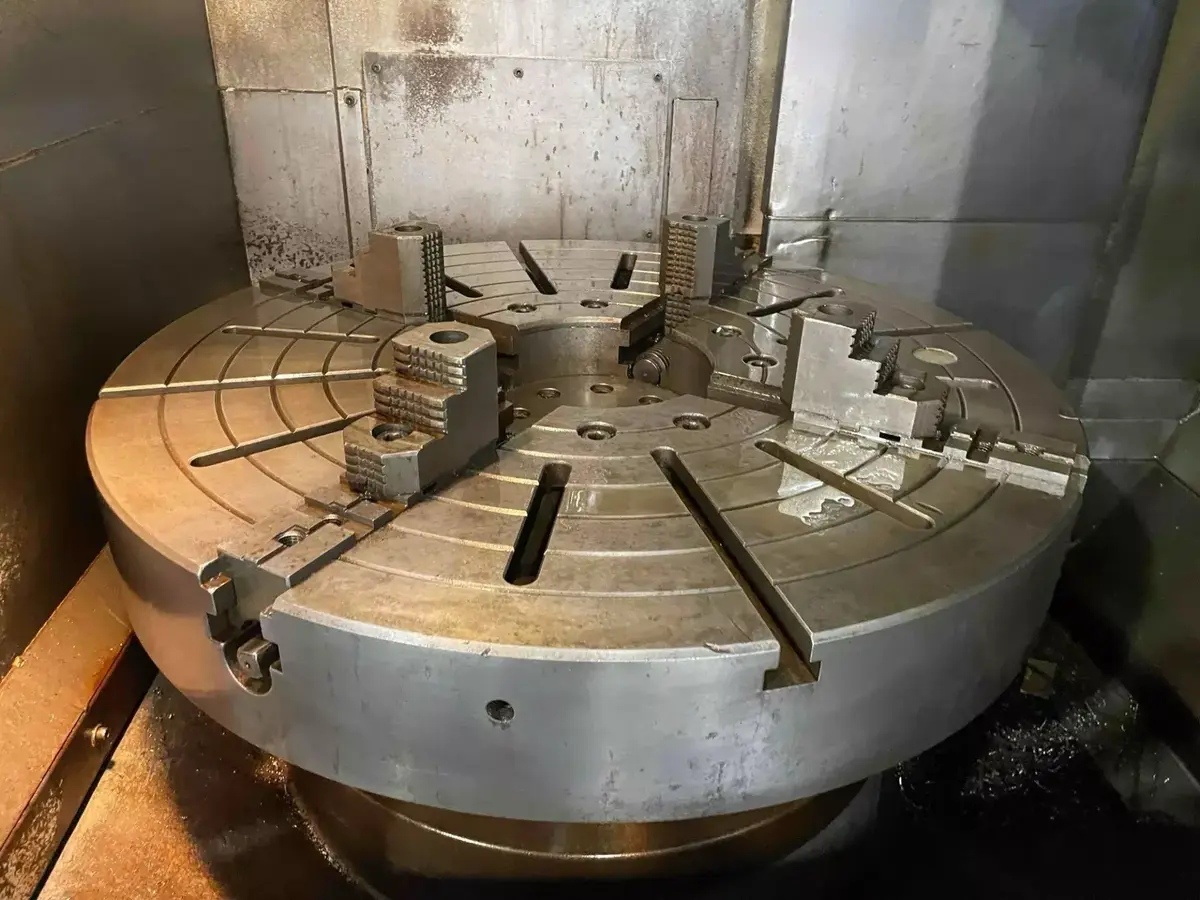

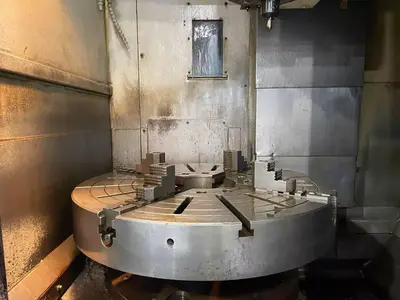

39.37″ 4-Jaw Chuck
C Axis Live Tool Turret
Cat 50 Taper Milling Spindle

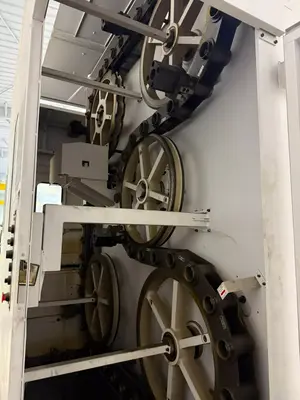

60 Station Automatic Tool Changer
A2-11 Spindle Nose
4.33″ Spindle Bore
Probing System (Tool Probe Included)
MP High Pressure Through Spindle Coolant

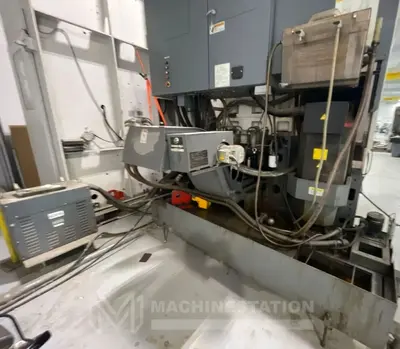

Rear Discharge High Top Chip Conveyor
Front Operator Foot Switches

Special Offered Price:....... $189,000.
