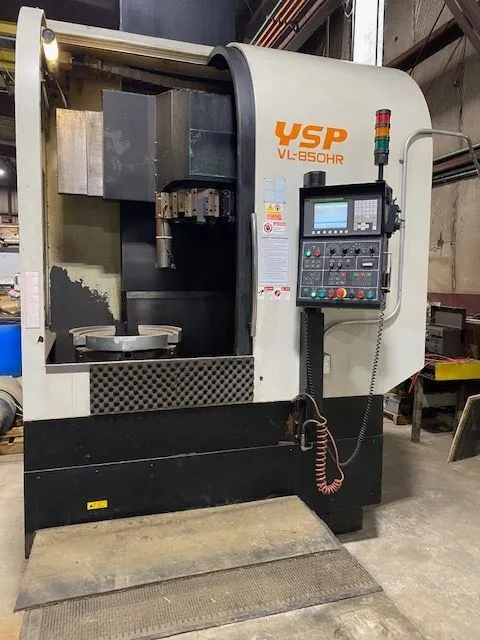

Used 2011 YU SHINE YSP VL-850HR | CNC Vertical Turning & Boring Centers
Have one to sell?
ConditionUsed
1 available

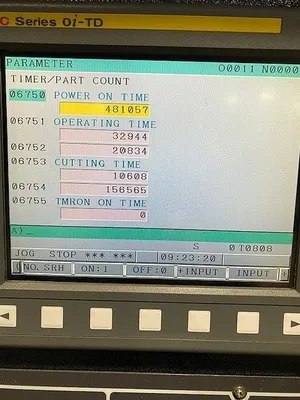

2011 YSP VL-850HR VERTICAL LATHE FANUC Oi-TD CNC CONTROL, All Fanuc Control and Spindle & Axis Drive Motors. Low Cutting Hour Light Aero Ring Parts. Mfg. Taiwan
Main Specifications:
Swing: 39.37 inches
Work Height-Under Turret Face 37.4 inches
Main Power: 60 horsepower 2-Speed Gearbox
Please Note: RPM: 750 Direct Drive
(Was 1500 RPM)
New Installed a 2:1 gearbox Pull for more torque
Easy Change Over back to 1500 RPM Set Up.
Dimensions: 88" X 169" X 159"
Weight: 28600 pounds

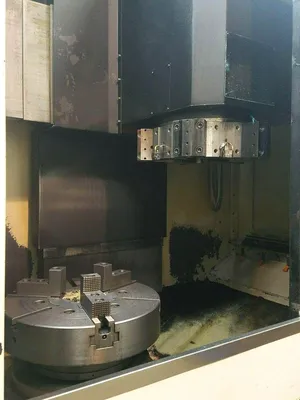

Chuck Size: 24" 3-Jaw Chuck
X-Axis Travel: 19.7 inches
Z-Axis Travel: 31.5 inches
Turret Capacity: 8 Station
Spindle Nose: A2-11
Spindle Motor: 60 HP
2011 YSP VL-850HR VERTICAL LATHE FANUC OiTD CNC CONTROL, All Fanuc Control and Spindle & Axis Drive Motors. Low Cutting Hour Light Aero Ring Parts. Mfg. Taiwan
Main Specifications:
Swing: 39.37 inches
Work Ht-U/R: 37.4 inches
Power: 60 horsepower
Please Note: RPM: 750 Direct Drive
(Was 1500 RPM)
New Installed a 2:1 gearbox pully for more torque
Easy Change Over back to 1500 RPM
FANUC 0iTD
Dimensions: 88" X 169" X 159"
Weight: 28600 pounds
Chuck Size: 24 inches
X-Axis Travel: 19.7 inches
Z-Axis Travel: 31.5 inches
Turret Capacity: 8
Spindle Nose: A2-11
Spindle Motor: 60 HP
Special Price:.... $ Please Email Requests.
Full Operational Videos on Request.
I thank you for review and considerations.
Sincerely,
Mark Murphy
