Used 2012 DOOSAN PUMA 400LC | CNC Turning Centers

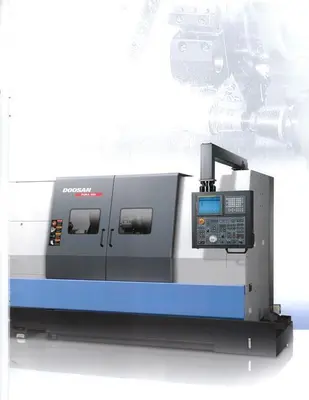

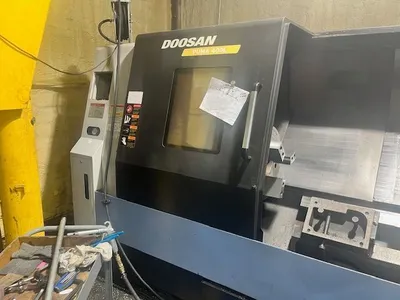

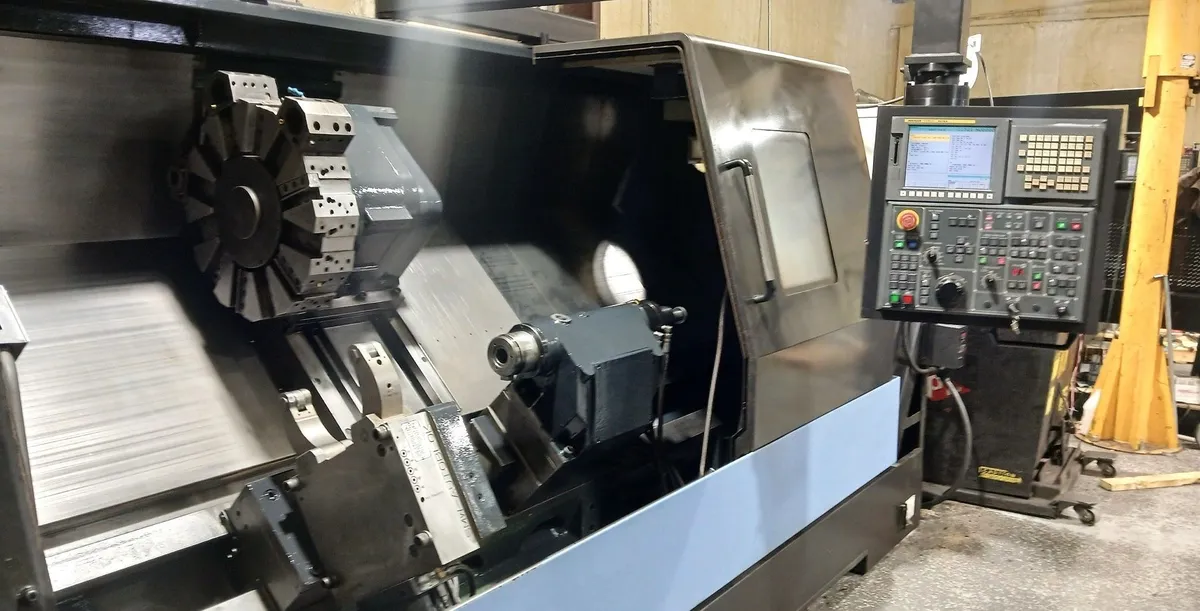

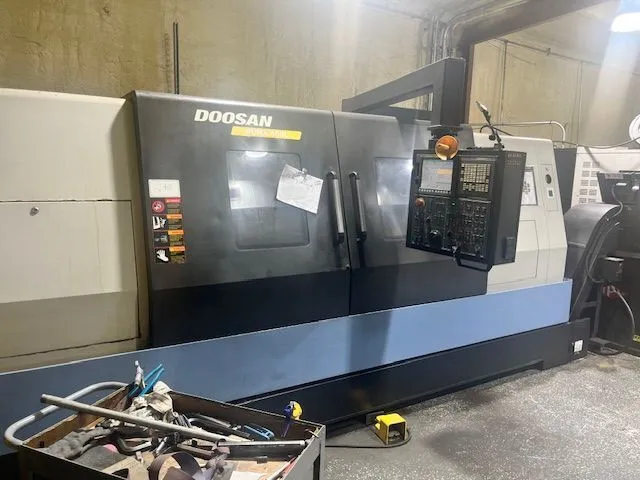

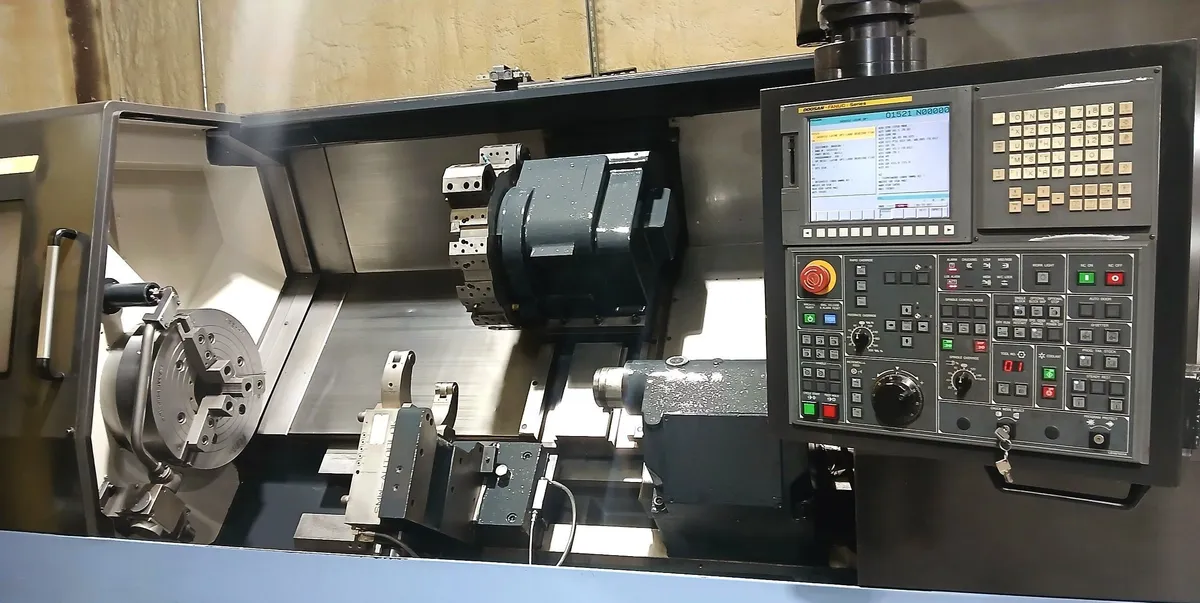

2012 Doosan Puma 400LC CNC Turning Center 6.5" Bib Bore and

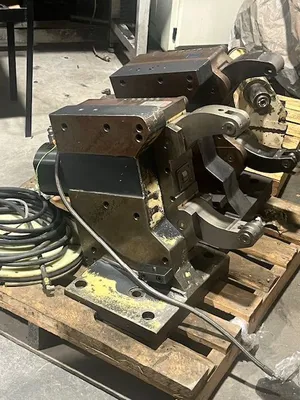

Installed SMW Auto Blok SLU-Z4 CNC Hydraulic Automatic Steady Rest 1.20” to 9.60” Capacity Steady Design has Z-Travel by Turret.

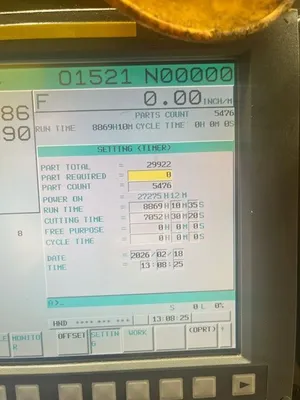

* Good Condition Very Low Cutting Hours 7,052 Cutting Hours!

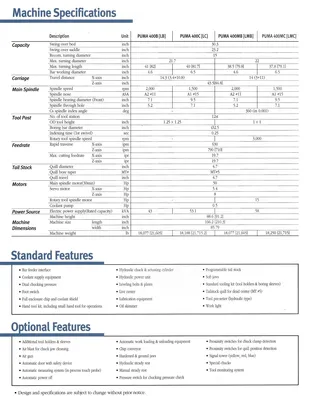

MAIN SPECIFICATIONS
Max Swing: 30.3”
Max Cutting Diameter: 21.7”
Max Cutting Length: 81.7”
X - Axis Travel: 14.1”
Z - Axis Travel: 84.8”
Chuck Size: 21”
Bar Capacity: 6.5”

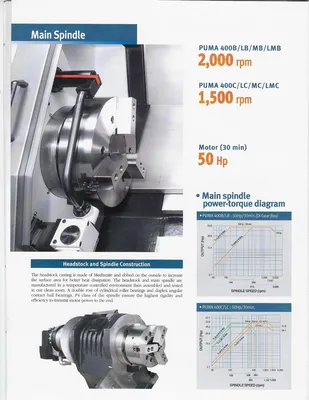

Spindle Bore: 7.1”
Spindle Nose: A2-15
Spindle Motor: 50 HP
Spindle Speed: 1,500 RPM
Turret Positions: 12

Equipped With:

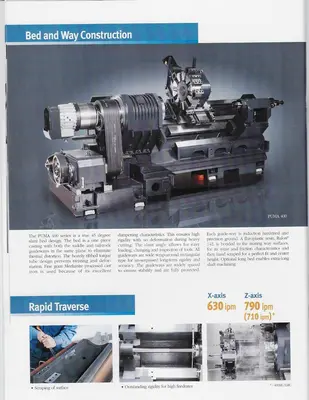

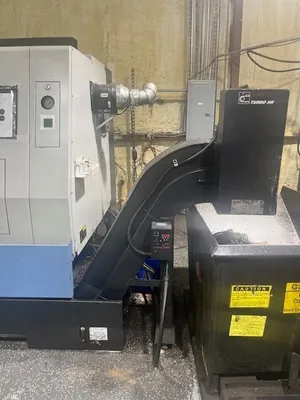

12 Station Turret, Auto Tool Setter, Tailstock and Chip Conveyor, Fanuc Oi-TD Control, 21” 3-Jaw Samchully (MH-221) Hydraulic Chuck 6.5" Bar Capacity, Tailstock, Tool Pre-setter, LNS Turbo Side Discharge Chip Conveyor, 145 PSI Coolant System, 2 Speed Gearbox, Heavy Duty Box Ways Construction.

I look forward to your questions and Interest. Under Power for
Inspections Re-Installing Steady Rest on Interfaced Bracket.
