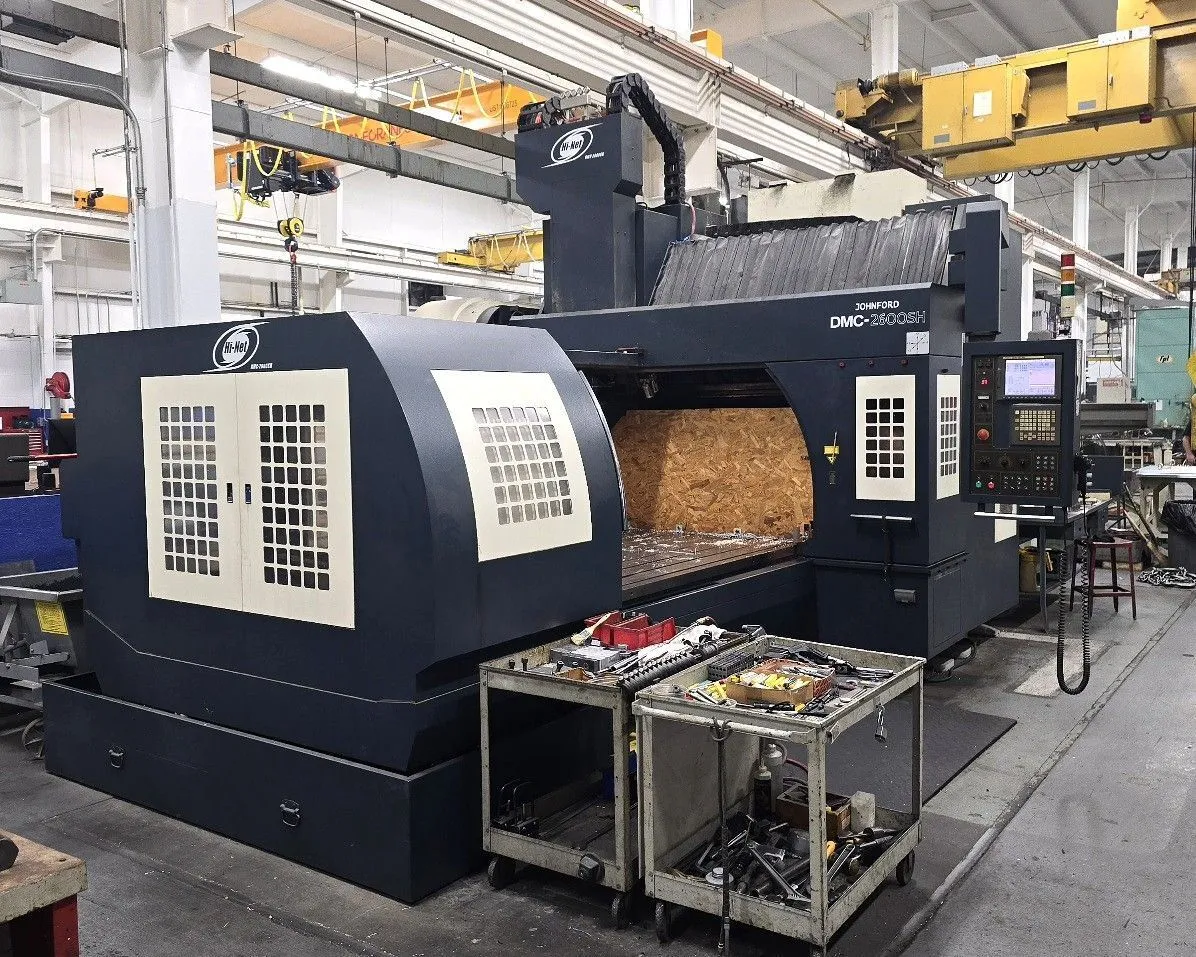

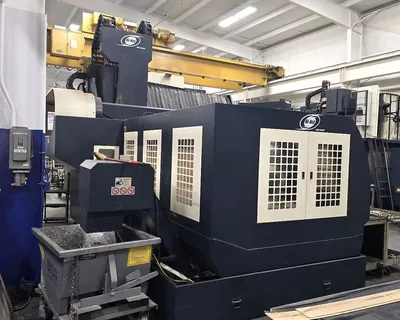

2006 Johnford DMC-2600-SH CNC Vertical Tilting Spindle 5-Axis Bridge Mill
Have one to sell?
ConditionUsed
1 available

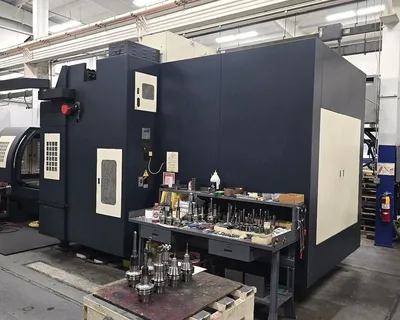

2006 Johnford DMC-2600SH 5-Axis CNC Bridge Mill

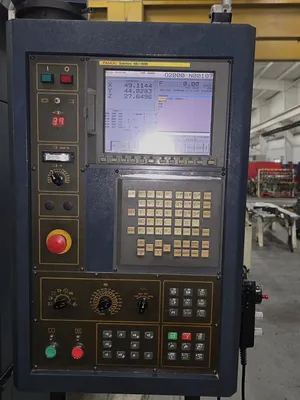

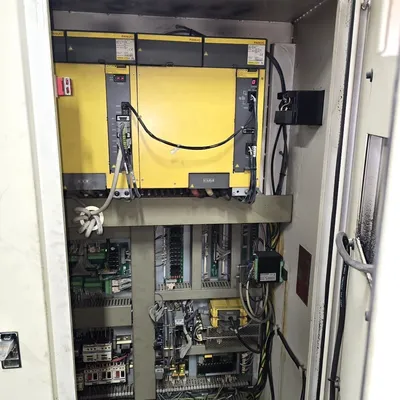

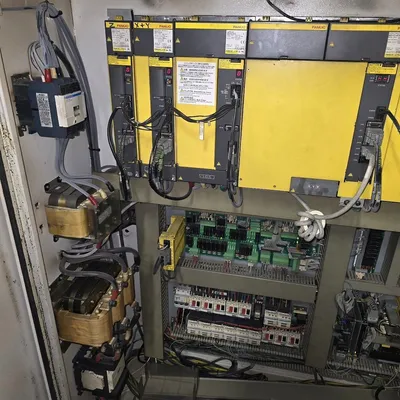

Equipped with Fanuc 18i-MB CNC Control
Main Specifications:
Table Working Surface 106.2" x 59"
Longitudinal Travel (X) Axis 102"
Cross Travel (Y) Axis 70" (with spindle vertical)
Vertical Travel (Z) Axis 31.5"
Spindle Rotation 360 Degrees
Spindle Tilt 180 degrees
Table to Spindle in vertical position (can be varied) 5.9" min / 37.4" max
Table to Spindle in horizontal position G5 (varied)
23.6" min / 55.1" max
Y Axis Distance Between Spindle 77.8" M5 / 66.9" G5
X Axis Distance Between Spindle 77.5" M5 / 66.6" G5
Distance Between Columns 72"
Maximum Workload on Table 22,000 LBS.

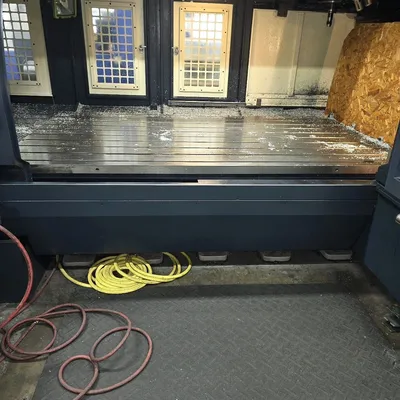

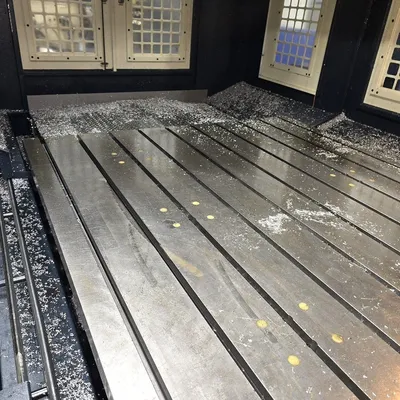

Table Surface Ground / T-slotted
No. of T-slots x Width 10 x 18mm

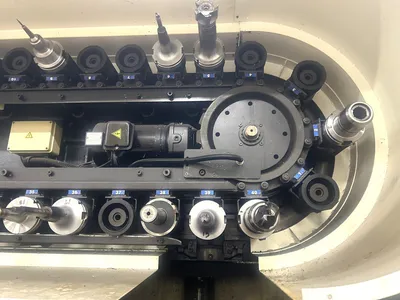

SpindleTaper HSK 100
Power 47 Hp.
Spindle Speed 10,000 rpm
2006 Johnford DMC-2600SH 5-Axis CNC Bridge Mill
Equipped with Fanuc 18i-MB CNC Control
Main Specifications:
Table Working Surface 106.2" x 59"
Longitudinal Travel (X) Axis 102"
Cross Travel (Y) Axis 70" (with spindle vertical)
Vertical Travel (Z) Axis 31.5"
Spindle Rotation 360 Degrees
Spindle Tilt 180 degrees
Table to Spindle in vertical position (can be varied) 5.9" min / 37.4" max
Table to Spindle in horizontal position G5 (varied)
23.6" min / 55.1" max
Y Axis Distance Between Spindle 77.8" M5 / 66.9" G5
X Axis Distance Between Spindle 77.5" M5 / 66.6" G5
Distance Between Columns 72"
Maximum Workload on Table 22,000 LBS.
Table Surface Ground / T-slotted
No. of T-slots x Width 10 x 18mm
Spindle Taper HSK 100
Power 47 Hp.
Spindle Speed 10,000 rpm
