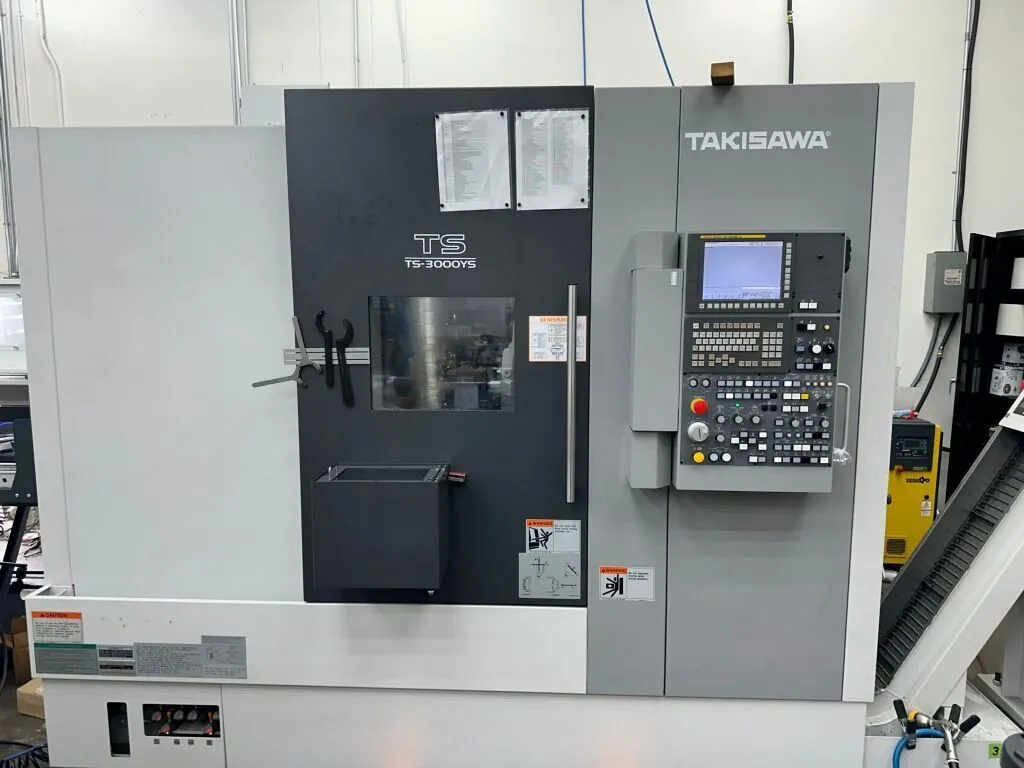

Used 2022 TAKISAWA TS-3000YS | 5-Axis or More CNC Lathes

Main Specifications

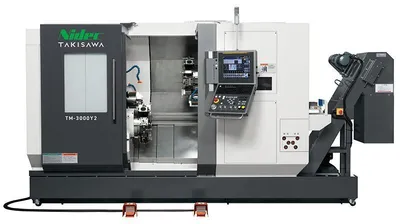

2022 TAKASAWA TM-3000Y2 CNC MULTI-AXIS TURNNIG CENTER WITH

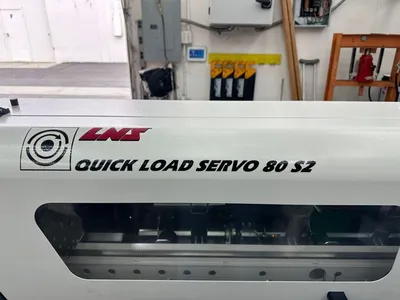

FULL C & Y AXIS TURRET AND INSTALLED AND INTEREFACE LNS QUICK
LOAD SERVO 80--S2 MAGAZING 6FT. BAR CAPACITY BARFEED AND ALL
AVAIABLE OPTIONS IN PHOTOS!

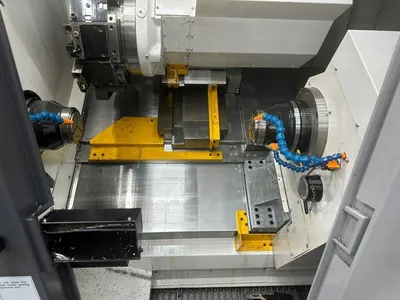

Upper Turret Y-Axis (Y1-Axis)
Lower Turret Y-Axis (Y2-Axis)
Sub Spindle Right Spindle
Chuck Size 8" Standard * Installed CNC Full Bore collet Chucks

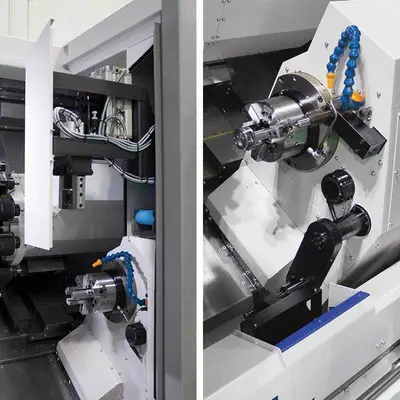

Type of Turret 12-Station C & Y Axis Turret (T12)
Max. Turning Diameter 14.5"
Max. Turning Length 21.65"
Bar Capacity 3.15 Thru-Hole Spindle Bore
Left Spindle Speed min-1 4500
Right Spindle Speed min-1 6000
Rotary Tool Speed min-1 6000
Rapid Traverse Rate (Upper Turret) m/min X1 : 20 / Y1 : 12 / Z1 : 40
Rapid Traverse Rate (Lower Turret) m/min X2 : 20 / Y2 : 12 / Z2 : 40
Left Spindle Motor (S3 25%/continuous) kW 15/11 (20Hp.)
Right Spindle Motor (S3 25%/continuous) kW 11/7.5 (15 Hp.)
Rotary Tool Motor (S3 25%/continuous) kW 5.5/3.7 (7.5Hp.)
Machine Height 87.7"
Required Floor Space L-173" x W-107.7 x D- 107.7"t
Machine Weight 18,260 lbs.

Features:
The highly rigid 45° slant bed
Upper/Lower Y-Axis (Y1/Y2-Axis +45～-45mm)
20 HP. 15/11kW High power & high torque motor spindle!
Stronger Milling Motor (7.5 Hp.) 5.5/3.7kW
Optional Factory Supporting automation.

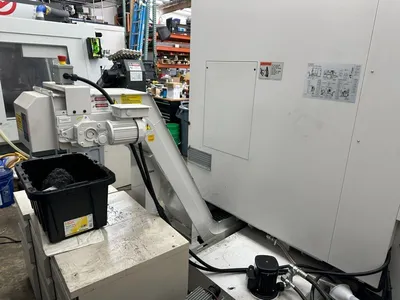

Optional Factory unloader and discharge conveyor.
Price on Request.

Sincerely,
Mark Murphy
