Used 2012 MURATEC MD-120G | CNC 3-Axis Turning Centers

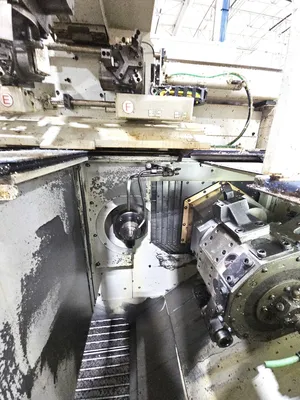

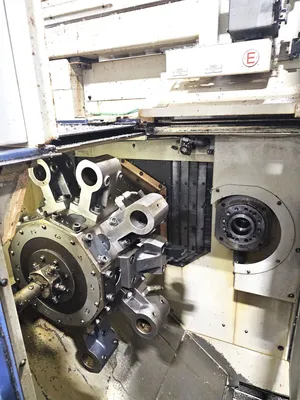

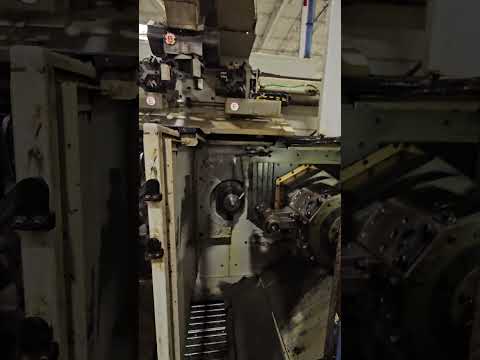

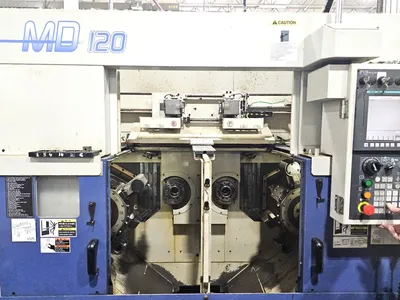

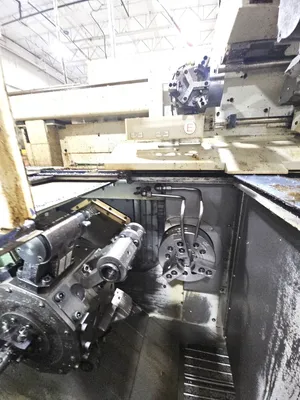

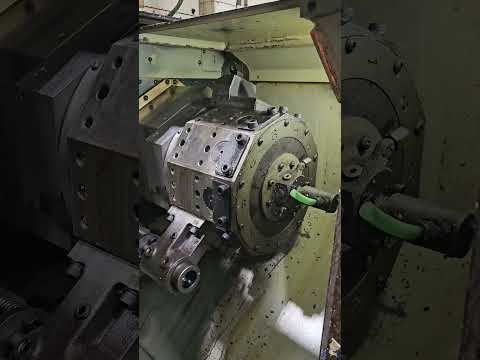

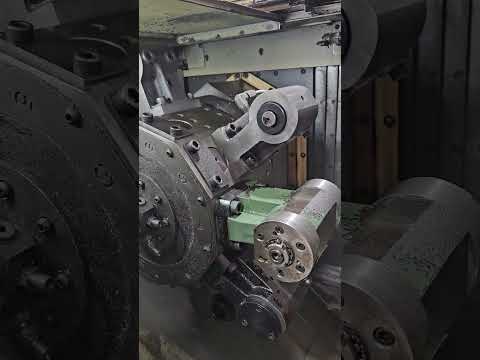

(1 or 2) 2012 Murata MD-120G 3-Axis Live Tool Twin Spindle Turning Center with Overhead Gantry Loader Input Stocker Feeder Table with Murata Optional W/S Turret Bar Added Rigidity and tool stations and larger 3-Axis Milling Diameters Live & Static Tooling and Output Part Conveyor.

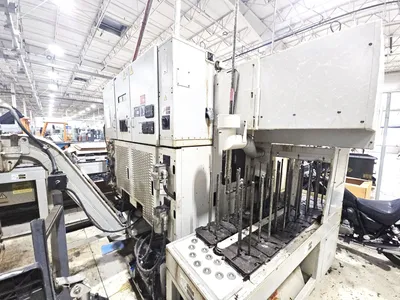

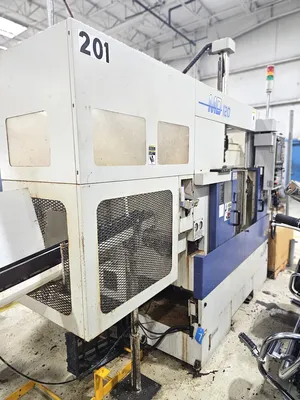

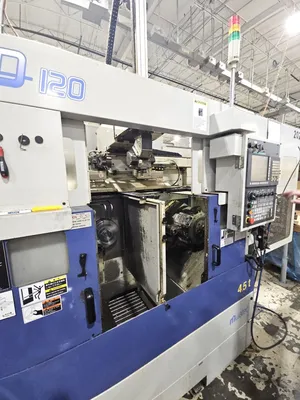

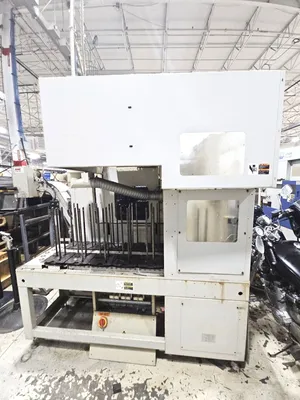

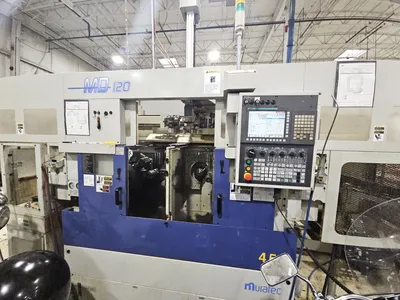

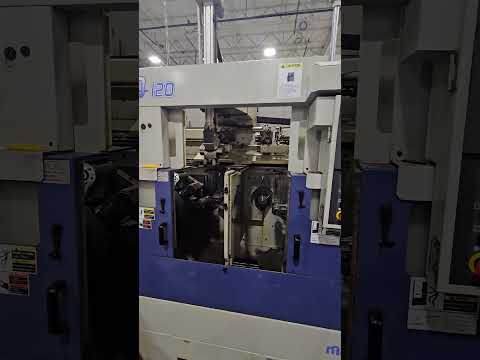

2012 Murata MD-120G CNC Twin Spindle with Fanuc 31iT CNC Control, Murata WF-14L-160 14 Pallet Stocker (2) Murata MD-120 Live Tool Drilling Units Installed on Machine in P

Special Chucks Removed w/ Air Blast- Coolant w/Part Confirmation Installed for Set up on Production Machining Operation.

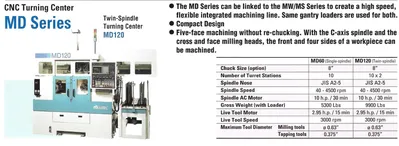

Main Specifications:
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 6" or 8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 2- 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate C-Axis Milling & Drilling Feature
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"

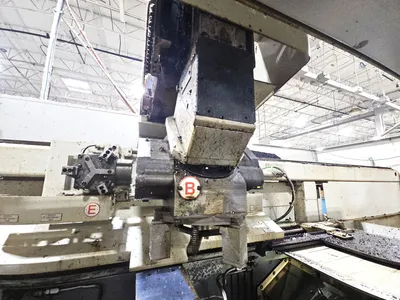

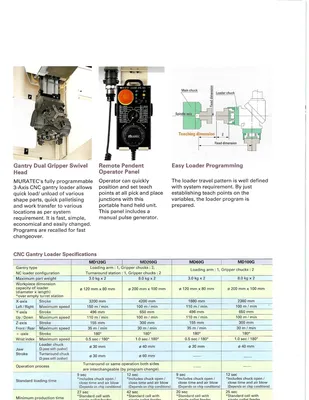

Standard Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Work piece Weight: 8 Lbs. x 2

Equipped with:

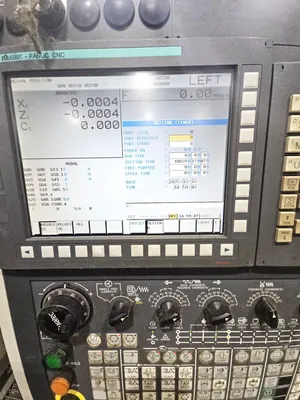

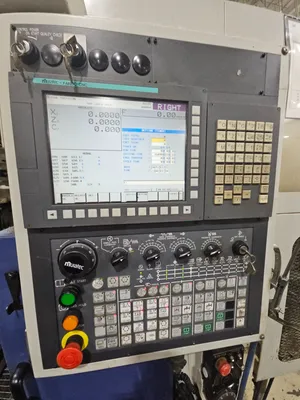

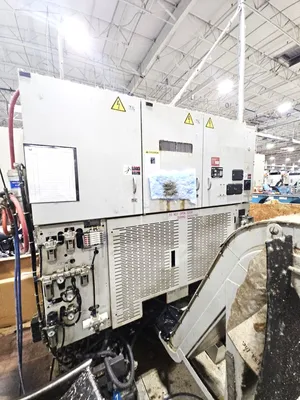

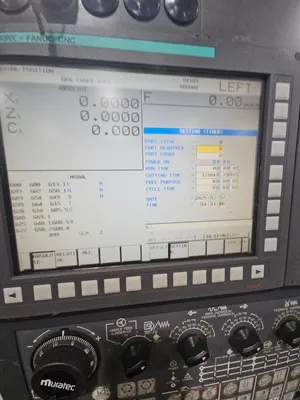

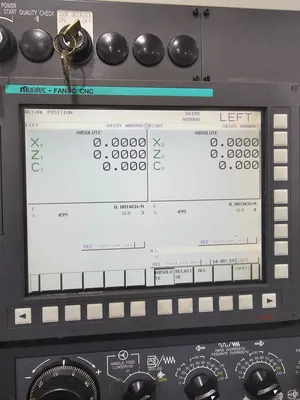

Fanuc 31iT CNC Control, (1) Overhead Gantry Loaders, Rear Chip Conveyor,
Coolant Tank and Pump, All Book & Manuals, A2-5 Spindle Nose M-Code Air Blast and Coolant Blast Through Chucking Center
Part Work Location Confirmation,
LNS - Turbo HB Tall Discharge Chain Type Chip Conveyor

Special Reduced Price:.... Please Email Request for Quotations.

Terms: Payment in Full Prior to Shipment.

F.O.B: Machine Prep & Rigging Price on Request.

I look forward to reviewing more details and your project application needs for Twin-Spindle Gantry Loader applications and pleased offer this Rare CNC Twin Spindle with Live Tooling Features and I look forward to your questions.
