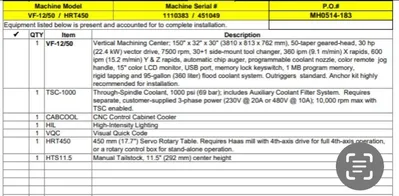

2014 HAAS MODEL VF-12 / 50 TAPER CNC VERTICAL MACHINING CENTER WITH HASS 450 BIG BORE FULL FORTH AXIS ROTARY TABLE.
INSTALLED & 1000 PSI THRU SPINDLE COOLANT SYSTEM INSTALLED WITH ALL OPTIONS.

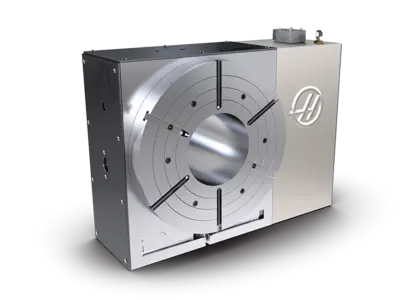

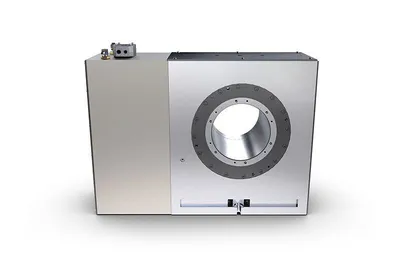

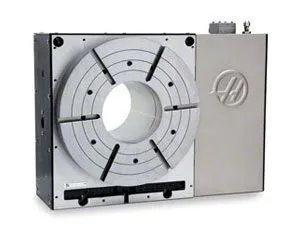

Haas HRT-450 CNC Rotary Tabel New Price: $35,095 For holding medium to large parts or fixtures, the HRT Series of T-slotted rotary tables is the answer. This high-capacity, heavy-duty table mounts vertically, and features a large through-hole for bar feeding and special fixture-locating requirements. Chucks and fixtures can easily be bolted to the table using the six precision T-slots.
* Top Condition Under Power for Inspection!

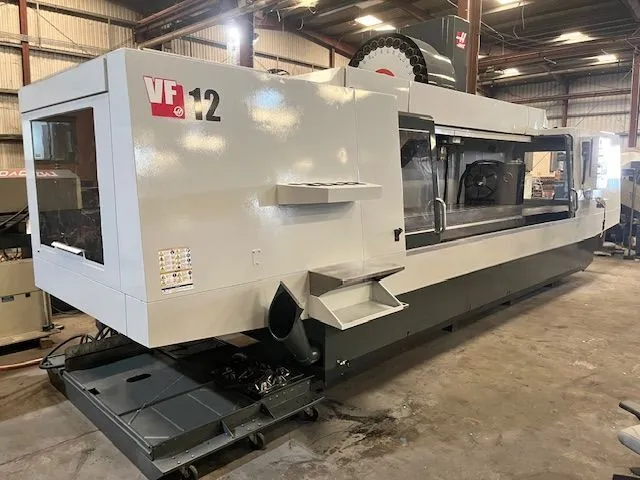

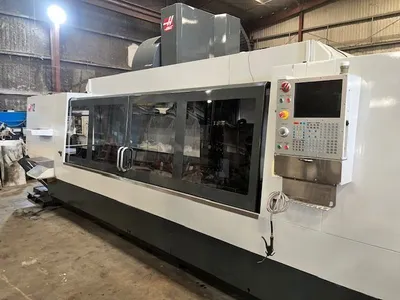

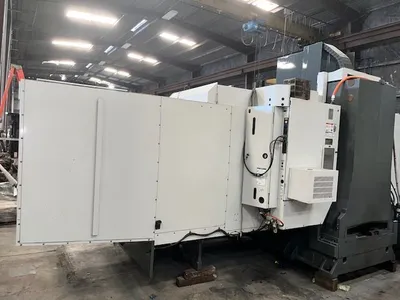

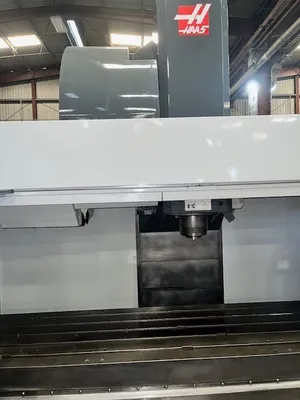

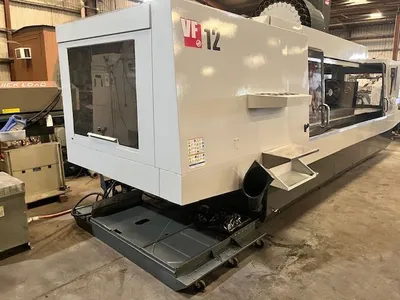

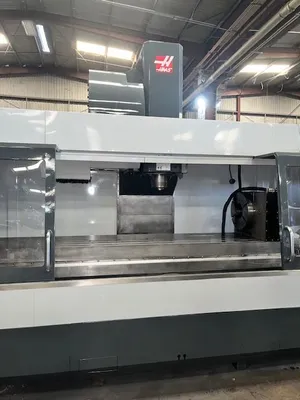

2014 HAAS MODEL VF-12 CNC VERTICAL MACHINING CENTER
WITH HASS 450 BIG BORE FULL FORTH AXIS ROTARY TABLE
1000 PSI THRU SPINDLE COOLANT INSTALLED WITH ALL OPTIONS.
MAIN SPECIFICATIONS

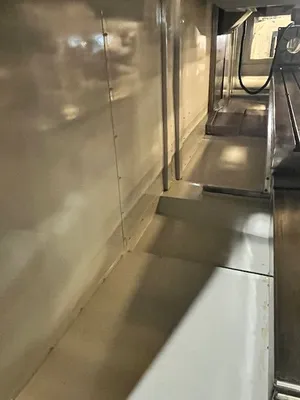

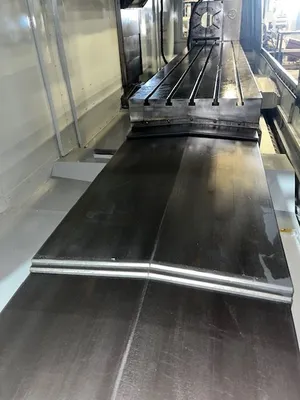

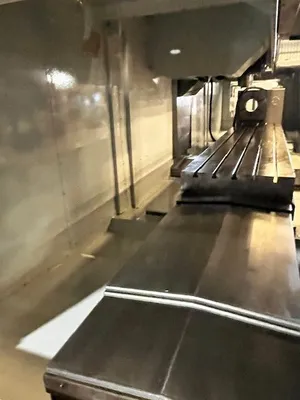

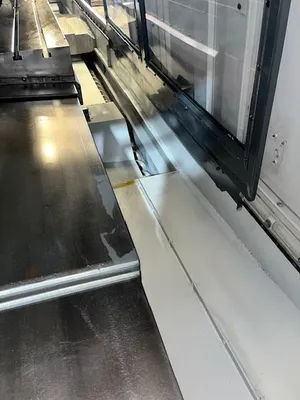

Table Size 150" x 28"
Maximum Table Load 4,000 lbs
X-Axis Travel 150"
Y-Axis Travel 32"
Z-Axis Travel 30"

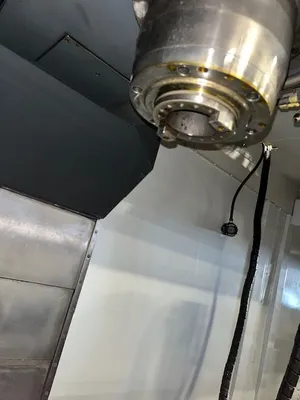

Spindle Speed 7,500 rpm - 2 Speed Gear Box
Spindle Taper CAT 50
Spindle Motor 30 HP Distance Spindle Nose to Tabletop 4" - 34"

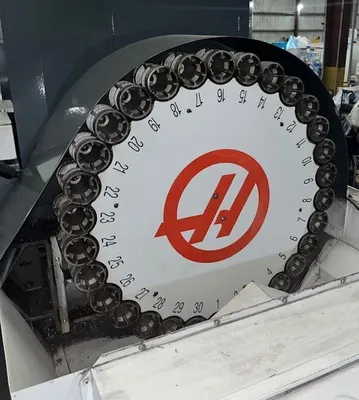

Tool Magazine Capacity 30 Station Side
* Scale Feedback on X AXIS
* Side Mounted Arm Type Tool Changer
Rapid Traverse Rates X / Y, Z 360 IPM / 600 IPM
Thru Spindle Coolant 1000 PSI Programable Coolant Nozzle
Auxiliary Coolant Filter
Probe Ready
Visual Quick Code Programming
User-Definable Macro
Spindle Orientation
Coordinate Rotation & Scaling

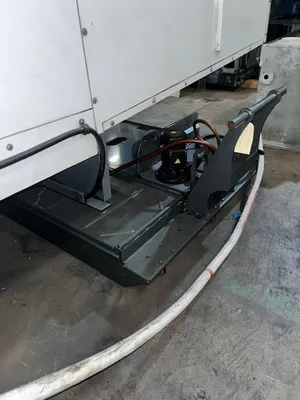

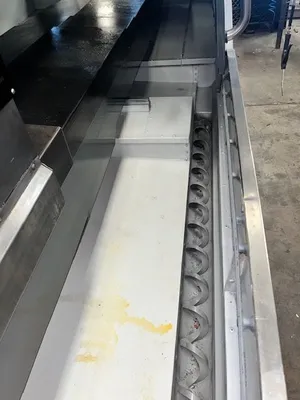

Auger Style Chip Conveyor

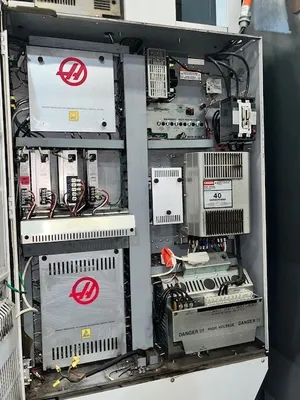

CNC Control Cabinet Cooler
Rigid Tapping
High Intensity Lighting
Color Remote Jog Handle

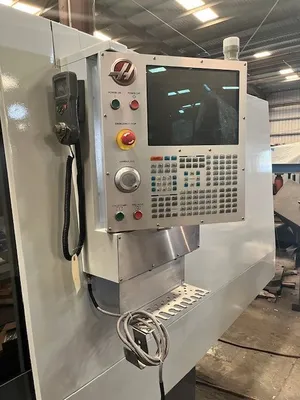

15" Color LCD Monitor
1 MB Program Memory
95 Gallon Flood Coolant System
USB Port Interface
RS 232 Port Interface

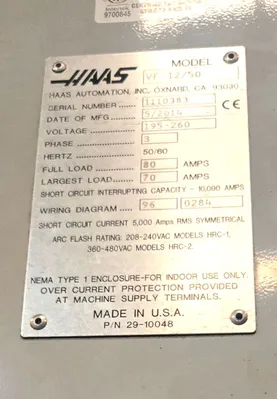

230V 3 / 60

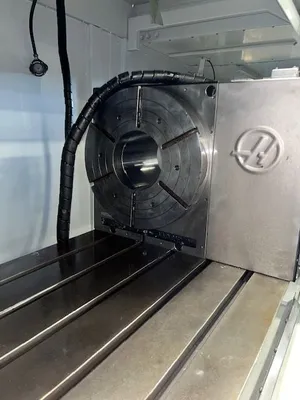

Haas HRT 450 Installed
* Scale Feedback on X AXIS
* Side Mounted Arm Type Tool Changer
Rapid Traverse Rates X / Y, Z 360 IPM / 600 IPM
Machine Dimensions L x W x H 343"x110"x130"
Machine Weight 37,300 lbs.
Top Condition Under Power for Inspection.
