Used 2016 TAKANG TKV-1100 HT | CNC Lathes

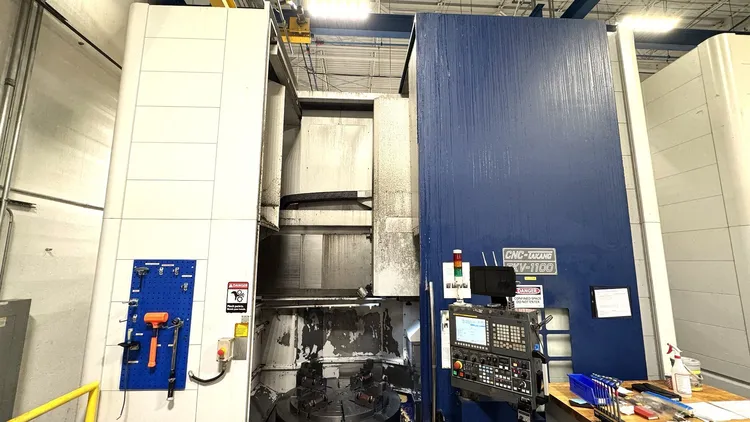

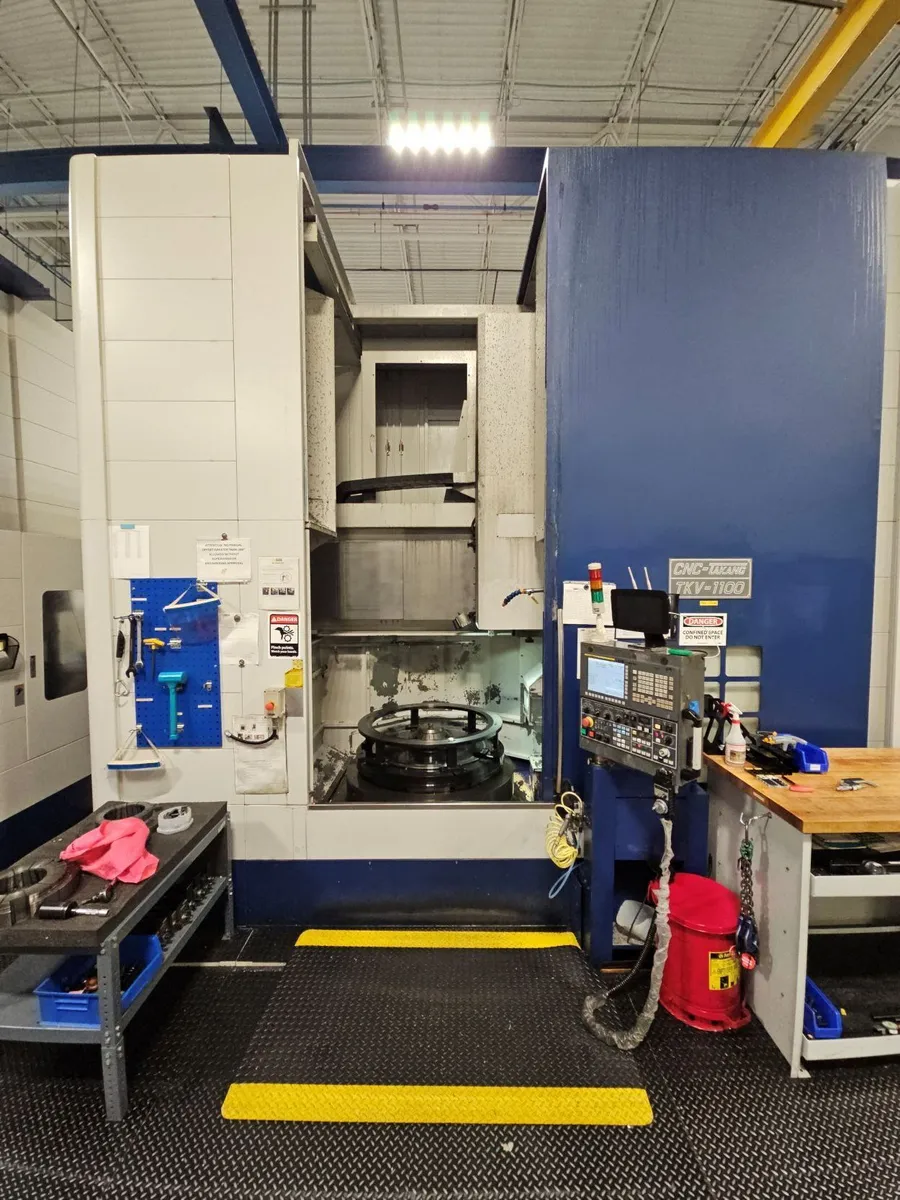

2016 TAKANG TKV-1100-HT CNC HEAVY DUTY VERTICAL
TURNING CENTER WITH FANUC OiTD CNC CONTROL

* Many Advantages on Part Set Up and Processing Speeds
With 12 Station Cat 50 Taper Automatic Tool Changer Vs
CNC Ram VTL Speeds & Cycle Time Set Up Productivity.

Main Specifications:
Max Swing:...........................................47"
Machining Length :,.............................31.4" Standard
Optional Off-Set Toolholders Added Clearance
2 Axis Cat 50 Taper w/12 Station Auto ATC

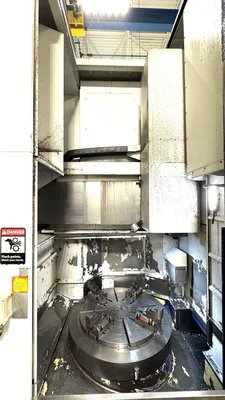

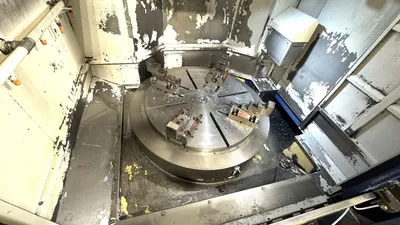

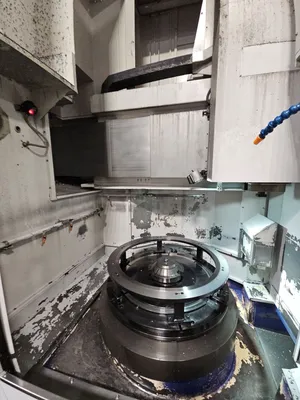

Chuck Size 40" 4-Jaw Combination Table
Main Spindle Motor Power:.................50 hp
Max RPM's:......................................... 400 RPM
Max Turning Dia:................................ 47"

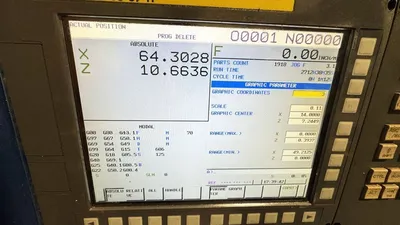

CNC Control :......................................Fanuc 0iTD
Machine Weight:................................35,720 Lbs.

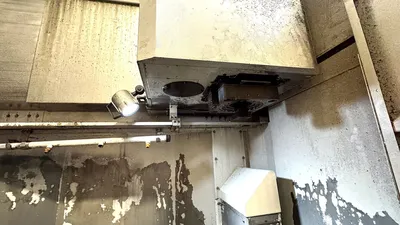

Turret
Turret Type V12
Max. Number of Tools 12
Curvic Coupling Diameter 11.42"
Clamping Force 12,590 lbs.
Standard Turning Tool Size Cat 50 Taper
Machines Factory Options Equipped With:

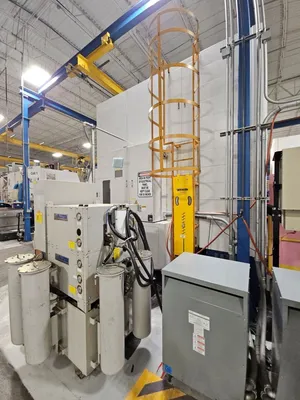

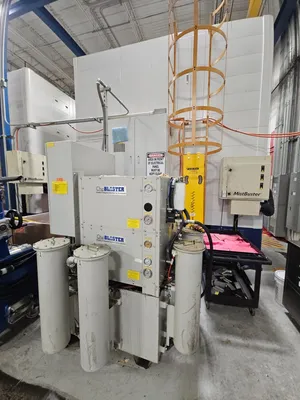

Prep for 1000 PSI Coolant Systems
40" 4-Jaw Combination Chucks Installed Confirming Models
Rear Discharge Lift-Up Chip Conveyor
Automatic Power Door
Coolant Tanks and all Pumps Installed
2-Speed ZF-Gear Box Motors-60 HP
All Available Turning & Boring Bar Tool Holders
Automatic Quick Arm Type Tool Setter and Renishaw Transducers
Factory 480v Step Down 208v Multitap 85 Kva Transformer
Oil Mist Filter Installed Units

Special Machine & Options Pricing. $ Please Email Requests

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Machine Requires Prep & Local Rigging.

I thank you for your review and consideration and look forward
to reviewing your questions and interest and machine is fully
Installed Under Power for Inspection or Technician Report.
