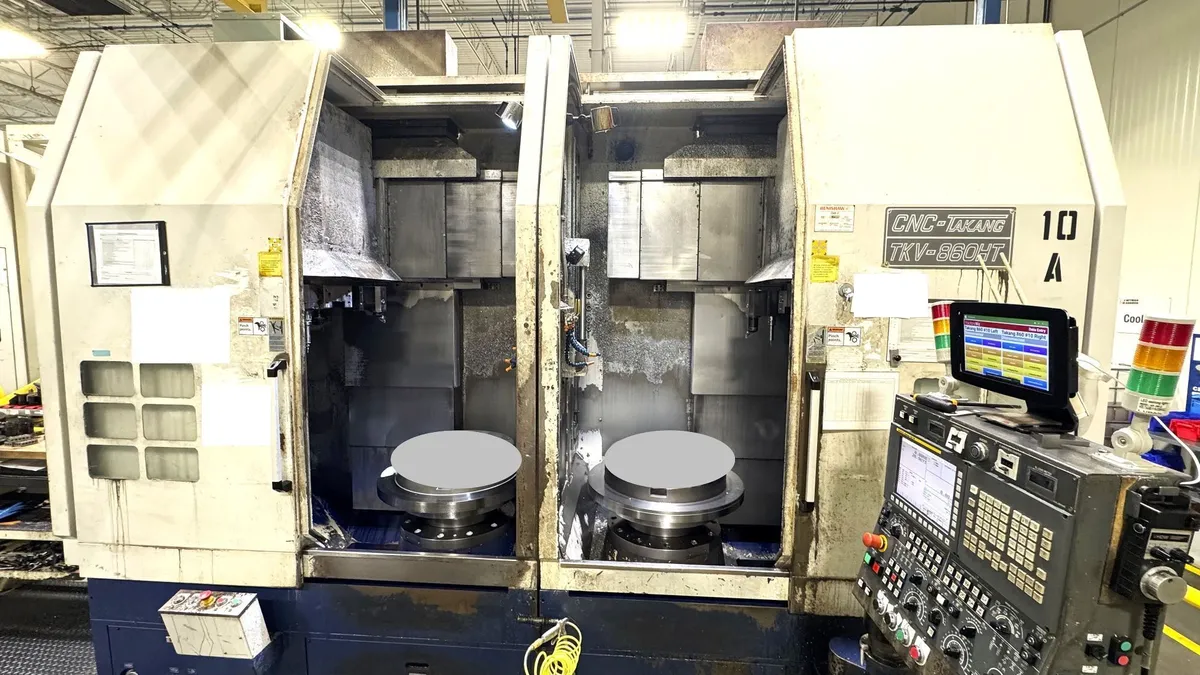

2015 Takang TKV-860-HT CNC Twin Spindle Vertical Turning Center with All Installed Options

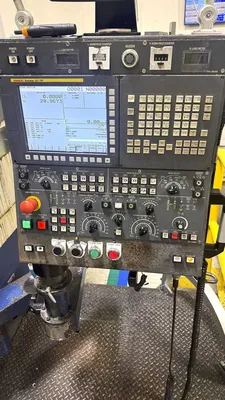

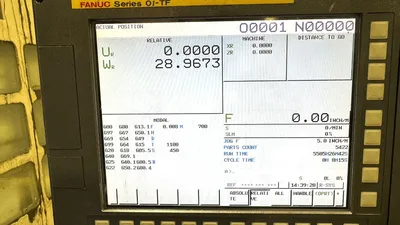

2015 Takang TKV-860-HT CNC Twin Spindle Vertical Turning Center in Very Good Condition with 2- 31.5" 3-Jaw Chucks, * Confirming Top Work Holding 2-Rear Discharge Chip Conveyors, 2-Auto Doors with 2-Speed ZF Gearbox Motors and Fanuc OiTD CNC Control *Only 5,505 Cutting Hours.

* Many Advantages on Part Set Up and Processing Speeds with
CNC Twin-Spindle A-B Operation Productivity

Main Specifications:
Max. Cutting Diameter 31.50" - 39.9"
Max. Swing Diameter 39.37"
Max. Cutting Length 33.85" (860mm)

Spindle
Spindle Motor (FANUC aP40) 2-50 HP Alpha P40 2-Speed Gearbox Motors!

Spindle Speed Range 10 - 1,500 RPM
Max. Chuck Diameter Optional 36" Capable

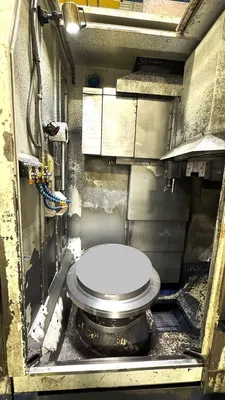

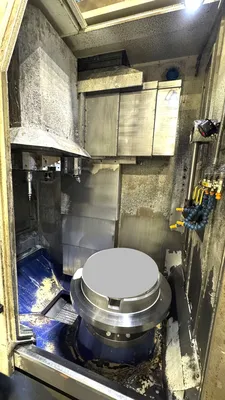

Standard 31.5" 3- Jaw Hydraulic Chucks
Spindle Nose A2-11
Front Bearing Diameter 7.87"

Spindle Bearings Double Row Cylindrical and Angular Contact
Spindle Speed Selection Direct RPM Programming
Spindle Speed Override 50% - 200%
Speed Range Shift 2- Speed Gearbox Programmable High-Low Range

Axis Drives
X Axis Travel (FANUC a22/3000i AC 4.0 HP) 18.31"
Z Axis Travel (FANUC a22/3000iB AC 5.0 HP) 33.07"
X Axis Thrust Force 2,950 lbs.
Z Axis Thrust Force 3,170 lbs.
X Axis Ball Screw Diameter/Pitch 1.57"/ 0.47"
Z Axis Ball Screw Diameter/Pitch .97"/ 0.47"
X & Z Axis Rapid Traverse Rate 630 IPM

Feedrates 0.00001 - 18.18 IPR

Feedrate Override 0 - 200%

Cooling System for Ballscrews (to minimize expansion) Forced Oil

Turret
Turret Type V12
Max. Number of Tools 12
Curvic Coupling Diameter 11.42"
Clamping Force 12,590 lbs.
Indexing Time (station to station) 0.7 sec
Standard Turning Tool Size 1.25" x 1.25"
Max. Boring Bar Size 2.0" & 2.5"
Machine Electric 85 KVA Transformer
Slide way Lubrication Pump Motor AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) AC 620w
Machine Light AC 100v-20w

Reservoirs:
Hydraulic Tank 10.6 gal
Slideway Lubrication Tank 1.59 gal
Coolant Tank 118 gal

Machine:
Height 13.3' (160.0")
Floor Space Requirement 8.0' x 9.0' (96.0" x 108.0")
Weight 63,934 lbs.

Automatic Open/Close Splash Guard Chip Conveyor (2 Rear Discharge)

Chuck Cylinders – Chuck Open/Close Direction Change (key switch)
Chuck Open/Close Confirmation (Prox. Switches)
Memory Protect Key Switch
One Color Signal Tower Chuck Open/Close (Push Button)
Cycle Completion Alarm & Light Door Interlock
High Pressure Coolant (57 psi) Mounting Plates and Leveling Screws
Multi-tap Transformer Tool/Work Counter on Screen
Spindle Orientation High Pressure Coolant 120 psi
Preparation for Quick Tool Setter Halogen Light

Machines Factory Options Equipped With:

2- 31.5" 3-Jaw Chucks Installed Confirming Models
2- Rear Discharge Lift-Up Chip Conveyors
2-Automatic Power Doors
Coolant Tanks and all Pumps Installed
2-Speed ZF-Gear Box Motors 2-40 HP 40k+ New Cost Options
All Available Turning & Boring Bar Tool Holders
Automatic Quick Arm Type Tool Setter and Renishaw Transducers
Factory 480v Step Down 208v Multitap 85 Kva Transformer

Special Price Machine with All Options:....$ Please Email RFQ.

* Please Note: New Machine Costs with All Factory Options 450k.

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Machine Requires Prep & Local Rigging.

I thank you for your review and consideration and look forward
to reviewing your questions and interest to Inspect Under Power!
