Used 2015 SAMSUNG SL45/2000BB | CNC Lathes
Have one to sell?
ConditionUsed
1 available

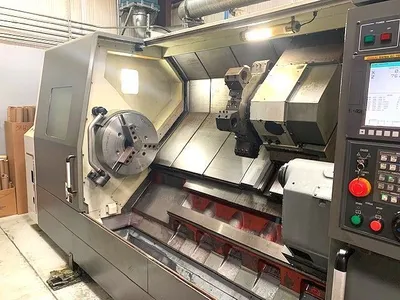

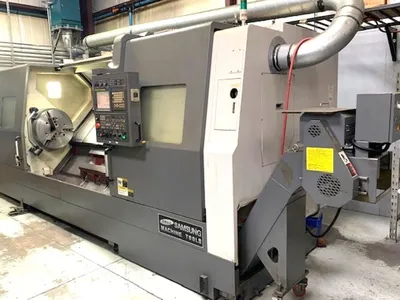

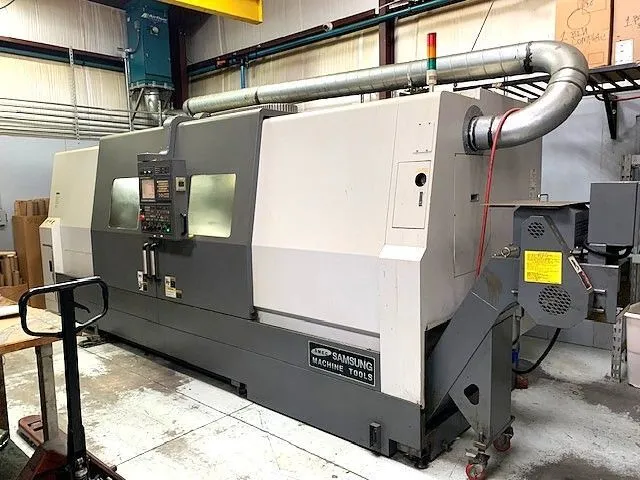

(1) 2015 Samsung SL-45 CNC lathe is a heavy-duty machine with generally equipped with 6.5" bar Capacity 30.51 Inch Swing Over Bed and 82" Center Distance Depends Measurements Face of Chuck to Tailstock Quill or if bar Capacity Helps.
(1) 2015 Samsung SL-45 CNC lathe is a heavy-duty machine with generally equipped with 6.5" bar Capacity 29.7" to 30.51 Inch Swing Over Bed and 82" Center Distance Depends Measurements Face of Chuck to Tailstock Quill or if bar Capacity Helps.
Samsung lathes are equipped with a Fanuc CNC control and often feature a hydraulic chuck, a 12-station turret, and a powerful spindle motor, such as a 50 hp main motor. General specifications
Specification
Swing over bed 30.51"
Maximum turning diameter 26.7"
Max turning length 82" Confirming Set Up!
Bar capacity 6.5"
Spindle bore 7.125"
Axis travel: X-axis: 13.78

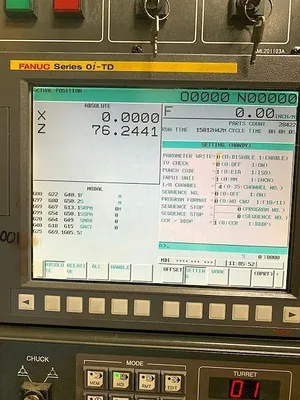

CNC Control Fanuc Oi-TD
Main Motor 50 hp
Spindle Speed Up to 1,800 RPM
Turret and tooling

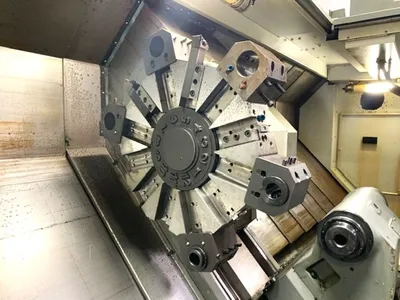

Tooling capacity 12-station turret
Turret indexing 0.25 seconds
Other features
Chuck size: 24" hydraulic chuck Installed
Axis travel: X-axis: 13.78"
Main Construction Mehanite casting with a
45-degree slant bed design for rigidity
Special Offered Asking Price $ Please Call for Quotations
Sincerely,
Mark Murphy
Murphy Murphy
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: www.murphymachinery.com
