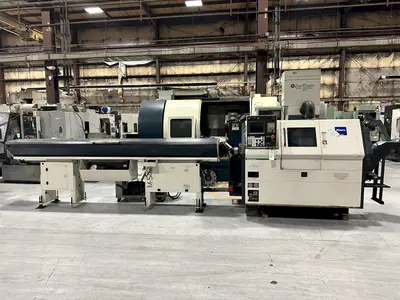

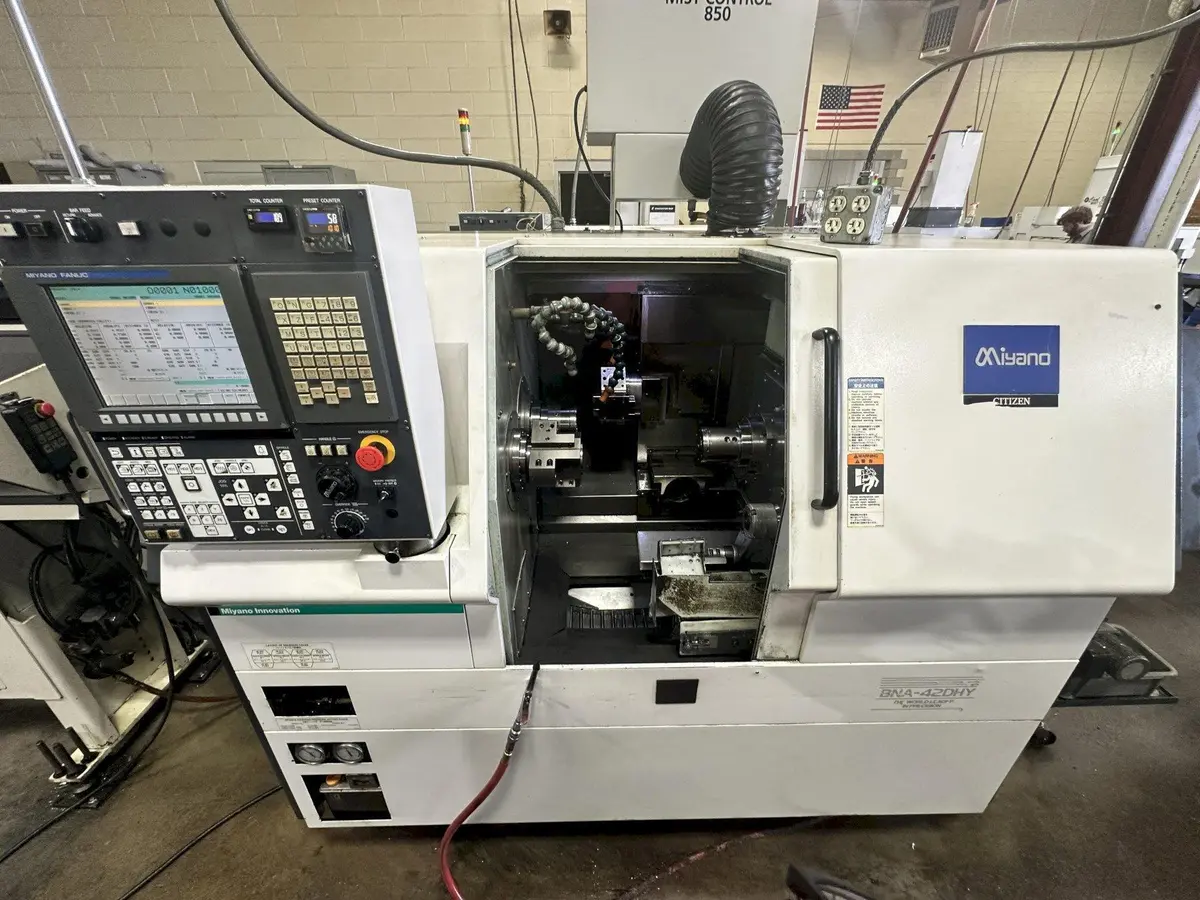

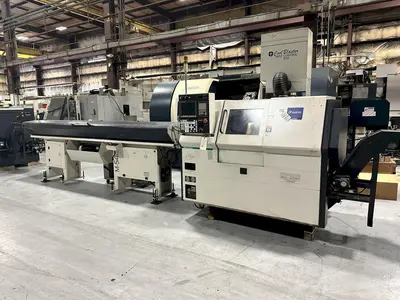

2013 Citizen Miyano BNA-42DHY Fanuc 0i-TD CNC Control Edge Technologies 12ft Bar Feeder Live Tooling & Y Axis Sub Spindle (2) Turrets: 8 + 6 Stations Loaded with All Options

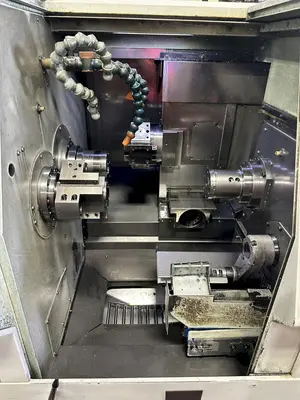

2013 Citizen Miyano BNA-42DHY Fanuc 0i-TD CNC Control

Edge Technologies 12ft Bar Feeder Live Tooling & Y Axis Sub

Spindle (2) Turrets: 8 + 6 Stations

SPECIFICATIONS
# Axis 7 7
Chuck Size 5 in
Center Distance 3.94 in
Bar Capacity 1.65 in
X Axis Travel 5.51 in
X2 Travel 5.51 in
Z Axis Travel 9.25 in
Z2 Travel 12.20 in
Y-Axis Travel 2.75" ± 1.37"
C1/C2 Axis Index 0.001°
Y Axis yes
Spindle Nose Flat
Spindle Speed 6,000 rpm
Main Motor 10 hp
Sub Spindle yes
Sub Spindle Chuck Size 5 in
Sub Spindle Speed 5,000 rpm
Sub Spindle Motor 7.3 hp
Live Tooling yes
Live Tooling Speed 5,000 rpm
Live Milling Motor 3.7 hp
Machine Weight 6400 lb

EQUIPPED WITH
- Miyano Fanuc 0i-TD CNC Control

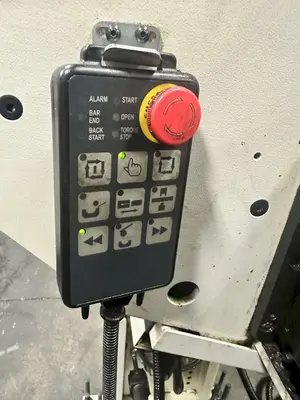

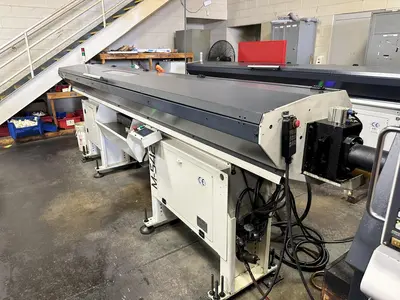

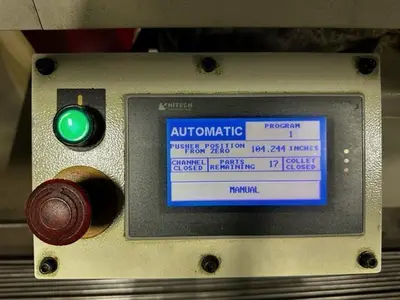

- Edge Technologies M-542 Bar Feeder

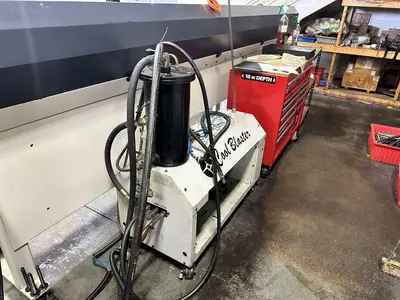

- Cool Blaster Coolant Thru System
- Cool Blaster Mist Control 850

Murphy Machinery Office: 262-534-4124 Mobile: 414-520-0843 Website: www.murphymachinery.com Email: markmurphy@murphymachinery.com
