Used HYUNDAI WIA L500LMA | CNC 3-Axis Turning Centers

Description

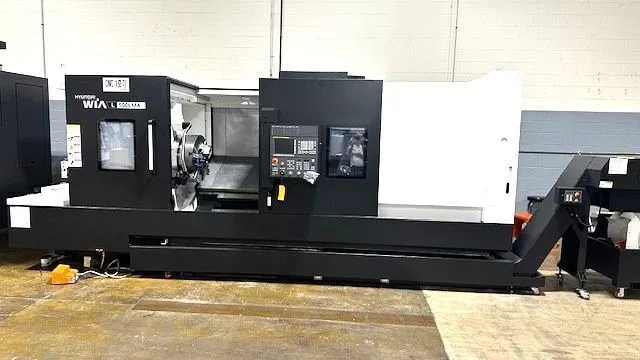

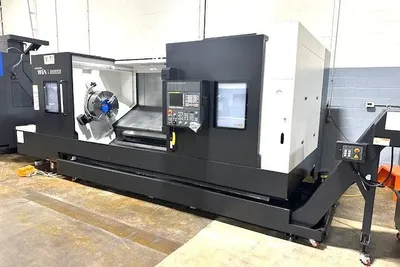

2024 HYUNDAI WIA L500LMA CNC Turning Center. Features 3-axis, 24" chucks, 10.8" Spindle Bore, 60 hp spindle, Fanuc 32iB Series CNC Color Control, Side Discharge Chip Conveyor, Auto Tool Pre-setter, Full C-Axis Live Tooling Milling & Drilling.

*Like New Condition Machine with Only 200 Power On Hours

Main Specifications:
Swing Over Bed 40.6"
Machining Length 82.7"
Chuck Size 2 - 24" 3-Jaw 10.8" Big Bore
Spindle Nose A1-15
Spindle Bar Cap 10.8"
Turning Diameter 27.2" Shaft Diameter
Spindle Speeds 10.8 RPM
Spindle Horsepower 60 hp 2-Speed Gearbox
Spindle Bore Diame 10.8"
Rapid Traverse Rate - X 788 in/min.
Rapid Traverse Rate - Z 709 in/min.
Turret Configuration 12 Station
Turret Rotary Tool Spindle Speed Max 4,000 RPM
Turret Rotary Tool Horse Power 15 hp
Tail stock Quill Diameter 5.2"
Tail stock Taper MT 5
Tail stock Quill Travel 5.2"
Programmable Tail stock Yes
Tail stock Travel 82"
Muilt# Axis Full C-Axis
Bar Capacity 10.8"
Tail stock

Full C-Axis Live Tooling Capabilities
Machine Weight 33,510 Lbs.

Equipped With:
Thread Synchronized Cutting
Thread Cutting Retract
Variable Lead Threading
Quick Tool Pre Setter

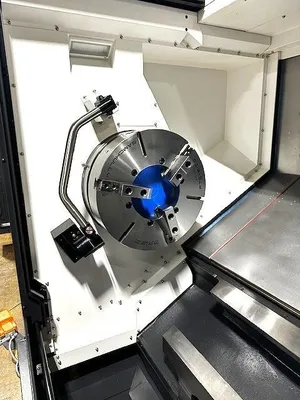

(2) 24" 3-jaw Manual Chuck, Front and Rear Spindle
(W/10.8 Bore Each)
(1) O.D. Rotary Head
(1) I.D. Rotary Head
Chip Conveyor
Fanuc 32iB Series Color LCS Control
200 Hours On time!

Machine is Heavy Duty Box Way Construction

Special Offered Price: $ Please Email Request on Interest.

I thank you on your review and look forward to any questions
and rare this opportunity 10.8" Big Bore Slant Bed Lathe with
Important added Live Tool Capabilities.
