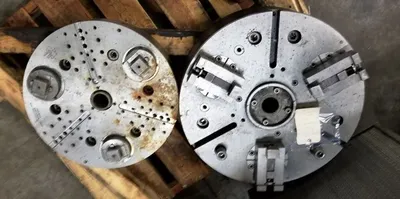

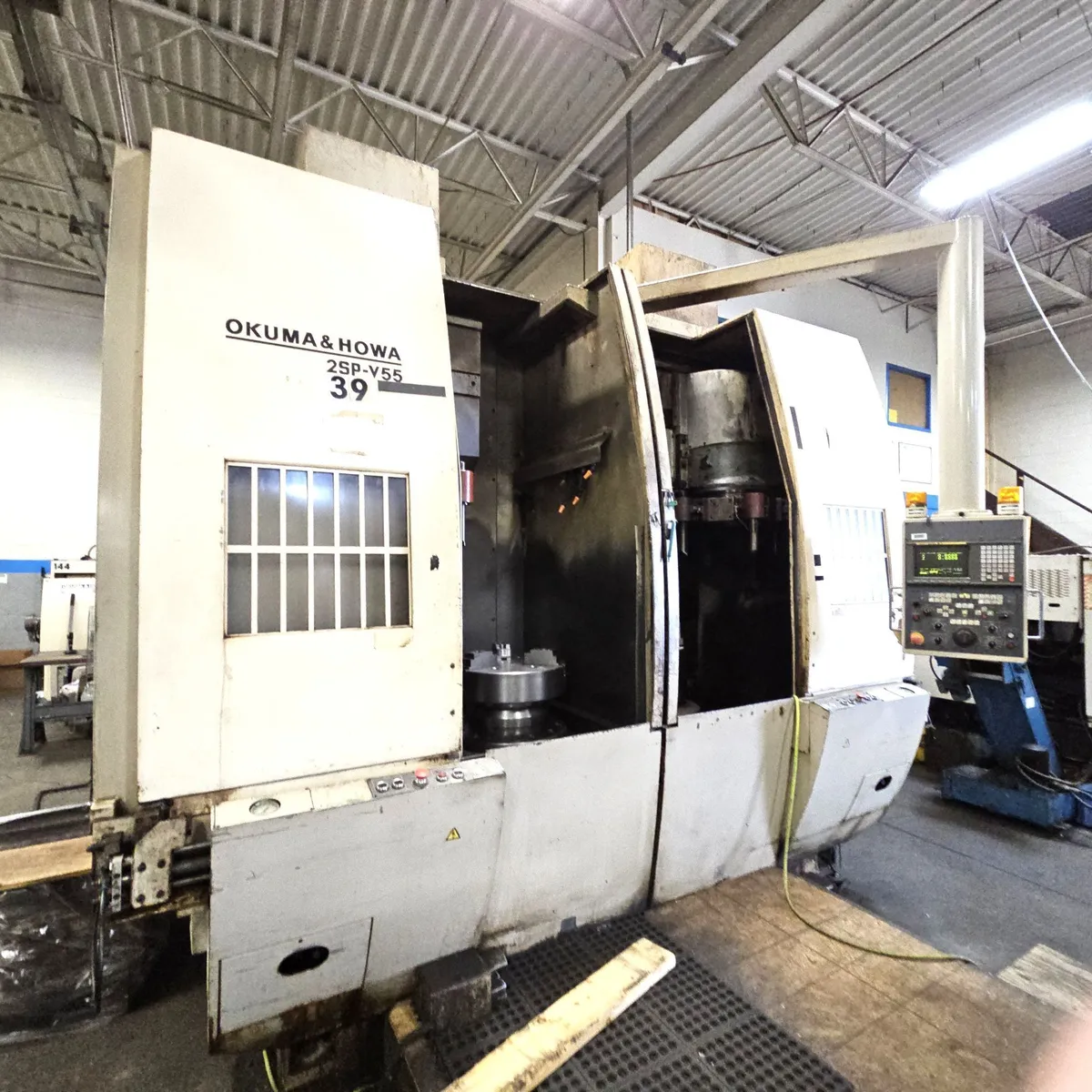

2000 Okuma & Howa 2SP-V55 Twin Spindle Vertical Turning Center in Very Good Condition, (1) Kitagawa 21" 3- Jaw Solid Chuck (1) Kitagawa 15" 3-Jaw Chuck Installed Machine

Murphy Machinery Sales, Inc. is pleased to provide information on (1) 2000 Okuma & Howa 2SP-V55 Twin Spindle Vertical Turning Center in Very Good Condition, (1) Kitagawa 21" 3- Jaw Solid Chuck (1) Kitagawa 15" 3-Jaw Chuck Installed Machine is Available Under Power Ready to Inspect & Secure & Schedule Shipment on Confirming Orders.!

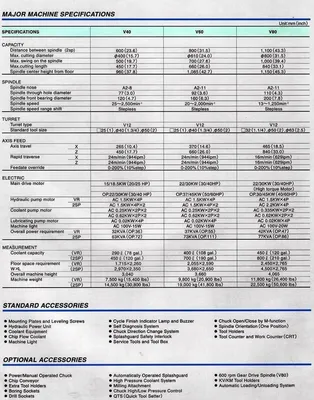

Okuma & Howa Factory Main Specifications:

Max. Cutting Diameter 24.0"
Special Note Max Turning Diameter 30.50"
Max. Swing Diameter 31.50"
Max. Cutting Length 24.01"
Spindle Center Height from Floor 42.7"

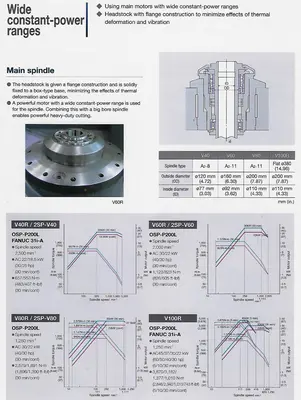

Spindle
Spindle Motor (FANUC aP60) (2) 40 HP Spindle High Torque Drive Motors
Spindle Speed Range 20 - 2000 RPM

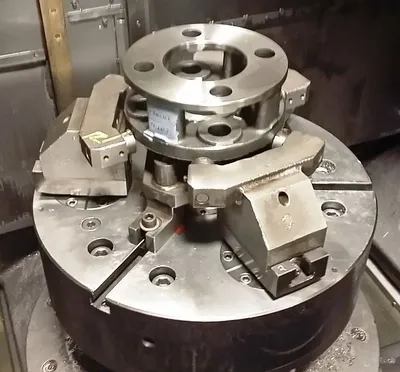

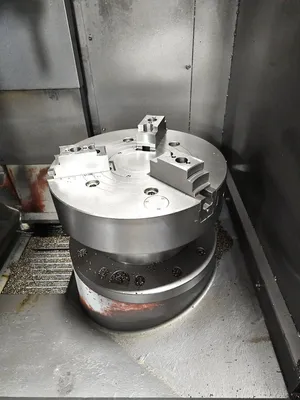

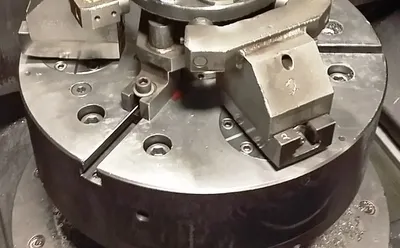

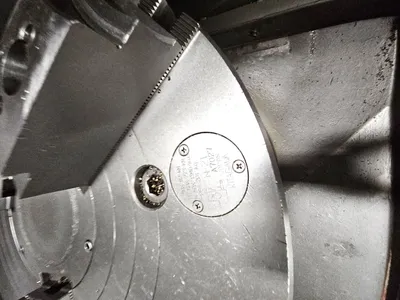

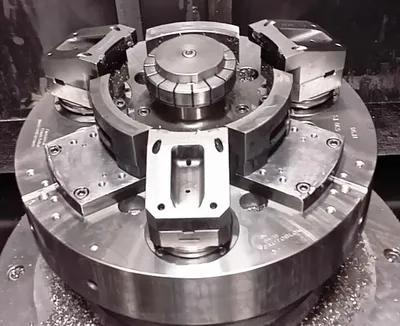

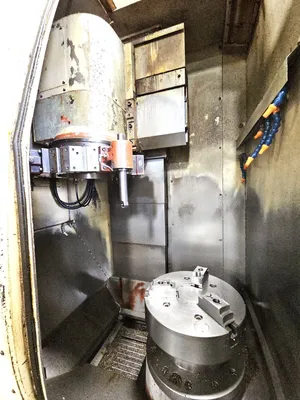

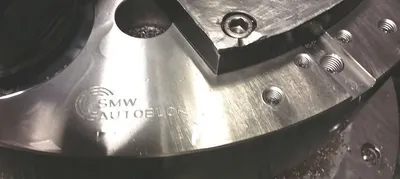

Max. Chuck Diameter (1) 21" 3-Jaw Installed Optional 24"-28" 3 Jaw Quotes on Request
Spindle Nose A2-11
Front Bearing Diameter 6.33
Spindle Bearings Double Row Cylindrical and Angular Contact
Spindle Speed Selection Direct RPM Programming 2-Speed High-Low Range
Spindle Speed Override 50% - 200%
Speed Range Shift Direct Programmable High-Low Range

Cooling System for Ball screws (to minimize expansion) Forced Oil

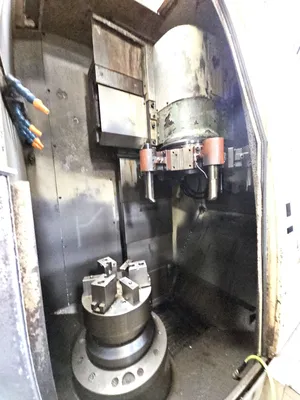

Turret
Turret Type V12 Station
Max. Number of Tools 12 Tools
Indexing Time (station to station) 0.7 sec
Standard Turning Tool Size 1.00" x 1.3/4"
Max. Boring Bar Size 2.0"

Machine Electric 45 KVA (200v) Transformer Installed.

Hydraulic Motor AC 1.5 Kw
Slide way Lubrication Pump Motor AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) AC 620w
Machine Light AC 100v-20w

Reservoirs:

Hydraulic Tank 10.6 gal
Slideway Lubrication Tank AC 0.02 KWx4P
Coolant Tank 108 Gallons

Machine:

Height 12.0' (144.0")
Floor Space Requirement
Weight 26,400 lbs.

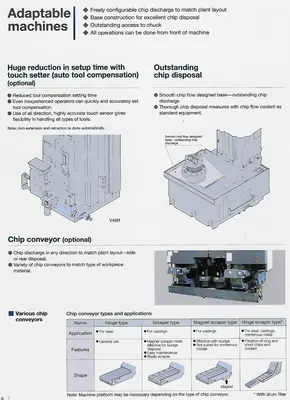

Automatic Open/Close Splash Guard Chip Conveyor (Rear Discharge)

Chuck Cylinders – Chuck Open/Close Direction

Change (key switch)
Chuck Open/Close Confirmation (Prox. Switches) Memory Protect Key Switch
One Color Signal Tower Chuck Open/Close (Push Button)
Cycle Completion Alarm & Light Door Interlock
High Pressure Coolant (57 psi) Mounting Plates and Leveling Screws
Multi-tap Transformer Tool/Work Counter on Screen
Spindle Orientation High Pressure Coolant 120 psi

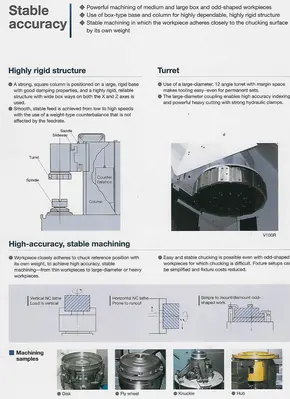

All Ways are induction hardened to Rockwell C55. All Ways are ‘Box’ for maximum rigidity and strength. Okuma machines use a design that allows the Z-Axis drive to be mounted to the bed of the machine. This design guarantees perfect alignment of turret to spindle and increases the rigidity of the Z-Axis itself.

Includes:

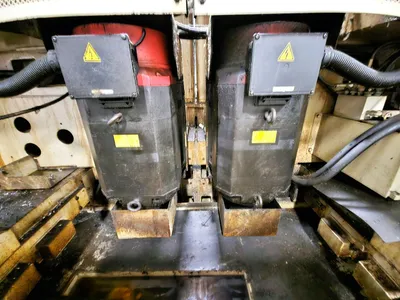

(2) 40 Hp. High Torque Faunc Spindle Drive Motor

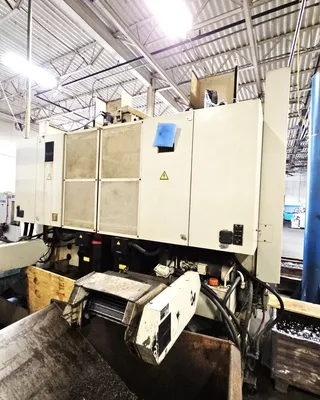

(2) Rear Discharge Lift-Up Chip Conveyors Chain Type
(2) Auto Doors Each Side of Machine
All Coolant Tanks and all Pumps
All Books & Manuals

Special Reduced Pricing...... $ Please Email Requests

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Machine can be Prep & Loading with Order on Request.
Delivery: Available Immediate, Subject to Prior Sale.

I thank you for your review and consideration and look forward to reviewing your questions and interest on the Okuma & Howa 2SP-V55 Twin Spindle Vertical Turning Center.
