ConditionUsed
1 available

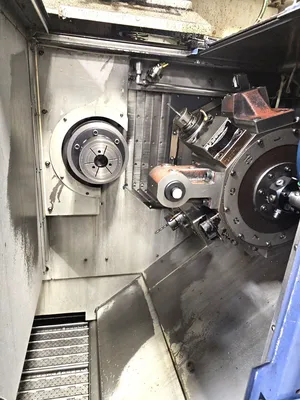

(1) 2013 Muratec MD-120G CNC Twin Spindle with Fanuc 31iTC
CNC Control Live Tooling Twin Turrets with Full C-Axis Milling & Drilling Capabilities Includes All Installed Live Tool Holders and Static Toolholders and Optional Accessories.

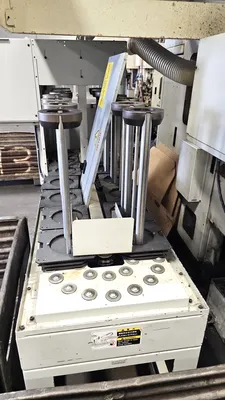

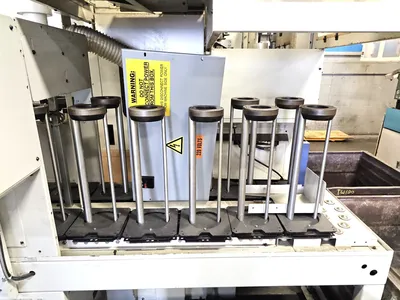

This is a Newer 2016 Muratec WF14L-160-II (14) Pallet Stocker Feeder Table in Top Condition Never Ran Parts Available with Machine and Currently Not Installed and Facing Wrong Direction
Sitting in Place with Included Parts Re-Chucking Station or can be
Set Up for Parts Orientation.
Machine is Equipped with 2-CNC Dead Length Collet Chucks Installed and Neg. with Machine on Interest on Applications.
Timing is Important on this Top Condition Under Power
Machine & Options for Inspection.
I thank you on your review and considerations look forward to your questions and interest. Under Power Videos and Very Low Cutting Hours Confirmations in Process!
Sincerely,
Mark Murphy
Murphy Machinery

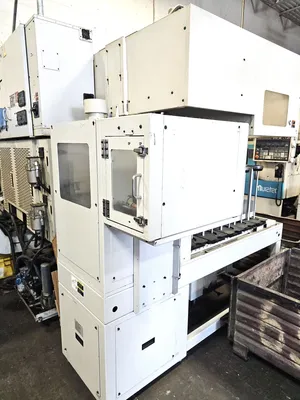

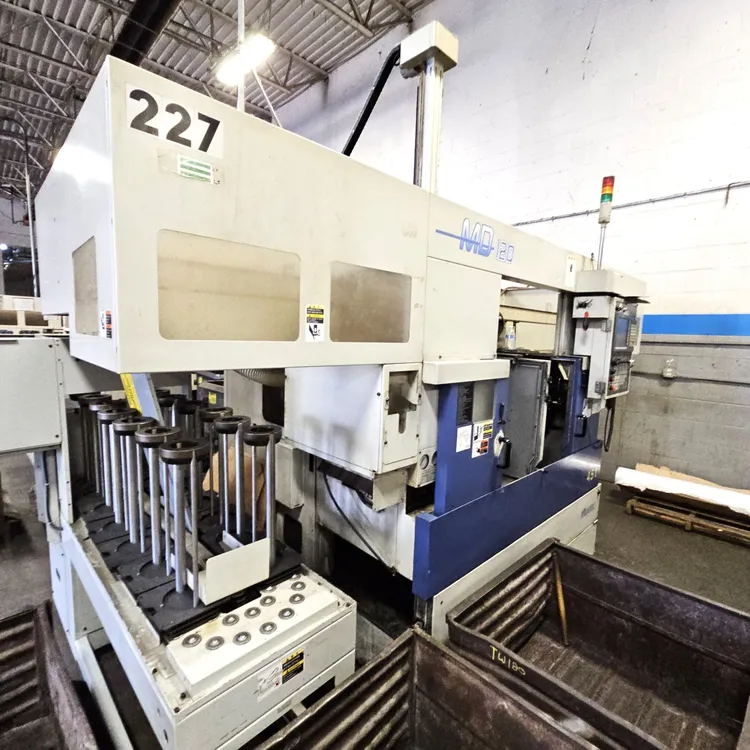

Murphy Machinery is pleased to offer a Special Opportunity on this 2013 Muratec MD-120 3-Axis Live Tool Twin Spindle Overhead Gantry Loader with Muratec W/S Turret Bar and Live & Static Tooling.

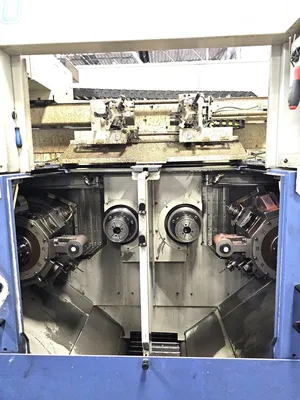

2013 Muratec MD-120G CNC Live Tool C-Axis Milling Twin Spindle with Fanuc 31iT CNC Control, Muratec WF-14L-160 14 Pallet Stocker Feeder Table (2) 6" 3-Jaw Chucks w/ Air Blast- Coolant w/Part Confirmation Re-Chucking Station with All Options Installed for Set up on Production Machining Operation.

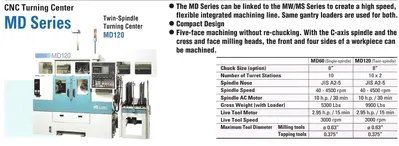

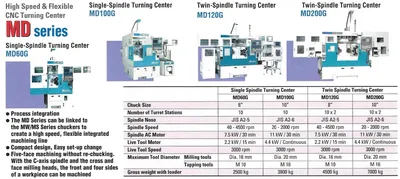

Main Specifications:
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate

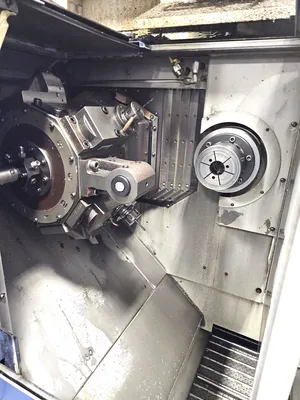

Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate C-Axis Milling & Drilling Feature
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"
Standard Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Work piece Weight: 8 lbs. x 2
Equipped with:

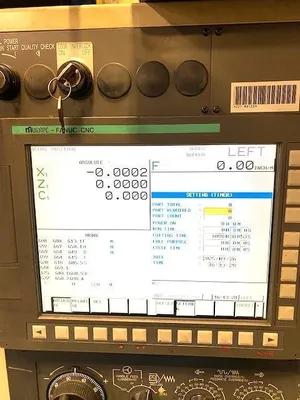

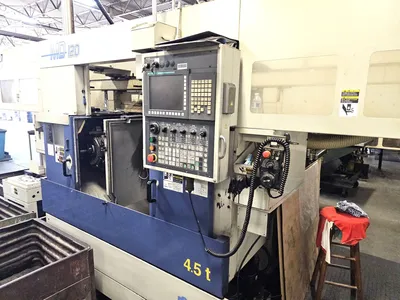

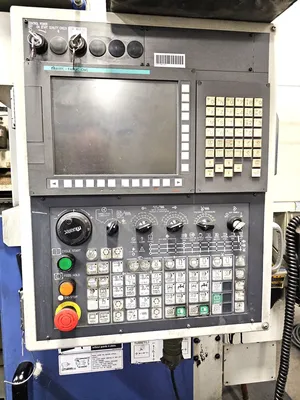

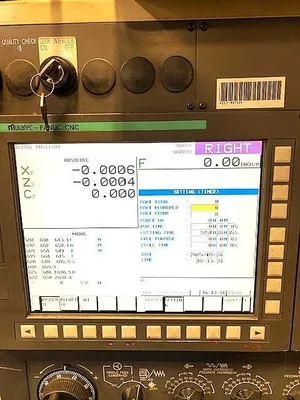

Fanuc 31iT CNC Control, (1) Overhead Gantry Loaders, Rear Chip Conveyor,
Coolant Tank and Pump, All Book & Manuals, A2-5 Spindle Nose M-Code Air Blast and Coolant Blast Through Chucking Center
Part Work Location Confirmation,

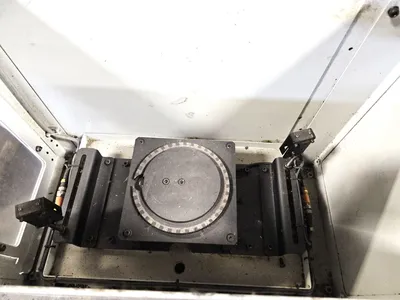

Input Part Re-Chucking Station

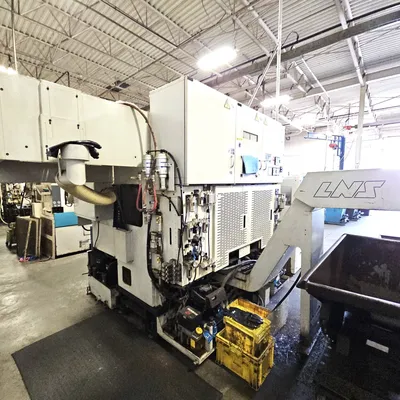

LNS - Turbo Rear Discharge Magnetic Chip Conveyor
(2) 6" 3-Jaw Chucks Top Tooling Part Specific Not Included
Muratec Tool Holders Live & Status Included
Special Reduced Price. Please Email Request Includes All Options in Photos!
Terms: Payment in Full Prior to Shipment
F.O.B: Machine Prep & Rigging Price on Request.
I look forward to reviewing more details and your project application needs for Twin-Spindle Gantry Loader applications and pleased offer this Rare CNC Twin-Spindle with Live Tooling Features and I look forward to your questions.
Sincerely,
Mark Murphy
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Email : markmurphy@murphymachinery.com
Web : www.murphymachinery.com
