Used 2015 AMERA SEIKI S-36XL | CNC Turning Centers

Description

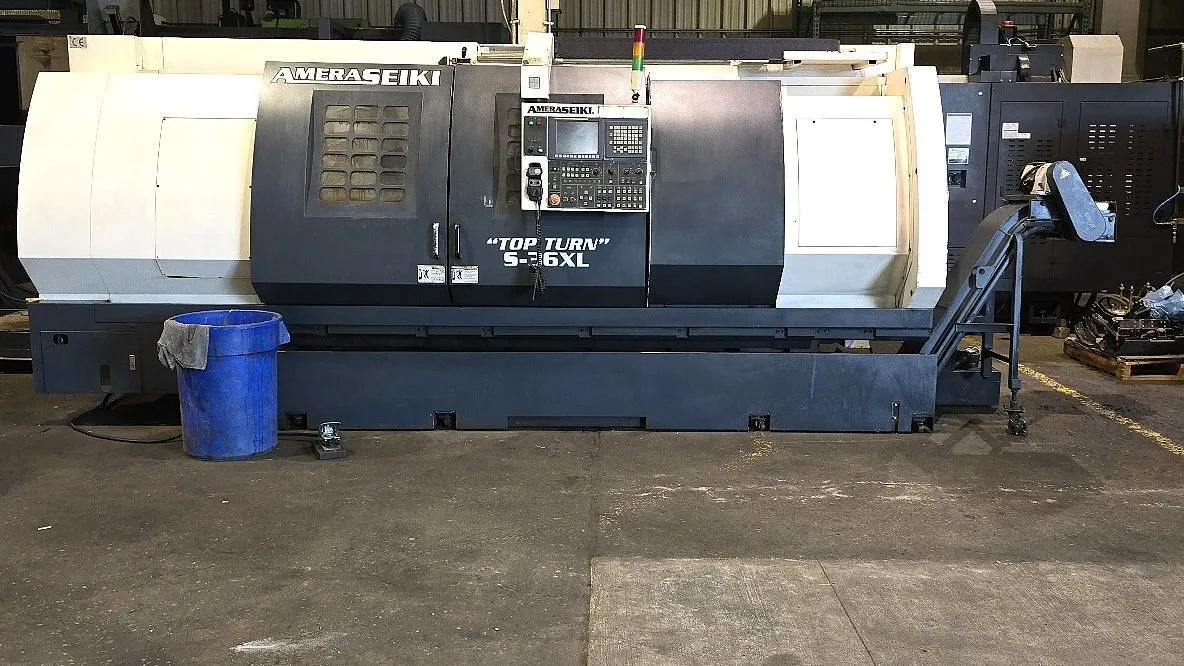

2015 AMERA SEIKI S-36XL "TOP TURN" CNC LATHE CNC LONG BED UNIVERSAL TURNING CENTER FANUC OiTD CNC CONTROL WITH ALL INSTALLED OPTIONS
* OPTIONAL 24" CHUCK CAPACITY

Main Specifications
Swing Over bed: 30.7"
Max Turning Dia: 19.6"
Max Turning Length: 86.6"
Distance Centers: 88.5"
Spindle Speed: 1200 RPM
Main Spindle Motor: 35HP 2-Speed Gear Hi-Low
Spindle Nose: A2-11
Spindle Bore: 6.5"
Bar capacity: 6.0:

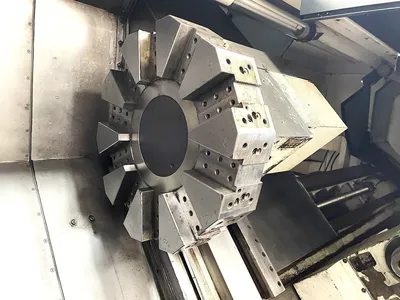

Turret: 12 positions

Travels:
X - Travel: 12"
X- Axis rapid traverse: 945 ipm
Z - Travel: 92.5"
Z-axis rapid traverse: 472.4 ipm
Hydraulic System: 15.9 gallons
Coolant system: 89.8 gallons
Coolant Pressure: 44

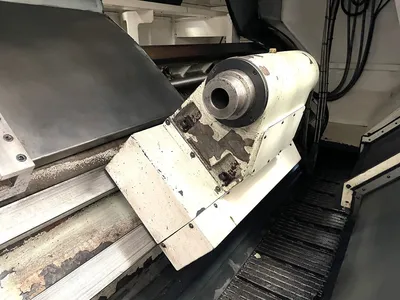

Tailstock:
Quill Diameter: 4.3"
Quill Travel: 3.9"
Quill Taper: MT#5

Equipped With:

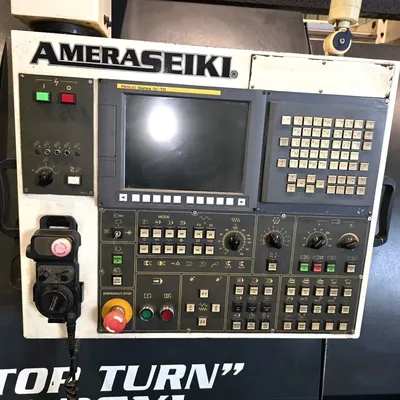

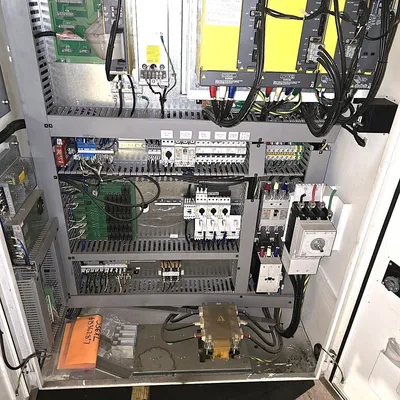

Fanuc Oi-TD Control

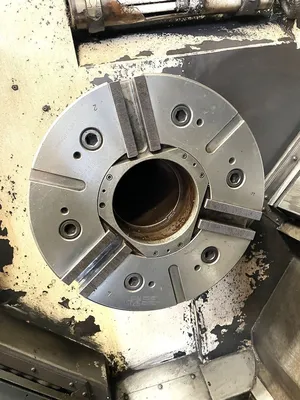

18" Auto Strong 3 Jaw chuck
Remote Hand wheel/Manual pulse generator
Special Reduced Pricing: Please Email Requests.
