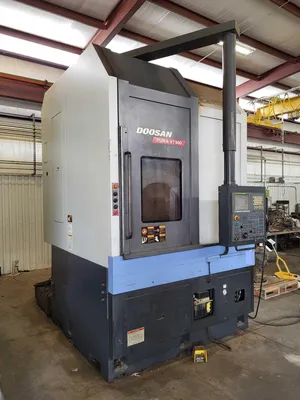

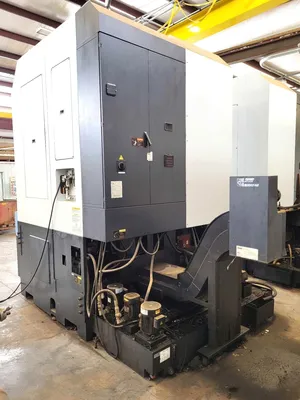

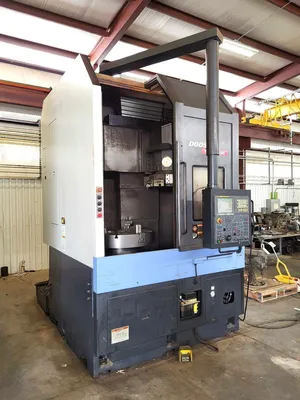

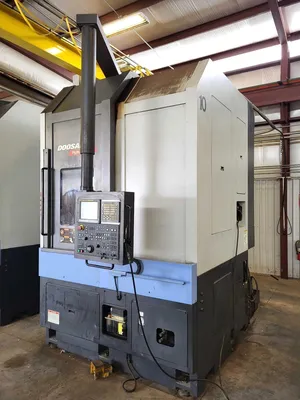

2012 DOOSAN PUMA VT-900 CNC VERTICAL TURNING & BORING CENTER
Have one to sell?
ConditionUsed
1 available

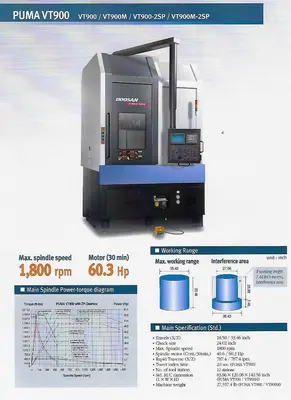

2012 DOOSAN PUMA VT-900 CNC VERTICAL TURNING & BORING CENTER WITH FANUC SERIES I CNC CONTROL

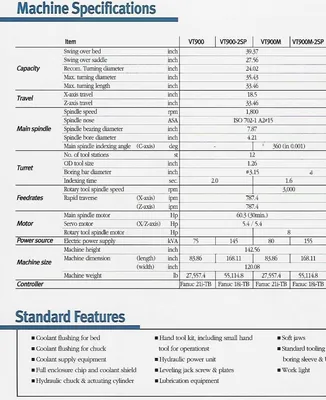

MAIN SPECIFICATIONS:
SAMCHULLY HC-32-SE 3-JAW SOLID VERTICAL CHUCK

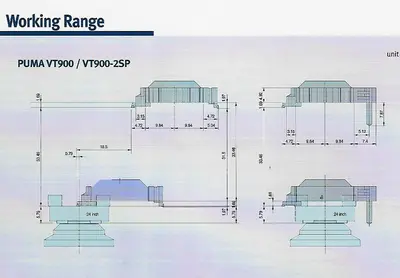

MAX SWING DIAMETER 39.4"
MAX. TURNING DIAMETER 35.4" STANDARD MAX CAPABLE 38"
MAX. TURNING LENGTH 33.4"
X AXIS RAPID TRAVERSE 787 IPM
Z AXIS RAPID TRAVERSE 787 IPM
MAX. SPINDLE SPEED 1800 RPMS
MAX. SPINDLE POWER 45 KW / 60 HP.
MAX. SPINDLE TORQUE 4443 N·M
NO. OF TOOL STATION 12
X AXIS TRAVEL DISTANCE 18.5"
Z AXIS TRAVEL DISTANCE 33.46"
APPROXIMATE WEIGHT: 27,500 LBS
EQUIPPED WITH:

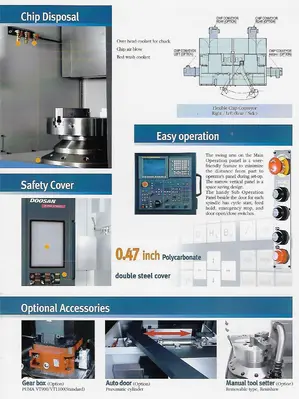

REAR DISCHARGE CHIP CONVEYOR
FANUC SERIES i CNC CONTROL

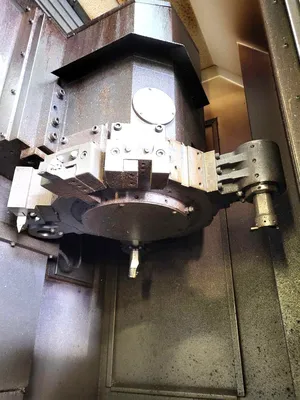

12 STATION TURRET WITH TOOL HOLDERS
SAMCHULLY HC-32" SE SOLID VERTICAL CHUCK
ALL AVAILABLE TOOL HOLDERS AND CHUCK JAWS
TOOL LOAD MONITORING
COOLJET INTERFACE FOR HIGH PRESSURE SYSTEMS
ETHERNET DOWNLOADING CAPABILITIES
512KB MEMORY
64 OFFSETS
SPECIAL OFFERED PRICE:.... CONFIRMING.
I THANK YOU ON YOUR REVIEW AND CONSIDERATION.
SINCERELY,
MARK MURPHY
MURPHY MACHINERY
MAIN SPECIFICATIONS:
SAMCHULLY HC-32-SE 3-JAW SOLID VERTICAL CHUCK
MAX. TURNING DIAMETER 35.4" STANDARD MAX CAPABLE 38"
MAX. TURNING LENGTH 33.4"
X AXIS RAPID TRAVERSE 20 M/MIN
Z AXIS RAPID TRAVERSE 20 M/MIN
MAX. SPINDLE SPEED 1800 R/MIN
MAX. SPINDLE POWER 45 KW / 60 HP.
MAX. SPINDLE TORQUE 4443 N·M
NO. OF TOOL STATION 12
X AXIS TRAVEL DISTANCE 18.5"
Z AXIS TRAVEL DISTANCE 33.46"
APPROXIMATE WEIGHT: 27,500 LBS
EQUIPPED WITH:
REAR DISCHARGE CHIP CONVEYOR
FANUC SERIES i CNC CONTROL
12 STATION TURRET WITH TOOL HOLDERS
SAMCHULLY HC-32" SE SOLID VERTICAL CHUCK
ALL AVAILABLE TOOL HOLDERS AND CHUCK JAWS
TOOL LOAD MONITORING
COOLJET INTERFACE FOR HIGH PRESSURE SYSTEMS
ETHERNET DOWNLOADING CAPABILITIES
512KB MEMORY
64 OFFSETS
SPECIAL OFFERED PRICE:.... CONFIRMING.
