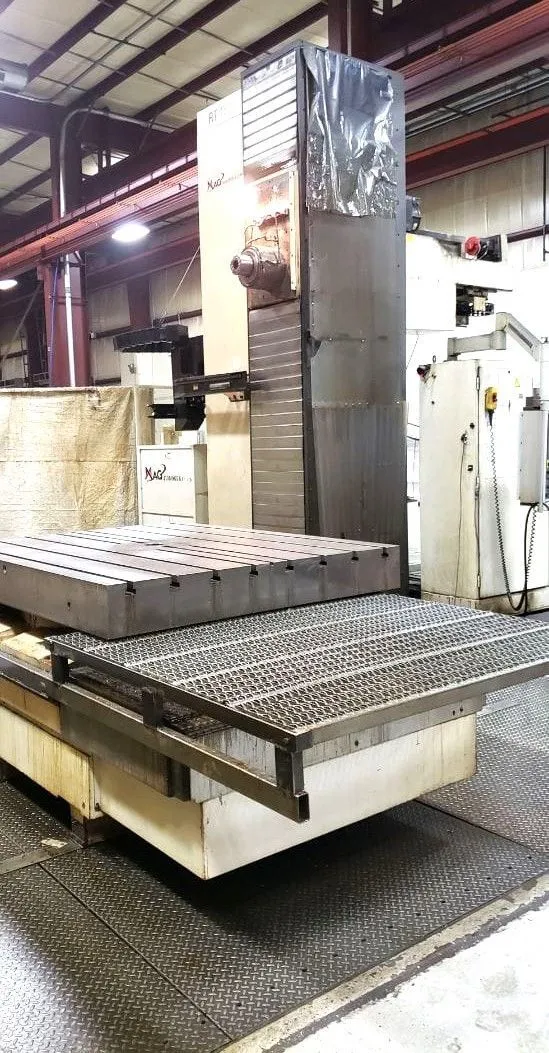

Used 2008 GIDDINGS & LEWIS RT-1600 | Horizontal Table Type Boring Mills

2008 GIDDINGS & LEWIS CNC BORING MILL 6.1" CNC
HORIZONTAL TABLE TYPE BORING BAR WITH FANUC
310i SERIES HIGH SPEED LOOK AHEAD OPTION CNC
CONTROL. 4-SPEED GEAR BOX WITH 3.500 SPINDLE RPM'S. 1000 PSI HIGH PRESSURE THRU SPINDLE COOLANT INSTALLED *MACHINE IS IN EXCELLENT CONDITION.

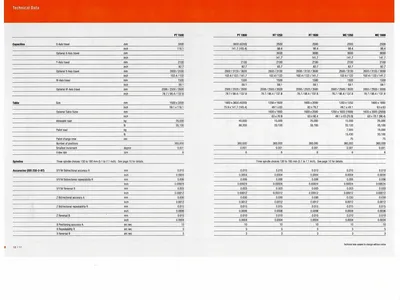

Main Specifications
Spindle Diameter 6.1"
Taper In Spindle ANSI B5.50 R.K
X-Axis Table Travel (141.7")
Y-Axis Vertical Head Travel (102.4")
Y-Axis Travel Above Table (100")
W-Axis Table Infeed Travel (59.43")
Z-Axis Spindle Travel (49.2")

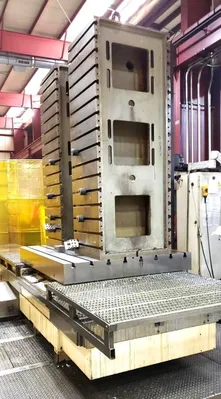

Table Size, Built-In Rotary (62.9" x 78.7")
Table Rotation, B-Axis .001 Degrees
Table Load Capacity 54,984 Lbs.
Spindle Speeds 1-3500 RPM High Speed
Spindle Speed Ranges 4
Spindle Motor 37 KW /55 KW / 60/75 HP.

Equipped With:

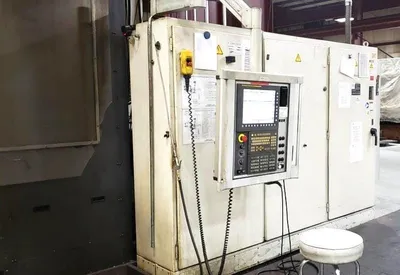

Fanuc 310i High Performance CNC Control
High Speed Look Ahead Processing Option

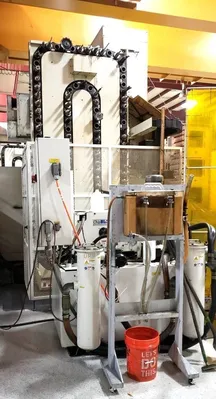

120 Position Tool Changer

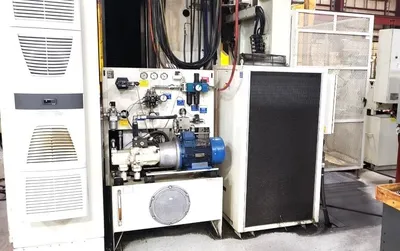

Thru-Spindle 1000 PSI High Pressure Coolant
Renishaw RMP60 Probe with Radio Transmission
4-Speed Headstock -Excellent Torque!
Rigid Tapping
Remote Manual Jog Pendant
Linear Scale Feedback, X, Y, & W Axes
Servo Motor Encoded, Z-Axis
Direct Feedback Encoder, B-Axis
