Used 2006 MAZAK QUICK TURN NEXUS 300 | CNC 3-Axis Turning Centers

Description

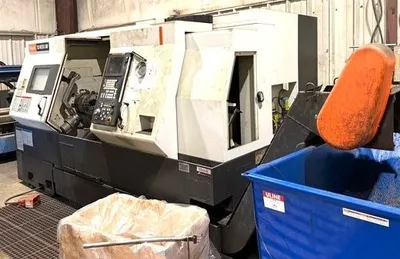

2006 Mazak QT Nexus 300 48” Center Distance CNC Universal Turning Center
MAXIMUM SWING:.................................... 26.77”
STANDARD MACHINING DIAMETER:...... 10.39”
MAXIMUM MACHINING DIAMETER:....... 16.53” (ADJACENT TOOLS EMPTY)
SPINDLE MOTOR:..................................... 35/30 (30 MIN/CONT.)
SPINDLE BORE:........................................ 3.46”
SPINDLE TORQUE:................................... 422 FT/LBS.
STD. BAR CAPACITY:.............................. 3.00”
SPINDLE SPEED:.................................... 4,000 RPM
SPINDLE NOSE:...................................... A2-8
TURRET TYPE:........................................ DRUM TURRET
NUMBER OF TOOLS:.............................. 12 STATION
TOOL SHANK HEIGHT:........................ 1.00”
BORING BAR SHANK DIAMETER:....... 1.5”
TURRET INDEX TIME:.......................... .2 SEC (ONE POSITION)
X-AXIS TRAVEL:................................... 8.85”
Z-AXIS TRAVEL (BED LENGTH: 48) :... 49”
RAPID TRAVERSE RATES X-AXIS:........... 1,181 IPM
RAPID TRAVERSE RATES Z-AXIS:.......... 984 IPM
TAILSTOCK CENTER:............................. MT NO. 5
MACHINE HEIGHT:................................ 78.73”

FLOOR SPACE REQUIREMENT:
48” BED 137.8” X 80”
WEIGHT (48” BED) 16,535 LBS.

Equipped With:
:
Mazatrol Fusion 640T Control
Quick Tool Setter Auto Tool Eye
Programable Tailstock & Quill
Side Discharge Chip Conveyor
