Used 2009 MITSUBISHI M-HT 13/1618 | Horizontal Table Type Boring Mills

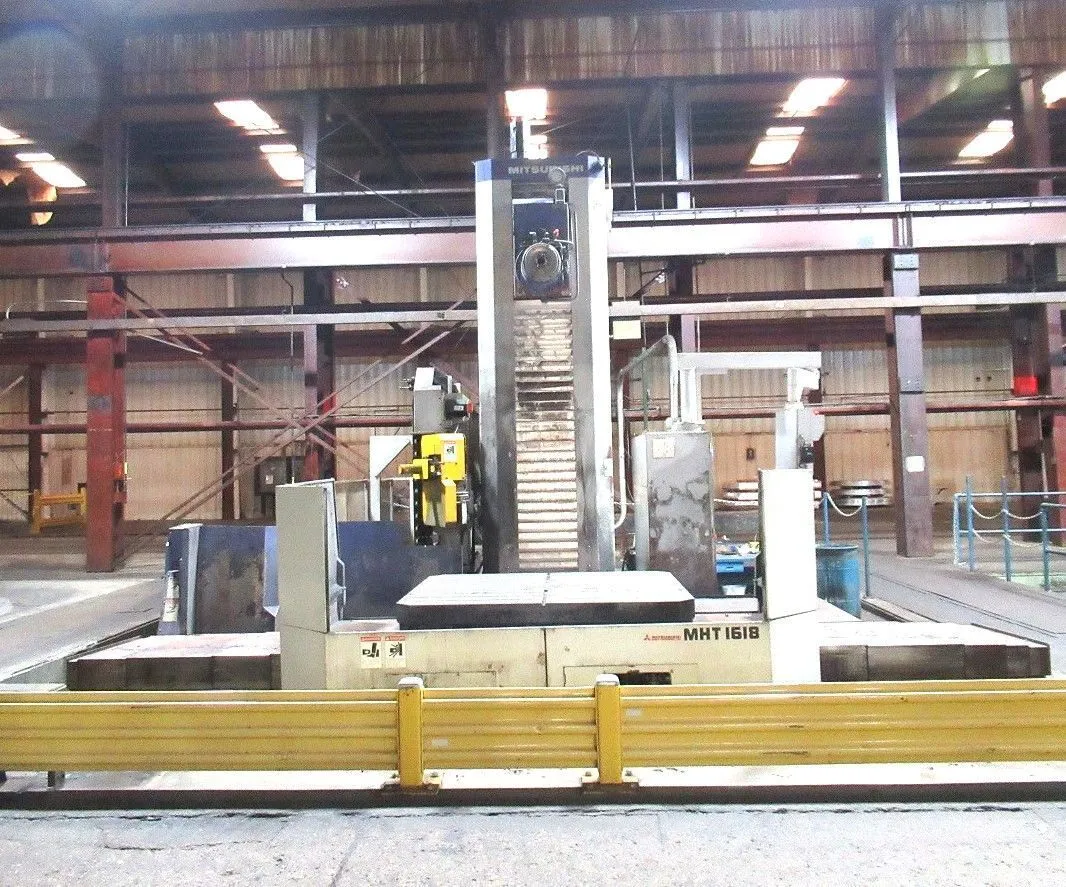

(1) 2008 MITSUBISHI M-HT 13/1618 CNC 5.1" SPINDLE TABLE TYPE HORIZONTAL BORING MILL

I am pleased to offer this Japan Quality Mitsubishi Heavy Industries Manufactured CNC Boring Bar
with Many National Dealer & Service Support Companies.!

This Machine is in Very Good Fully Installed Condition! The Fanuc 18iMB Control Hour Meter Timer
Option was not Activated but Machine has Low Hours and Possibly in Spindle Hours in Parameters Settings.

This Larger Shop and Runs Primarily Larger CNC Bridge Mills Tight Tolerance Applications on
Defense Vehicle Larger Body Type Components & Frames.

2008 Mitsubishi M-HT 13/1618 5" Inch CNC Boring Bars Also Runs Multiple Identical
Mitsubishi MVR-40 & Larger Mitsubishi Bridge Mill Machines. Japan Quality Machine & Support.

Main Specification

Table Size 63.1" X 71"
Table Load Capacity 17,600 LBS.

Main Specifications

Spindle Diameter 5.1"
X - Axis Travel 118"
Y - Axis Travel 98.4"
Z - Axis Travel 51"
W - Axis Travel 19"
B - Axis Indexing .001 DEGREE
Rapid Traverse X, Y, Z, W 472,472,472, 236 IPM0
Spindle Speed 4000 RPM
Spindle Taper 50
Main Motor 50 HP
Automatic Tool Changer 80 ATC
Tool Diameter 6", 9.4"
Tool Length 19.7"
Tool Weight 66 LBS
Machine Weight 72,000 LBS

Equipped with

200 TOTAL PAIRS OF TOOL OFFSETS 48 PAIRS OF ADDITIONAL WORKPIECE CO-ORDINATE SYSTEM
CHIP CONVEYOR COOLANT THRU THE SPINDLE
EASY CENTERING FUNCTION FANUC 18IM CNC CONTROL
FULL WAY COVERS G-COMMAND MIRROR IMAGE: G50.1, G51.1
MP SCALES FOR X, Y, Z AND B AXES PARAMETER CO-ORDINATE SYSTEM ROTATION: G68,G69
PROGRAMMABLE PARAMTER INPUT RENISHAW PROBE
SKIP FUNCTION G31 SPINDLE HEAD COOLING UNIT
SYNCHRONOUS TAPPING

* Confirming Possible Tooling Neg. with Machine.

Special Offered Reduced Price: .................................................... $ 249,000.

* Note Machine can Install on Floor or Pit "As In" Photos!

F.O.B: Excellent Local Riggers Pricing on Request.
Terms: Payment in Full Prior to Shipment.
