Used 2014 HASS VF-4 | CNC Vertical Machining Centers

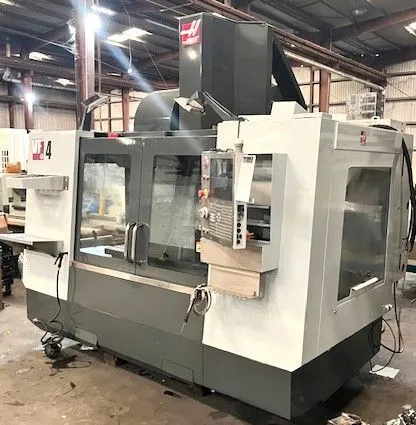

2014 HAAS VF-4 CNC Vertical Machining Center with Haas HRT-210 CNC Rotary Table
Installed with Chuck, 4 High Speed Arm Type 30+1 ATC More Expensive CNC VMC Model.
Arm Type Offers Better Clearance with Rotary Table.

Main Specifications:

TRAVELS
X Axis 50.0 in Y Axis 20.0 in
Z Axis 25.0 in

Spindle Nose to Table (~ max) 29.2 in
Spindle Nose to Table (~ min) 4.2 in

SPINDLE
Max Rating 30.0 hp
Max Speed 6000 rpm Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper CAT 40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled

TABLE
Length 52.0 in
Width 19.5 in T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 3.15 in
Number of Std T-Slots 5
Max Weight on Table (evenly distributed) 1750 lb

FEEDRATES
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm

AXIS MOTORS
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3925 lbf

TOOL CHANGER
Type SMTC ARM Type
Capacity 30+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 13 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 1.80 s
Chip-to-Chip (avg) 2.40 s

GENERAL
Coolant Capacity 55 gal

AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi

DIMENSIONS - SHIPPING Main Dimension Shipping 152.0 in x 99.0 in x 106.0 in
Weight 11,720 Lbs.

ELECTRICAL SPECIFICATION
Spindle Speed 7,000 rpm Drive System Inline Direct-Drive
Spindle Power 30.0 hp
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A

Equipped With:
HASS CNC CONTROL HAAS HRT-210 FULL FORTH AXIS ROTARY TABLE
30 POSITION TOOL CHANGER
7.000 RPM SPINDLE CAT 40 TAPER
CHIP AUGER
ETHERNET INTERFACE PROGRAMMABLE COOLANT NOZZLE
RIGID TAPPING
HASS FACTORY PREP FOR COOLANT THRU SPINDLE

Special Price: ................... $ Please Email Requests for Quotations.

Machine is Available Under Power and Video links on Request.
