Used DOOSAN HP 5100 | Horizontal Machining Centers

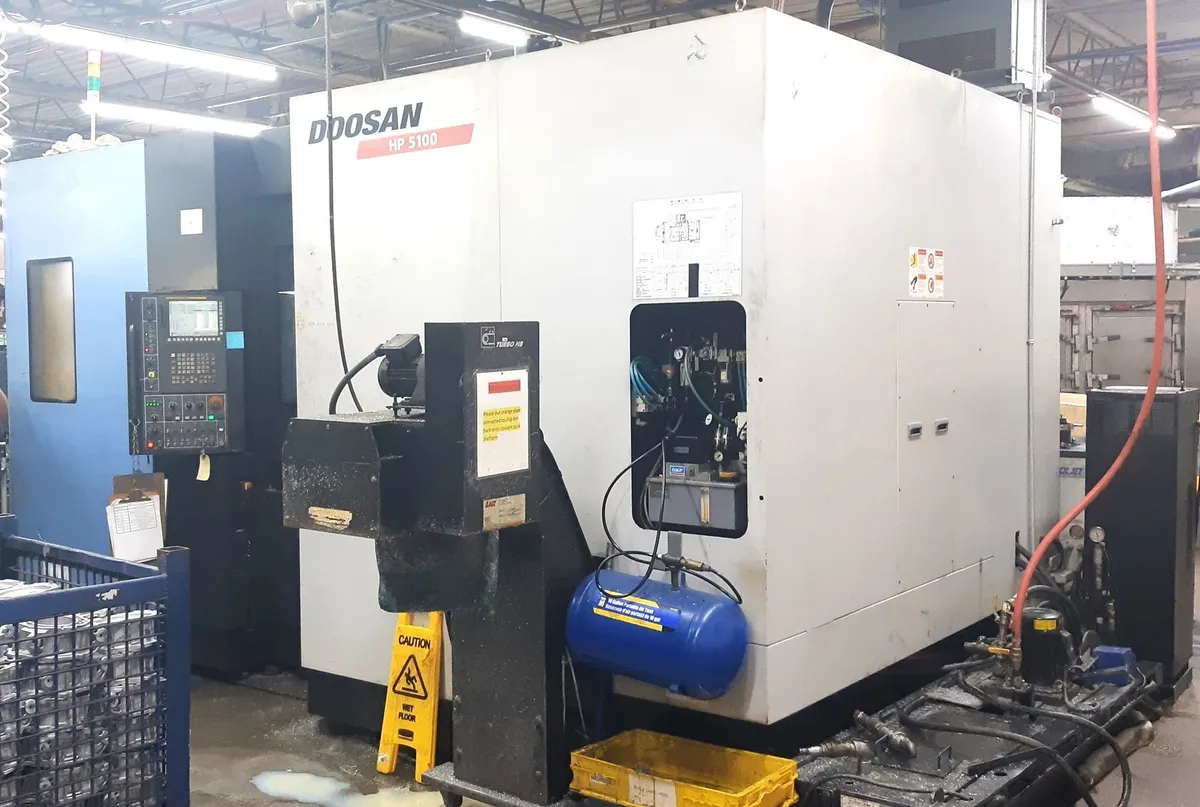

DOOSAN CNC HP-5100 2 Pallet Horizontal Machining Center

Main Specification:
Fanuc 31i-A, Display Unit size is 10.4” Color.
Pallet Size 19.7" x (2)
Travels:
X-Axis 33.5" (850 mm)
Y-Axis 27.6" (700 mm)
Z-Axis 29.5" (750 mm)
Pallet Index 1 Degree
Spindle Speed 14,000 R/Min
Spindle Taper Big Plus, CAT-40 DIN 15
Spindle Motor 22/18.5 KW
Spindle Torque 68.7 ft. lbs.
Spindle Center to Tabletop 2" - 29.5"
Spindle Nose to Table Center 5.9" - 35.4"
Tool Storage Capacity 170
Pallet Change Time 7.5 Seconds
Pallet Load Capacity 1102 lbs.
Max Workpiece Size (Dia / Height) 31.5" / 36.6"
Max Tool Diameter 3" / 5.5"
Max Tool Length 15.7"
Max Tool Weight 22 lbs.
Power Source 3 Ph, AC 220V, 60 Hz
Machine Dimensions (L x W x H) 194" x 108" x 119"
Machine Weight 33,069 lbs.

FEATURES:
• FANUC 31iA CNC CONTROL, 10.4" Color LCD
• PC/MCIA Interface
• Number of Tool Offsets 200 Pairs
• Helical Interpolation
• Rigid Tapping
• Coolant Thru Spindle 2.0 MPA
• Tool Life Management
• Spindle Chiller Unit
