Used 2018 MURATEC MW120G | CNC Lathes
Have one to sell?
ConditionUsed
1 available
Murphy Machinery is Pleased to offer the following 2018 Muratec MW-120G fully Installed CNC Twin-Spindle Gantry Loader Turning Center in 10-10 Condition for your review and consideration.

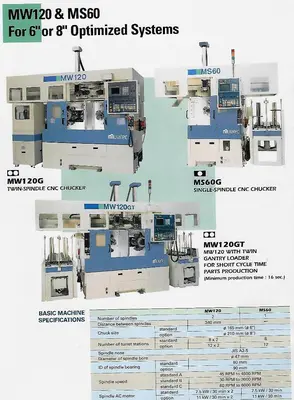

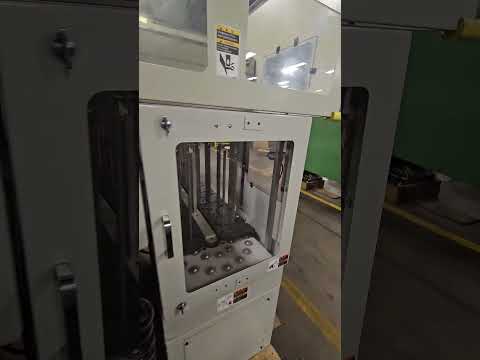

2018 Muratec "Murata" MW120G CNC Twin Spindle Turning Center w/Overhead Gantry Loader with Fanuc 31iTB CNC Control and All Options with Rare Muratec MW-200G Diameter (14) Pallet Stocker Feeder Table Left Side of Machine and MW-120G Standard Diameter (14) Pallet Stocker Feeder Table
Right Side on Machine Cell with All Installed Chucks & Tool Holders & Options Included.
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 6/8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"
Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Workpiece Weight: 8 lb x 2
Equipped with:
Fanuc 31iTB CNC Control, Overhead Gantry Loader, Rear Chip Conveyor, (14) Pallet Stocker Feeder Table, Coolant Tank and Pumps All Books & Manuals
Special Reduced Price:..................$
F.O.B: Machine Prep & Rigging Quote on Request.
Terms: Payment in Full Prior to Shipment.
Sincerely,
Mark Murphy
Murphy Machinery
Office: 262-534-4124
Mobile: 414-520-0843
Email : markmurphy@murphymachinery.com
Web : www.murphymachinery.com
2018 Muratec "Murata" MW120G CNC Twin Spindle Turning Center w/Overhead Gantry Loader with Fanuc 31iTB CNC Control and All Options and (2) 14 Pallet Stocker Feeder Tables Installed.
Main Specifications
Distance Between Spindles: 13.39"
Max. Swing: 11.61"
Standard Chuck Size: 6/8"
Turning Diameters: 4.72" Nominal, 9.440" Max.
Turning Lengths: 3.150" Nominal, 3.94" Max.
Number of Turret Stations: 8
X-Axis: 5.12" Stroke, 945 IPM Traverse Rate
Z-Axis: 5.71" Stroke, 945 IPM Traverse Rate
Rapid Traverse Rate (X & Z Axis): 78.78 FPM
Spindle Speeds: 45 - 4500 RPM
Spindle Noses: A2-5, Bore 1.850"
Spindle Drive Motors: 15 HP
Tool Shank Size: 0.75" Square, 1.570" Round
Approx. Weight w/Loader: 11,800 lbs.
Floor Space: L 139.37" x w 136.22"
Loader Specifications:
X-Axis Stroke: L7.87"/R63", Max. Speed: 492 FPM
Y-Axis Stroke: 19.09", Max. Speed: 361 FPM
Z-Axis Stroke: 6.1", Max. Speed: 115 FPM
a-Axis: 180 Deg., Max. Speed: 0.6 sec./180 Deg.
Load/Unload Grippers: Outer Diameter: 3.54", Jaw Stroke: 1.18"
Max. Workpiece Weight: 8 lb x 2
Equipped with:
Fanuc 31iTB CNC Control, Overhead Gantry Loader, Rear Chip Conveyor, (2) Muratec (14) Pallet Stocker Feeder Tables, (1) Larger MW-200G Capacity
and (1) Standard MW-120G Stocker Feeder Table, Coolant Tank and Pumps All Books & Manuals
Special Reduced Price Please Email Requests for Quotations.
F.O.B: Machine Prep & Rigging is Required
Terms: Payment in Full Prior to Shipment.
