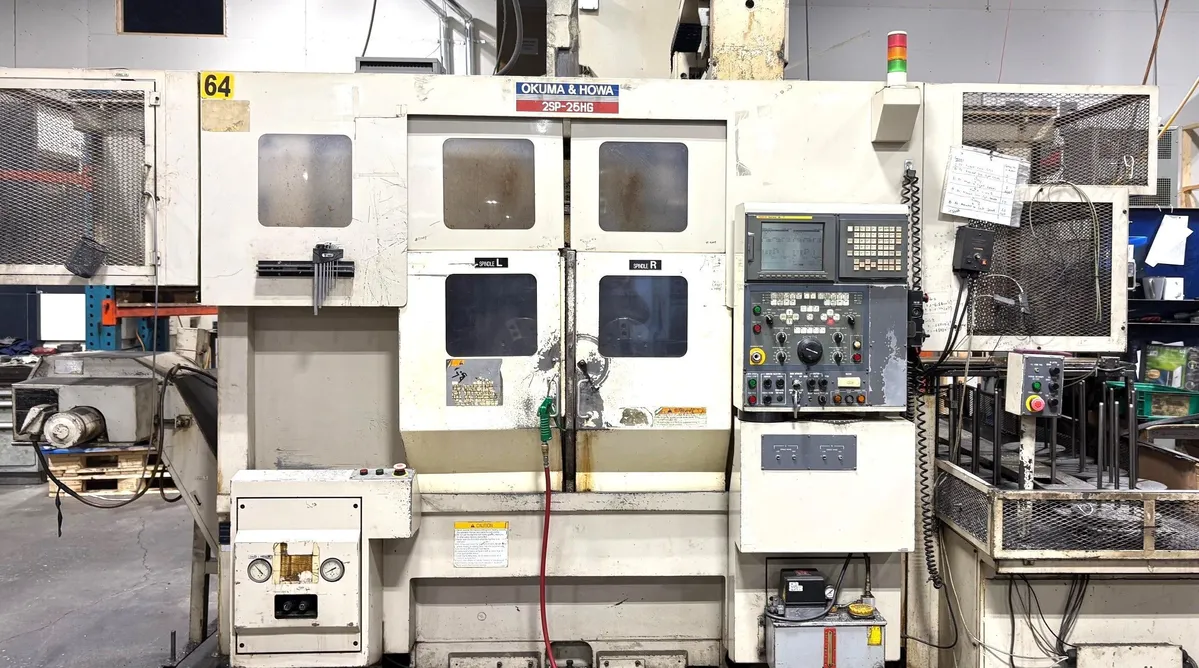

Used 2002 OKUMA & HOWA 2SP-25HG | CNC 4-Axis Turning Center
Have one to sell?
ConditionUsed
1 available

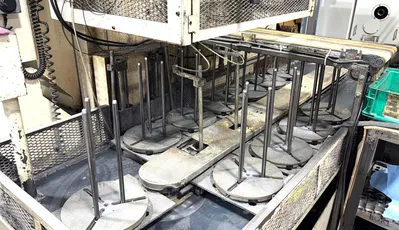

2002 OKUMA & HOWA 2SP-25HG TWIN SPINDLE GANTRY LOADER TURNING CENTER 2- 20 HP SPINDLE MOTORS 10' 3-JAW CHUCKS, PALLET STOCKER FEEDER TABLE OUTPUT CONVEYORS, INCLUDES ALL INSTALLED OPTIONS. GANTRY LOADER 2-HANDED ARM, 7.9" X 4.8" 8 SEC. LOAD 35 SEC. CYCLE PER PART
2002 OKUMA & HOWA 2SP-25HG TWIN SPINDLE GANTRY LOADER TURNING CENTER
MAX CUTTING DIAMETER 13.78"
MACHINING LENGHT 7.87"
DISTANCE BETWEEM SPINDLES 15.75"
CHUCK SIZE 8" STANDAED OP. 10"
2 - V10 + V10 STATION DRUM TYPE TUURETS
INDEX TIME 0.2 SECONDS
2 - 20 HP SPINDLE MOTORS
SPINDLE SPEED 45-4,500 RPMS
A2-6 SPINDLE NOSE
X- AXIS RAPID TRAVERSE RATE 944 IPM
Z-AXIS RAPID TRAVERSE RATE 994 IPM
45 KVA TRANSFORMER
MACHINE DIMENSIONS 7.4 FT. X 7.8 FT. X 7.2 FT.
MACHINE WEIGHT 11,000 LBS.

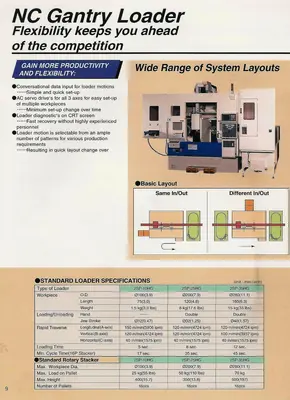

GANTRY LOADER SPECIFICATIONS FACTORY SPECIFICATION
