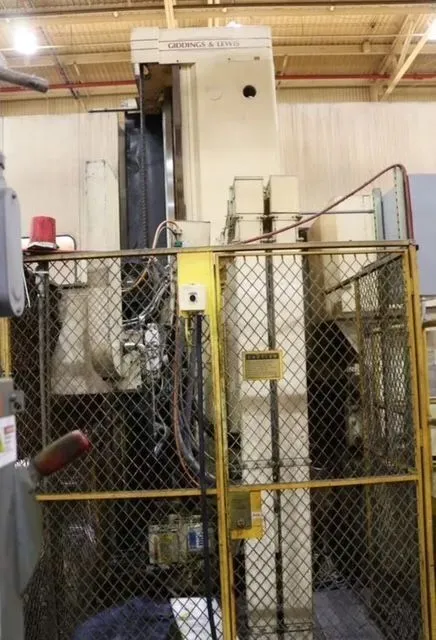

Giddings & Lewis G60-TX 6" Diameter Table Tpe Boring Bar 2006 Siemens 840D Retrofit CNC Control

Giddings & Lewis G60-TX 6" Diameter 120" Y-Axis High Column Model
2006 Siemens 840D Retrofit CNC Control Model: G60-TX

Approx. Shipping Weight: 70,000 LBS
Loading Fee: Rigging Required

Specifications

Spindle Diameter: 6 Inches
Spindle Taper: #50 ISO
Spindle Speed Range: 5 – 1120 RPM
Spindle Motor Power: 47.5 Horsepower
Table Size: 120 Inches X 72 Inches
Table Type: Airlift Table
Longitudinal Travel (X-Axis): 120 Inches
Vertical Travel (Y-Axis): 120 Inches
Cross Travel (Z-Axis): 120 Inches
Spindle Travel (W-Axis): 36 Inches
Rapid Traverse Rate: 120 Inches Per Minute
Feed Rate Range: 0.5 – 25 Inches Per Minute
Table Load Capacity: 50,000 Pounds
Control System: 2016 Siemens 840D
Tool Changer: Automatic Tool Changer
Coolant System: Programmable Coolant
Additional Features: Double Swivel Vertical Head
Electrical Requirements: 220/440 Volts, 3-Phase

Equipped With

Siemens 840D Updated In 2016
