Used 2005 JOHNFORD ST-80 | CNC Lathes

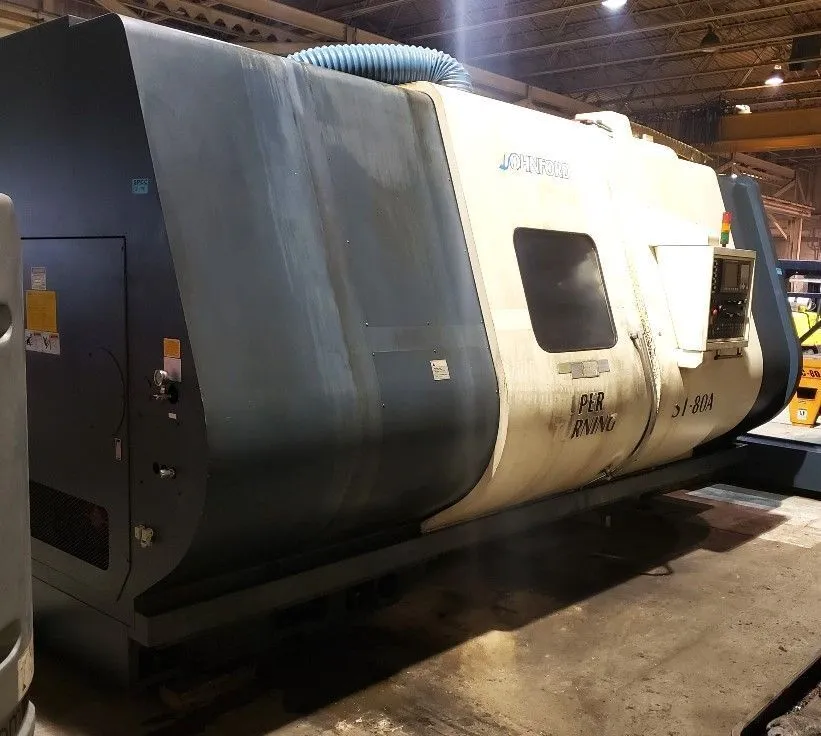

2005 JOHNFORD ST-80-88 CNC HEAVY DUTY LARGE CAPACITY CNC UNIVERSAL TURNING CENTER.
EQUIPPED WITH (2) INSTALLED PROGRAMMABLE CNC STEADY RESTS 60K NEW COSTS ADDED VALUE>. * (1) Machine Available. Optional Chucks 24" - 32" 3-Jaw Capable.

* This Machine can Really be Cleaned in Work area is Original Operation Ran Stainless Shaft Only from Shop Condition.

Swing over bed/Front cover 36.2"
Standard turning diameter 27.5"
Swing over carriage 27.5"
Maximum cross travel (X axis) 15.7"
Maximum longitudinal travel (Z axis) 88"
Distance between centers 88”

Spindle:
Spindle Motor 50 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck) Opt. 24"-36" Cap.
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Turret tool positions 12

Tailstock:
Quill diameter of tailstock 7.87
Quill stroke of tailstock 5.9
Quill taper of tailstock M.T. 7
Tailstock body travel 88”
Hydraulic, programmable tailstock body and quill
Fanuc 18iT control

Special Price: $ Please Email Request for Quotations.

FOB: Michigan USA Shop

TERMS: Payment in Full Prior to Shipment
