Used 2020 DOOSAN NHP-5000 5-APC | Horizontal Machining Centers
Have one to sell?
ConditionUsed
1 available

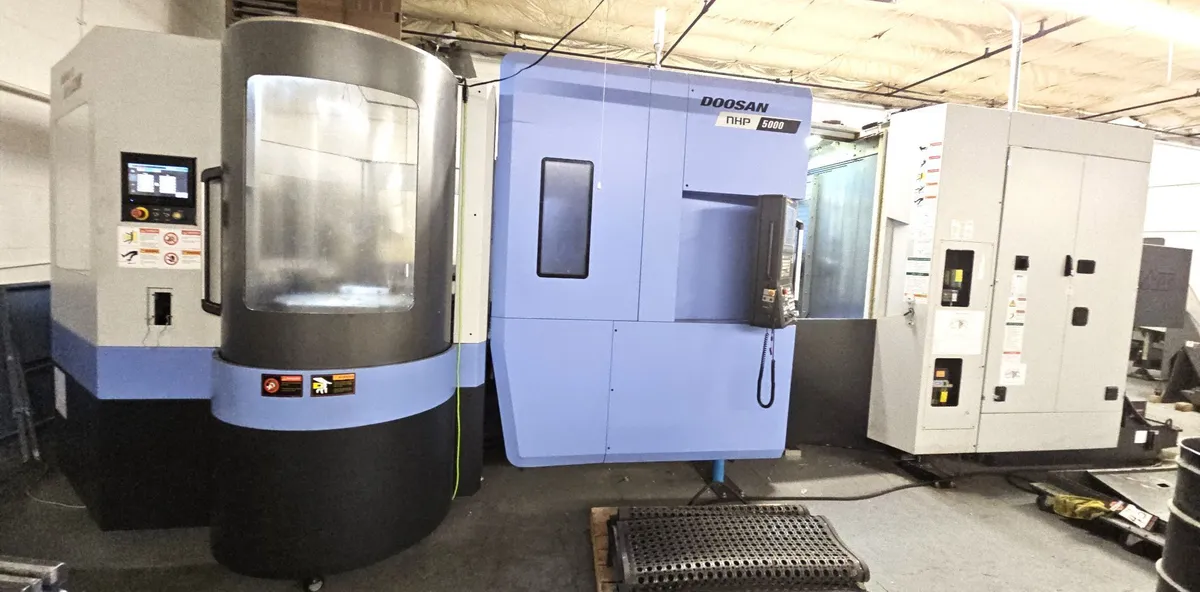

2020 DOOSAN Model NHP-5000 FMS CNC Horizontal Machining Center with 5- Pallet Changer
in Top Condition Ordered for Project that was Cancelled.
Main Specifications
28.7" X/Y-axis, 34.6" Z-axis, 15,000 RPM spindle, and 80-tool ATC.
Renishaw probe, and Fanuc 31iMB control. Machine is in Top
Condition Fully Installed Under Power for Inspection.
2020 DOOSAN Model NHP-5000 FMS CNC Horizontal Machining Center with 5- Pallet Changer
in Top Condition Ordered for Project that was Cancelled.
Main Specifications
28.7" X/Y-axis, 34.6" Z-axis, 15,000 RPM spindle, and 80-tool ATC.
Renishaw probe, and Fanuc 31iMB control.
TRAVELS
X-AXIS: 28.7"
Y-AXIS: 28.7"
Z-AXIS: 34.6"
SPINDLE SPEED: 15,000 RPM
SPINDLE TAPER: 40 CT BIG PLUS
SPINDLE MOTOR: 49.6 HP
SPINDLE TORQUE (223.6 FT-LBS)
RAPID RATE Y AXIS: 2,362 IPM
RAPID RATE X AXIS: 2,362 IPM
RAPID RATE Z AXIS: 2,362 IPM
TOOL CHANGER: 80 ATC
PALLET SIZE: 19.9" X 19.7"
Equipped With
5-PALLET FLECXIBLE MANUFACTURING CELL
LNS TURBO MH-250 CHIP CONVEYOR
BK MIKRO BROKEN TOOL DETECCTION SYSTEM
RENISHAW CAT 40 TOOL SETTER CALIBRATION MASTER
RENISHAW RMP 60 PROBE
100MM PROBE STYLUS AND HARDWARE
360,000 FULL 4TH
FANUC 31IMB CONTROL
80 TOOL ATC
15,000 RPM SPINDLE
1000 PSI THROUGH SPINDLE COOLANT
WEIGHT MACHINE 38,580 + 5- PALLET FMS
