Used 2022 HAAS VF4-SS | Vertical Machining Centers

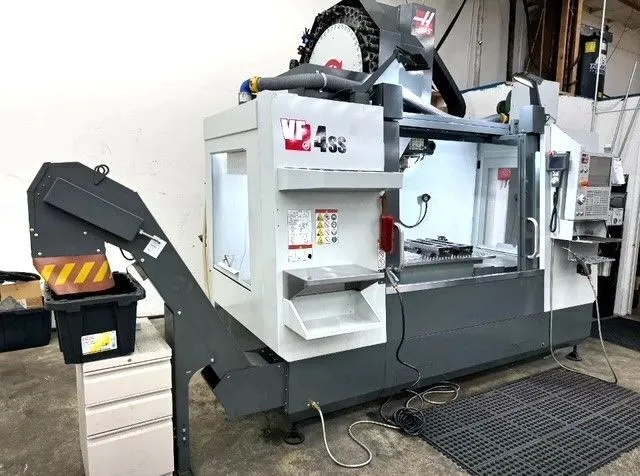

HAAS VF-4SS HIGH SPEED CNC VERTICAL MACHINING CENTER
ARM TYPE 50 STATION AUTOMATIC TOOLCHANGER RENISHAW
WIRELESS INTUITIVE TOOL SETTER AND PROBE ALL OPTIONS

* LESS THAN 600 Cutting Hours

- Through Spindle Coolant 300psi
- High Speed Side Mount 50+1 Tool Changer
- Wireless Intuitive Tool Setter and Probe (Renishaw)
- Visual Programing System, Macros
- 4th Axis Drive
- Multi Auger Conveyor System (quad side augers, belt type chip conveyor)
- Auto Doors for automation
- High Intensity Lighting
- Programable Coolant Nozzle
- Programable Air: m-code activated
- Through Tool Air Blast: m-code activated
- High Speed Machining
- Remote Jog Handle with large touchscreen display
- Chip Tray Filter Kit
- CNC Control Cabinet Cooler
- CNC Control Mist Collector
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 50 ATC
Spindle Nose to Table: 4.2" - 29.2"
Max Torque 90 ft-lbs. @ 2000 rpm
Max Weight on Table (evenly distributed) 1750 lbs.
Table Size: 52" x 18"
Dimensions: 131" x 102" x 109"
Weight: 13,500 LBS
