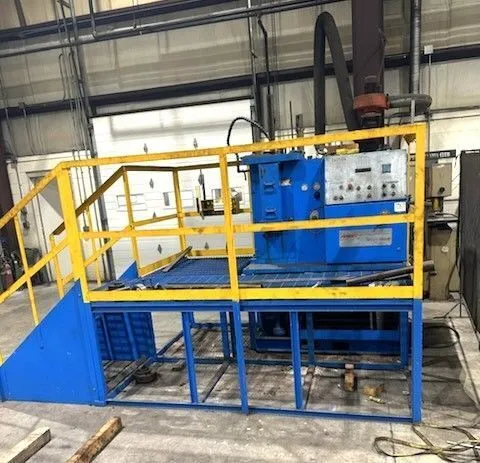

Mitts and Merrill Keyseater K2024 2" Capacity

Mitts and Merrill Keyseater K2024

Mfg. New 1991 Confirming

MAIN SPECIFICATIONS:
Keyway Width – Maximum……………….………2″
Keyway Length – Maximum…………………….24″
Cutting Speed – Maximum……………….…….30 FPM
Return Speed……………………………………….……49 Constant FPM
Crosshead Pull at 1,000 PSI…………………..8,300 Lbs.
Feed Rate Per Stroke………………………….……0.001/.010
Tolerances – Depth Repeatability…………..to .001″
H.P. Motor (Electric)………………………… ……….7-1/2
Workpiece Weight – Maximum………………..10,000 Lbs.
Workpiece Diameter – Maximum……………..Unlimited
Floor Space………………………………………………….60″ x 43″
Pit Depth…………………………………………………………38″

Mitts and Merrill Keyseater K2024 EQUIPPED WITH:
Microprocessor Control and Numerical Readout
Remote Feed Controls
Automatic Feed, Automatic Stop and Automatic Cutter Relief
Variable Cutting Speed
Quick Set-Up
Keyseater Tooling Package
Infinitely Adjustable Stroke
Automatic Centering
One Shot Lubrication System
Recirculating Cutter Coolant
Enclosed Chip Disposal System

Mitts and Merrill Keyseater K2024 TOOLING PACKAGE:
Centering Fixtures – Expansion Bushings
Full List in Process

Special Pricing Neg.
