Used 1997 CINCI GILBERT Floor Type Model CF | Horizontal Floor Type Boring Bars

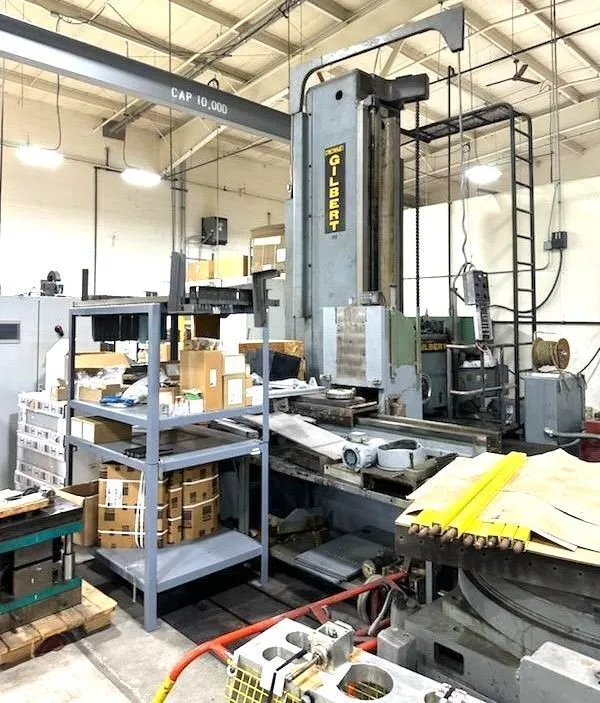

Cincinnati Gilbert Floor Type 4" Diameter Boring Bar Model CF
Mfg. New 1967 Rebuilt Refurbished 1996

Main Specifications:
Spindle Diameter 4"
Spindle Taper Cat# 50
Vertical Travel Head 108"
Horizontal Travel of Column 156"
Spindle Travel In-Out 36"
Raised Box Table T-Slotted 8 Ft. x 12 Ft.
Motor 30 HP.
Quill Feeds .0006 to.125
Spindle Speeds 8-1715 RPM's
Riser Table 4 Ft. x 10 Ft. x 30" Tall
Quill Diameter 8"

Equipped With:
Digital Readout 2 Axis Sony Magnascales
Electric 440 Volt
AC Spindle Drive
DC Rack Finish Column Drives
Bijur Lube Systems
3- Bed Ways
Power Draw Bar
Full Pendant
Column & Bed Rebuilt & Re-scraped 1996

Equipped With:
Digital Readout 2 Axis Sony Magnascales
Electric 440 Volt
AC Spindle Drive
DC Rack Finish Column Drives
Bijur Lube Systems
3- Bed Ways
Power Draw Bar
Full Pendant
Column & Bed Rebuilt & Re-scraped 1996

* Includes Optional Installed for Inspection

50" x 60" Cincinnati Gilbert Air Lift Rotary Table
Motorized Cross Sliding Travel
Cincinnati Gilbert Rotary Table
Max Cross Slide Travel 50"
3-Ways to Support Cross Travel
Air Lift Rotation with 8 Shot Pin Locations
(6) Six T-Slots on Table-Top on Rotary Table
Height of Table 36"
Weight Approx 16,000. Lbs.
