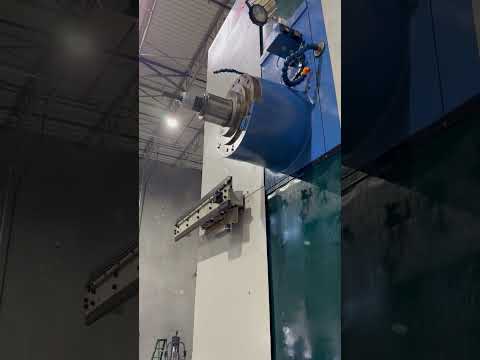

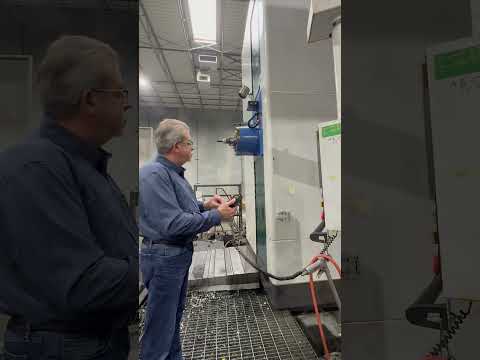

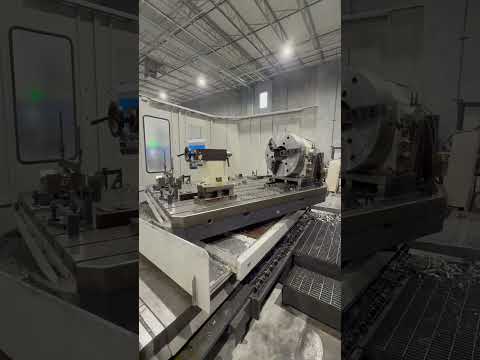

Used 2012 SNK NISSIN BHP130-3.5 | Horizontal Table Type Boring Mills

Description

2012 SNK BHP 130/3.5 CNC TABLE TYPE 4 AXIS HORIZONTAL BORING BAR FULLY INSTALLED FOR INSPECTION SHOP FLOOR LOCATION LOADED WITH ALL OPTIONS - ROTARY TABLE - TAILSTOCK
Please Email Quotation Request with Company or Contact Information Required! Thank You!

Main Specifications:
Table Size 86" x 63"
Table Load Capacity 22000 Lbs.
Spindle Diameter 5.1"

X - Axis Travel 137.8"
Y - Axis Travel 98.42"
Z - Axis Travel 62.99"
W - Axis Travel 27.55"
B - Axis Indexing .001 Degree

Spindle Speed 2500 RPM
Spindle Taper 50 CT
Main Motor 35 HP
Automatic Tool Changer 60 ATC
Tool Diameter 4.92", 9.44"
Tool Length 19.6"
Tool Weight 55 LBS.

Rapid Traverse X, Y, Z, W 314,394,394, 236 IPM
Cutting Feed Rate .01 ~ 196.85 IPM
Machine Weight 77,900 Lbs.

Equipped with
FANUC 16IMB CNC CONTROL
MARPOSS TOOL LASER
ALL BOX WAY CONSTRUCTION
SPINDLE ORIENTATION
SCALE FEEDBACK X,Y,Z, B AXIS
THERMALLY CONTROLLED HEADSTOCK
PENDANT CONTROLLED OPERATION PANEL WITH MPG
AUTOMATION SOFTWARE
HELICAL INTERPOLATION
RIGID TAPPING
W AXIS THERMAL DISPLACEMENT COMPENSATION
MP HIGH PRESSURE COOLANT THROUGH SPINDLE
ANGLE PLATE
24" 4TH AXIS ROTARY TABLE.

Special Reduced Price:......$ Please Email Request for Quotes.

Timing Opportunity.

Sincerely,
Mark Murphy
