Used 2015 HURCO TMM10I | CNC 3-Axis Turning Centers

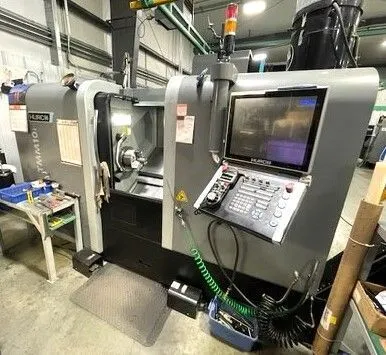

2018 Hurco Model TMM10I CNC Multi-Axis Turning Center
Swing Over Bed 22.9"
Turning Diameter, Shaft Diameter 11.6"
Machining Length 27.6"
Distance Between Centers 27.4"
Chuck Size 10" 3-Jaw
Spindle Nose A2 - 8
Spindle Bore Diameter 3.5"
Spindle Bar Capacity 3.07"
Spindle Speeds 3000 RPM
Spindle Horsepower 24 HP
X - Axis Travel 9.8"
Z - Axis Travel 29.5"
C - Axis Travel .001 DEG.
Rapid Traverse Rates X1, X2 750 IPM
Rapid Traverse Rates Z1, Z2 945 IPM
Turret Configuration 12 Station VDI
Turret Rotary Tool Spindle Speed 4000 RPM
Turret Rotary Tool Horsepower 8.5 HP
Tailstock Taper MT 4
Machine Weight 11,023 LBS.

Equipped with
CHIP CONVEYOR
10" 3-JAW HYDRAULIC CHUCK
FULL COMPLIMENT OF ROTARY AND STATIC HOLDERS
MIST COLLECT SYSTEM
TOOL PRESETTER
(6) I.D. ROTARY TOOL HOLDERS
(3) O.D ROTARY TOOL HOLDERS
HURCO WINMAX CNC CONTROL
HAND HELD REMOTE MPG
