Used 2007 KITAMURA MYTRUNNION-5 | Universal Machining Centers

2007 Kitamura My-Trunnion 5 - 5 Axis w/Fanuc 16i-MB Controls, 50 Position Automatic Tool Changer, 20,000 Rpm Spindle, 24" 4-jaw Rotary Chuck, Heavy Duty Taper Milling will All Box Way Construction & Rigidity This Japan Quality Constructed Machine With Great USA Factory & Local Dealer Network Machine.

* New Listing & Videos in Process.!.

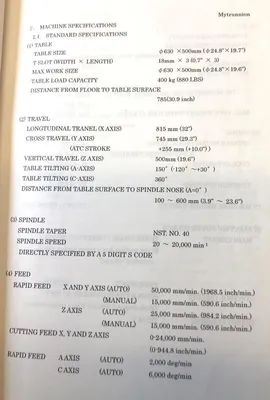

Main Specifications
Table Length 24.8 "
Table Width 19.7 "
CNC 5-Axis Mach Center Full Capabilities Design

MyTrunnion 5
FANUC 16i-MB
Cat 50 Spindle taper
Spindle speed range 20 ~ 20,000 rpm
Spindle motor power 20 hp
ATC 50 Tool
Max longitudinal cutting feed (X-Axis) 1,968 "/min
Max transversal cutting feed (Y-Axis) 1,968 "/min
Max vertical ram cutting feed (Z-Axis) 984 "/min
X-Axis travel 32.3 "
Y-Axis travel 29.3 "
Z-Axis travel (Ram Stroke) 19.6 "
Machine Weight 38,000 Lbs

Special Features Specifications:
A Axis: 150° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Max Weight on Table: 880 lbs
T-Slot : 0.7″ X 3 Slots
Table to Spindle Nose: 3.9″ – 23.6″
Rapid A : 2000 Degree Per Minute
Rapid C : 6000 Degree Per Minute
Cutting Feedrate: 984 Inch Per Minute
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
Glass Scales on the Axis's
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light

Fully Installed and under power for inspection

Special Offered Price..... $ Please Email Request

Sincerely,
Mark Murphy
