Used 2002 JOHNFORD ST-130A | CNC Lathes

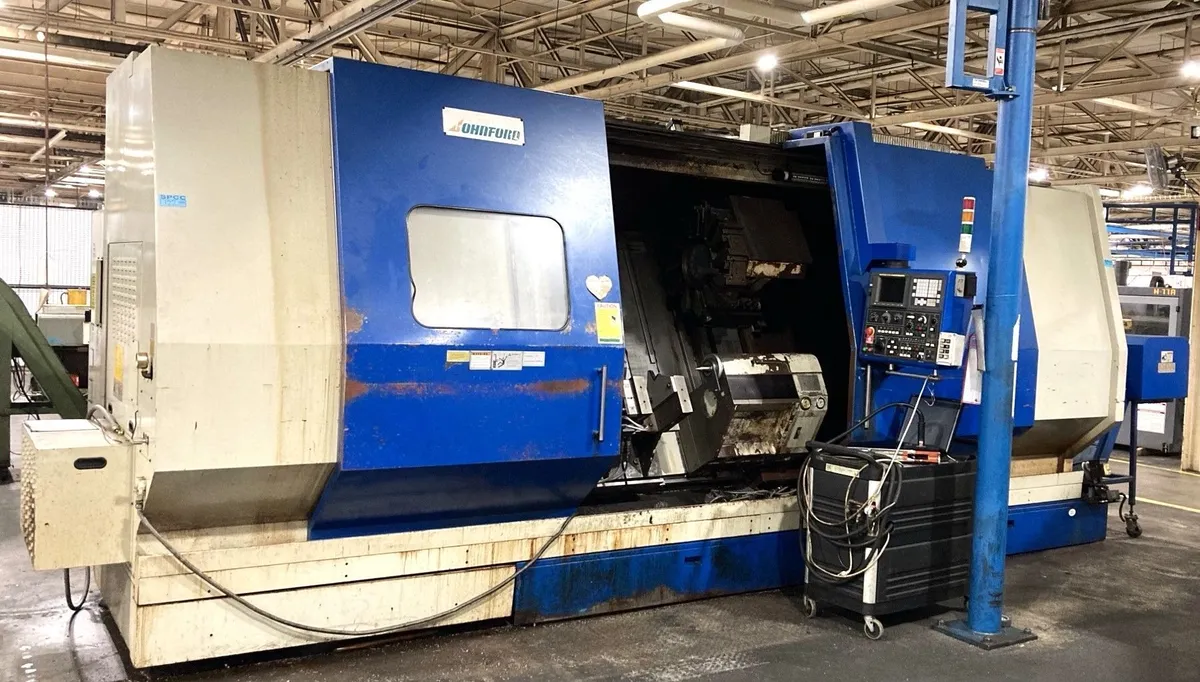

2002 JOHNFORD ST-130 CNC HEAVY DUTY LARGE CAPACITY CNC UNIVERSAL TURNING CENTER.

EQUIPPED WITH INSTALLED PROGRAMMABLE CNC STEADY REST 30K NEW COSTS ADDED VALUE>. * (1) Machine Available.

* This Machine can Really be Cleaned in Work area is Original Operation Ran Stainless Shaft Only from Shop Condition.

Swing over bed/Front cover 36.2"
Standard turning diameter 27.5"
Swing over carriage 27.5"
Maximum cross travel (X axis) 15.7"
Maximum longitudinal travel (Z axis) 120"
Distance between centers 130”

Spindle:
Spindle Motor 50 HP
Spindle nose A2-11
Spindle RPM 0-3000 (12” Chuck)
Hole through spindle 4.5"
Bar Capacity 4.1”
Spindle bearing diameter 6.3"
Spindle inside taper M.T. 7
Hydraulic chuck 12” 3-Jaw
Turret tool positions 12

Tailstock:
Quill diameter of tailstock 7.87
Quill stroke of tailstock 5.9
Quill taper of tailstock M.T. 7
Tailstock body travel 110”
Hydraulic, programmable tailstock body and quill
Fanuc 18T control

Special Price: $Please Email Request for Quotations.

FOB: Michigan USA Shop

TERMS: Payment in Full Prior to Shipment
