Used 2004 MAKINO U86 | Wire EDM
Have one to sell?
$25,000.00 USD
ConditionUsed
1 available

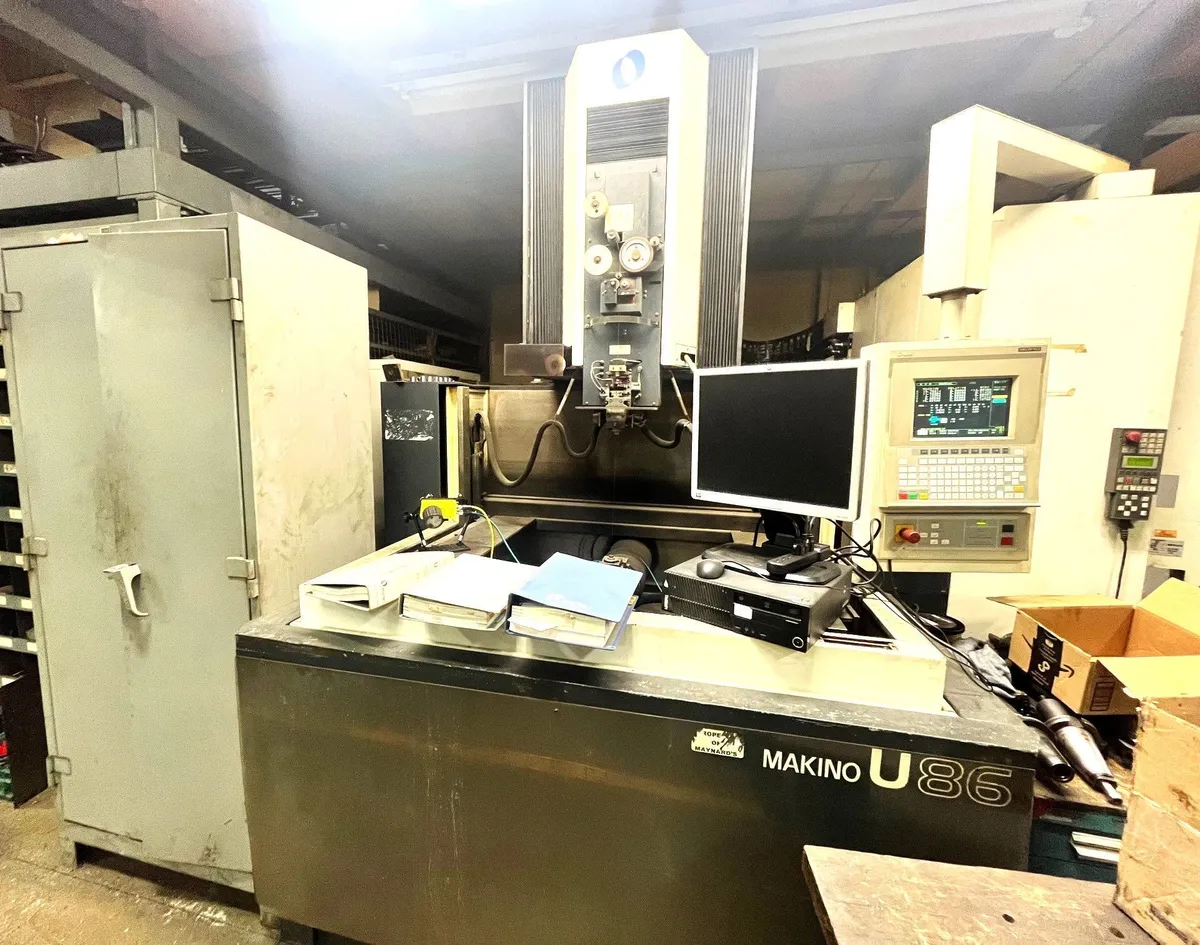

2004 MAKINO U86 CNC WIRE EDM * Special Reduced Shop Moving Sale Pricing.
Main Specifications:
Max. Part Size48" X 36" x 13"
Work Tank55" X 38" x 22.4" (L x D x H)
Table 48" X 35.8"
Max Part Weight 6,614 Lbs.
Wire Diameter 0.012"
Wire Max Operation Thickness20.47"
Number of Axes5
X Travel 31.5"
Wire Max Wire Spool Weight 66 lbs
Y Travel 23.62"
Max Taper Angle 15 Degree
Z Travel 20.47"
Min Hole Diameter 0.0550"
U Travel +-3.98"
V Travel +-3.98"
Machine L x W x H 147" x 116" x 110"
Machine Weight 21,164 Lbs.
Options:
Auto Rethreading
High pressure Coolant pump
Chiller Unit
Transformer
All Available Assorted Tooling
2004 MAKINO CNC U86 WIRE EDM
Max. Part Size 48" X 36" x 13"
Work Tank 55" X 38" x 22.4" (L x D x H)
Table 48" X 35.8"
Max Part Weight 6,614 lbs
Wire Diameter 0.012"
Wire Max Operation Thickness 20.47"
Number of Axes 5
X Travel31.5"
Wire Max Wire Spool Weight 66 lbs.
Y Travel 23.62"
Max Taper Angle 15 deg
Z Travel 20.47"
Min Hole Diameter 0.0550"
U Travel +-3.98"
V Travel +-3.98"
Machine L x W x H147" x 116" x 110"
Machine Weight 21,164 lbs.
Auto Rethreading
High pressure Coolant pump
Chiller Unit
Transformer
Assorted tooling
