Used 2021 EUROTECH TA-20-YS-640 | 5-Axis or More CNC Lathes

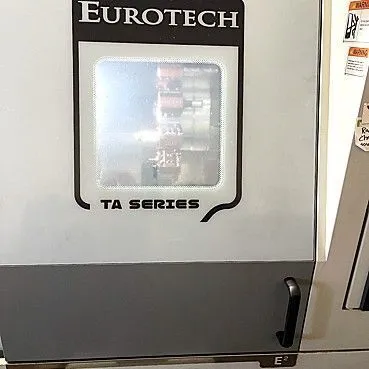

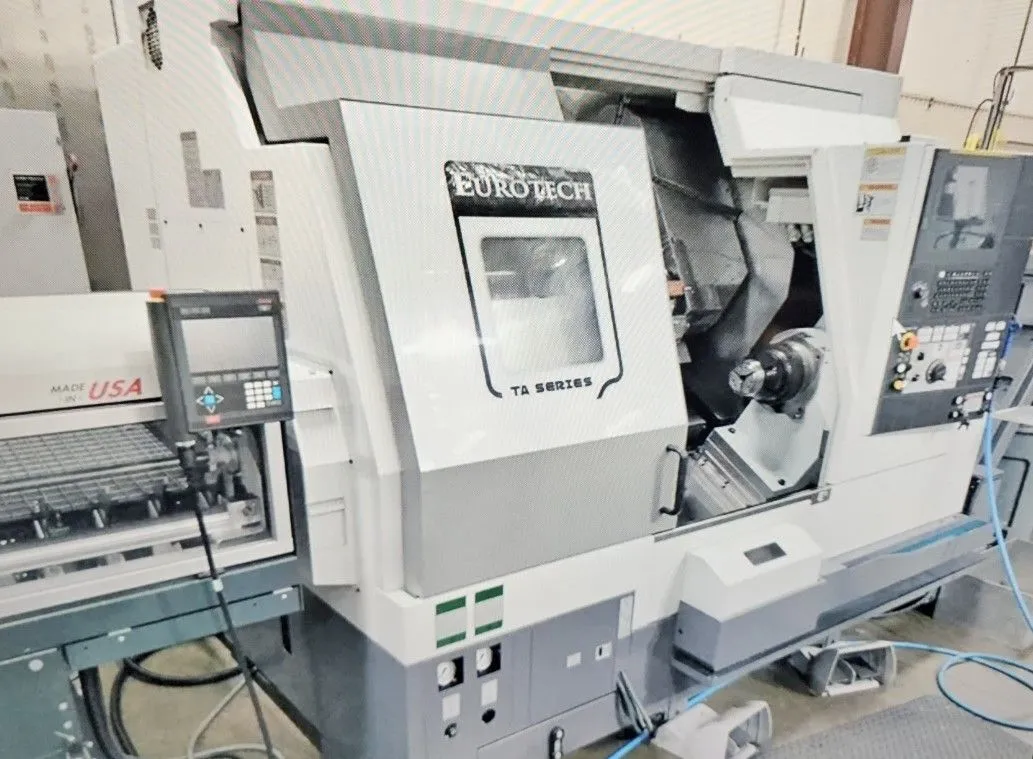

2021 EUROTECH TA-20-YS-640 CNC Twin Spindle C & Y Axis Multi-Axis Turning Center

General Specifications:
Swing Over Bed: 29.92"
Swing Over Slides: 23.62"
Turning Diameter: 18.11"
Distance Between Center of Spindles: 25.55"
X-Axis Travel: 12.2"
Z-Axis Travel: 25.2"
Y-Axis Travel: -1.97" / +2.76"
B-Axis Travel: 25.2"
Feed rates (X,Z,B) 1181 IPM

Main Spindle
Spindle Speed: 4,000 RPM
Bearing Diameter (Inside/Outside): 4.33" / 6.69"
Spindle Nose: ASA 6" A2
Spindle Inside Diameter: 2.87"
Bar Diameter: 2.6"
Chuck Diameter: 8.27"
Chuck Bore: 2.6"
Spindle Power (Max/40%): 29.5 / 20.1 HP
Turning Torque: 269.9 Lb.ft

Sub-Spindle
Spindle Speed: 4,500 RPM
Bearing Diameter (Inside/Outside): 3.94" / 5.9"
Spindle Nose: ASA 6" A2
Spindle Inside Diameter: 2.4"
Bar Diameter: 2.4"
Chuck Diameter: 6.89"
Chuck Bore: 2.2"
Spindle Power (Max/40%): 18.8 / 10.7 HP
Turning Torque (Max/40%): 215/113 Lb.ft

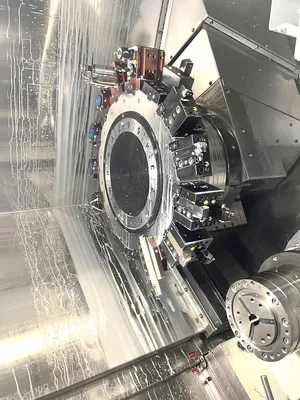

Turret
Tool Positions: 15
Section of Tools: 25 x 25

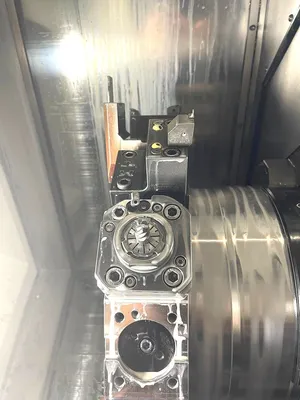

Driven Tools
Number of Tools: 12
Tool Speed: 12,000 RPM
Tool Power: 15.2 HP
Torque: 55.3 Lbs ft.

Machine Dimensions: 100" x 69" x 83"
Machine Weight: 16,534 Lbs
Loaded with all Options
Power on Hours: 1,190
Runtime: 273
Cutting: 153
Description

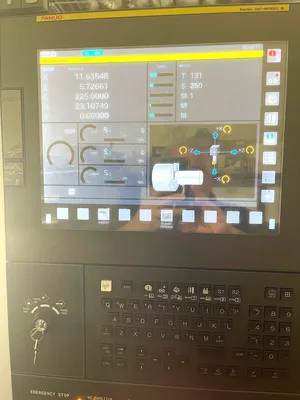

2021 Eurotech TA-20-YS-640/Fanuc 32iTB with 15 " touch screen and new iHMI
CNC Control Optional

Machines Include Many Options and 60 Pcs Tooling Package
as Optional accessories with TA series
G codes type A in Fanuc control
Machine Manuals in pdf format available for download in
N-55 15 position turret
Standard hydraulic cylinder in main spindle (TA20 Autoblok VNK 150-67)
Air blow over main spindle
Removable tool presetter
Side exit chip conveyor for Z=640 bed (standard type)
Machine status indicator light
Tool life management function
Tool load monitoring function
High pressure coolant pump (6 bar)
High pressure coolant pumps (6 bar + 15 bar)
Coolant filter 250μm with scraper type cleaning system
Pneumatic, automatic, programmable parts catcher with conveyor
Barfeed interface - Unimag
Parts ejector for subspindle (Pneumatic type) with adjustable stroke of 100mm
Coolant through subspindle
Optional tool holders

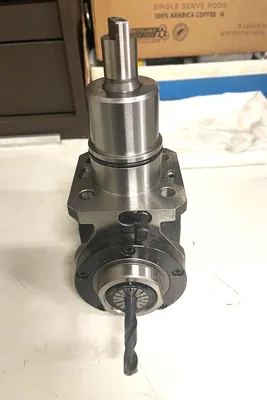

TTL/10400/02 Axial driven toolholder ER32 with internal coolant 70bar (12000rpm)
TTL/10400/05 Radial driven toolholder ER32 (12000rpm)
Wrench for ER16 ring nut (330.12.0634)
Wrench for ER32 ring nut (330.12.0637)
Max diameter of swinging over bed: 760 mm
Max diameter of swinging over slides: 600 mm
Max turning diameter: 460 mm
Distance between center of spindles: 625 mm
X- axis travel: 310 mm
Z-axis travel: 640 mm
Y-axis travel: +70 -50
B-axis travel: 640 mm
Max speed: 3500 rpm
Bearing outside diameter: 200 mm
Bearing inside diameter: 130 mm
Spindle nose inside diameter: 91 mm
Draw tube bore: 82 mm
Chuck diameter: 255 / 315 mm
Chuck bore: 82 mm
Turning torque: 1020 Nm max
Number of positions on turret: 14 Section on tools: 25x25 mm
Max speed sub spindle: 4500 rpm

LNS QUICKLOAD SERVO 3+ BARFEEDER – 4FT
TRANSFORMER 51KVA

Machine Control Hours:
Power on 1190 hrs
Runtime 273 hrs
Cutting 153 hrs

Full tooling package is Available Neg. With Machine Document Attached.
