Used 2005 OKUMA & HOWA 2SP-V80R-L | Vertical Boring Mills (incld VTL)

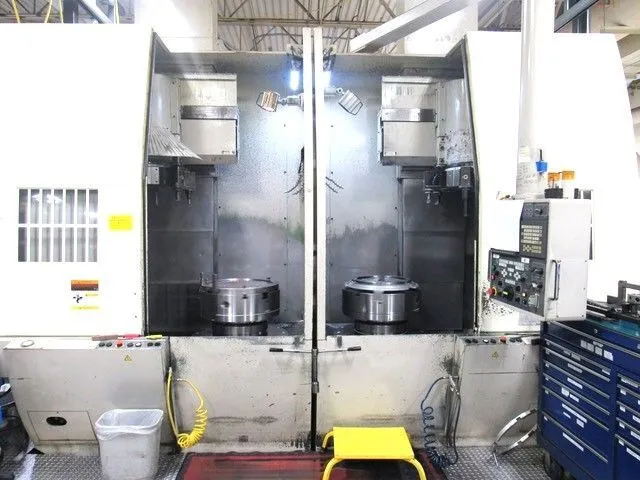

Murphy Machinery Sales, Inc. is pleased to offer (1) 2005 Okuma & Howa 2SP-V80's Twin Spindle Vertical Turning Center in Very Good Condition with Rohm (2) 24" 3-Jaw Gear Locking Scroll Chucks, (2) Rear Discharge Chip Conveyors (2) Auto Doors and (2) 40 Hp. Direct Drive High-Low Spindle Drive Motors!

Okuma & Howa Factory Main Specifications:

Max. Cutting Diameter 31.50" - 39.9"
Max. Swing Diameter 39.37"
Max. Cutting Length 33.07"
Spindle Center Height From Floor 45.28"

Spindle
Spindle Motor (FANUC aP60) 40 HP High Low Spindle Drive Motors!
Spindle Speed Range 10 - 1,250 RPM
Chuck Diameter (2) Rohm 24" 3 Jaw Gear Locking Wide Range Scroll Chucks

* Optional Work holding Cap. 24" 28", 36" New 3-Jaw Vertical Application Power Chuck Quotes Ready on Request as Options with Discounts.!

Spindle Nose A2-11
Front Bearing Diameter 7.87"
Max. Weight on Spindle 1,764 lbs. (must include chuck, parts and jaws)
Spindle Bearings Double Row Cylindrical and Angular Contact
Spindle Speed Selection Direct RPM Programming 2-Speed High-Low Range
Spindle Speed Override 50% - 200%
Speed Range Shift Programmable High-Low Range

Axis Drives
X Axis Travel (FANUC a22/3000i AC 4.0 HP) 18.31"
Z Axis Travel (FANUC a22/3000iB AC 5.0 HP) 33.07"
X Axis Thrust Force 2,950 lbs.
Z Axis Thrust Force 3,170 lbs.
X Axis Ball screw Diameter/Pitch 1.57"/ 0.47"
Z Axis Ball screw Diameter/Pitch 1.97"/ 0.47"
X & Z Axis Rapid Traverse Rate 630 IPM
Feed rates 0.00001 - 18.18 IPR
Feed rate Override 0 - 200%
Cooling System for Ball screws (to minimize expansion) Forced Oil

Turret
Turret Type (2) V12 Station
Max. Number of Tools (2) 12 Station Turrets
Curvic Coupling Diameter 11.42"
Clamping Force 12,590 lbs.
Indexing Time (station to station) 0.7 sec
Standard Turning Tool Size 1.25" x 1.25"
Max. Boring Bar Size 2.0" & 2.5"

Machine Electric 85 KVA (200v) Transformers
Hydraulic Motor AC 1.5 Kw
Slide way Lubrication Pump Motor AC 20w
Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm) AC 550w
Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm) AC 620w
Machine Light AC 100v-20w

Reservoirs:

Hydraulic Tank 10.6 gal
Slideway Lubrication Tank 1.59 gal
Coolant Tank 118 gal

Machine:
Height 13.3' (160.0")

Floor Space Requirement 8.0' x 9.0' (96.0" x 108.0")
Weight 50,600 lbs.
Automatic Open/Close Splash Guard Chip Conveyor Both Machines (Rear Discharge)
Chuck Cylinders – Chuck Open/Close Direction Change (key switch)
One Color Signal Tower Chuck Open/Close (Push Button)
Cycle Completion Alarm & Light Door Interlock
High Pressure Coolant (57 psi) Mounting Plates and Leveling Screws
Multi-tap Transformer Tool/Work Counter on Screen
Spindle Orientation High Pressure Coolant 120 psi

All Ways are induction hardened to Rockwell C55. All Ways are ‘Box’ for maximum rigidity and strength.
Okuma machines use a design that allows the Z-Axis drive to be mounted to the bed of the machine.
This design guarantees perfect alignment of turret to spindle and increases the rigidity of the Z-Axis itself.

Special Offered Timing Price Machine with (2) 24" 3 Jaw Gear Locking Chucks With All Options!

Includes:
2- 24" 3-Jaw Gear Locking Scroll Chucks Installed on Machine.
2- Rear Discharge Lift-Up Chip Conveyors Chain Type
2-Auto Doors Each Side of Machine
Coolant Tanks and all Pumps
2- QTS Quick Tool Setters are Built in Z-Axis Guarding Optional

TERMS: Machine Payment in Full Prior to Shipment.
F.O.B: Rigging is Required to Prep & Load Machines in Plant.
Delivery: Available Immediate, Subject to Prior Sale.

I thank you for your review and consideration and look forward to reviewing your questions and interest on this Okuma & Howa 2SP-V80 Twin-Spindle Opportunity with All Options and Machine Checked out in

Perfect Operating Condition on Spindles & Axis's. Ran 99% Aluminum Aerospace short run Components.

I thank you for your review and consideration and reviewing questions at your best timing.

Sincerely,
Mark Murphy
Murphy Machinery

Office: 262-534-4124
Mobile: 414-520-0843
Email: markmurphy@murphymachinery.com
