2015 JOHNFORD ST-40HX CNC LATHE 14.5" BIG BORE TURNING CENTER WITH FRONT REAR 32" CHUCKS
Have one to sell?
ConditionUsed
1 available

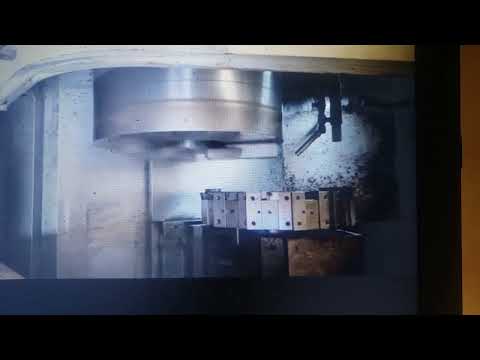

2015 Johnford ST-40-HX in shop under power 14.375" Thru Hole with
Important Installed 32" Chucks with 14" Thru Hole Work holding.
This is Late Model 2015 Machine Fanuc 0iTD Series i CNC Control
with Good Parts & Service by Johnford Machine Tools Located in Ohio.
2015 JOHNFORD ST-40HX CNC LATHE 14.5" BIG BORE TURNING CENTER
Main Specifications:
Bar Capacity: 14"
Bore Size: 14.375"
Spindle Motor: 49 HP
X Axis Travel: 16.53"
Z Axis Travel: 31.49"
Turret Tools: 12 Station
2- 32" SMW Big Bore chucks
Front Spindle Nose: A2-20
Rear Spindle Nose: A2-20 Adapter
Rapid Traverse: X: 12; Z: 16 m/min
Servo Motor (X-Axis): 9.38 HP
Servo Motor (Z-AXIS): 9.38 HP
Dimensions: 226.29" x 96" x 116"
Weight: 25,500 LBS
Equipped With:
Fanuc Series Oi-TD Series i Electronics with Liquid Crystal Screen
Side Discharge Chip Conveyor
32" Diameter 14" Thru-Hole Big Bore Front & Rear Chucks Installed.
Special Reduced Timing Price:......$ Please Email Quote Request
I thank you for the opportunity to quote and please email any questions
or project timing status.
Sincerely,
Mark Murphy
Murphy Machinery
Murphy Machinery
Office Phone: 262-534-4124
Mobile Phone: 414-520-0843
Email: markmurphy@murphymachinery.com
Web Site: murphymachinery.com
