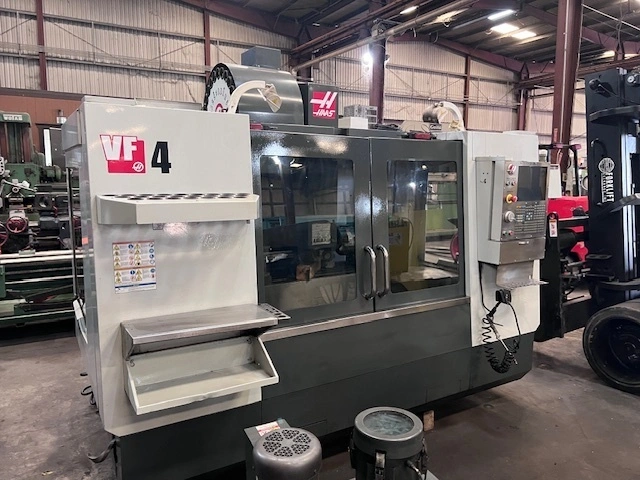

HAAS VF-4 CNC VMC HRT-310 CNC ROTARY TABLE WITH CHUCK & TAILSTOCK

2014 Hass VF4 CNC Vertical Machining Center with Haas HRT-310 Installed Rotary Table Currently Fully Cleaned & Installed in Stock * This machine ran aluminum parts

Equipped With:
Hass CNC Rotary Full Forth Axis Rotary Table & Tail stock.
High Pressure Thru Spindle Coolant with Haas Tank System.
This Machine has Important Arm Type Automatic Tool Changer.
New Haas Spindle Bearings Cartridge Replaced 1Year Ago!

Main Specifications:
X Axis Travel: 50"
Y Axis Travel: 20"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 3,500 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40 CT
Tool Changer: 24 Plus 1 ATC SIDE MOUNT
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Cutting: 650 ipm
Max Torque: 90 ft-lbf
Spindle Nose: 4.2" - 29.2"
Drive System: Inline Direct-Drive
Tool-to-Tool: 4.2 sec change
Coolant Capacity: 55 gal
Table Size: 52" x 18"
Weight: 13,300 LBS

Equipped With:
HAAS HRT 310 4TH AXIS ROTARY
With LMC 10” 3 Jaw Chuck
ARM TYPE ATC
Haas Tailstock
Pre Wired 4th Axis Option
HAAS 1000 PSI Through Spindle Coolant
Programmable Coolant
Chip Auger
High Intensity Lighting
Cabinet Air Conditioning

Under Power in Stock Ready for Inspections
Machine in Excellent Running Condition
New Full Operation Videos in Process

Special Price: ..................................$ Please Email Requests.

www.transferbigfiles.com
(2) Haas VF4 Machine Axis Travels Operation Video Link +

High Pressure Thru Spindle Coolant Operation Video Link!
http://tbf.me/a/CE6UcO
